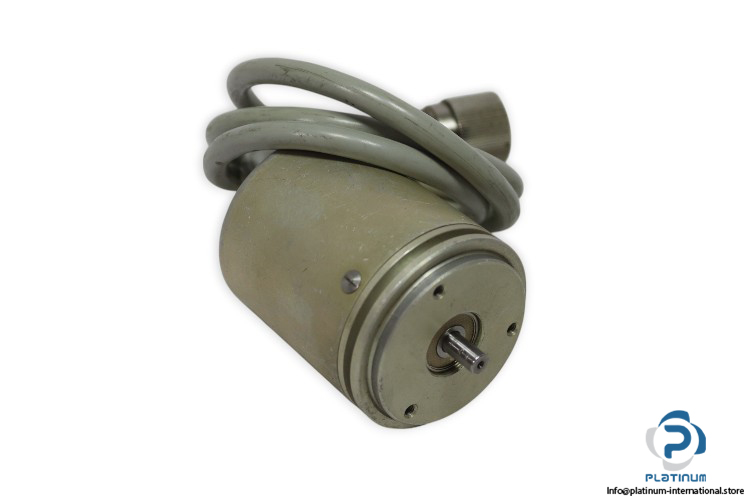

HEIDENHAIN ROD 426 500 C5 ROTARY ENCODER

The HEIDENHAIN ROD 426 500 C5 Rotary Encoder is a high-performance motion control component designed for precision feedback in demanding industrial environments. With robust mechanical design, high-speed operation, and IP67 protection, it ensures reliable performance in harsh conditions.

Manufacturer: HEIDENHAIN
Type: Rotary Encoder

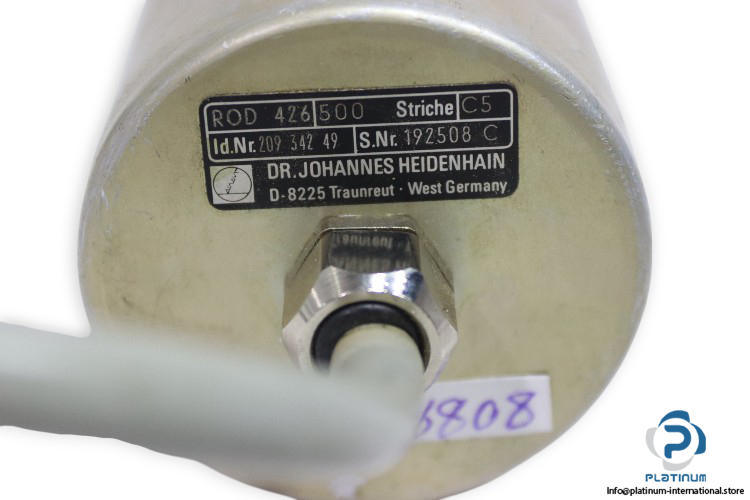

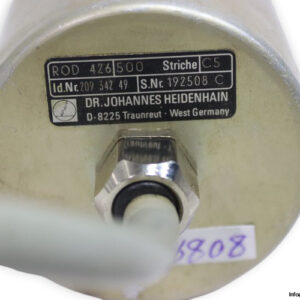

Model: ROD 426 500 C5
Part No.: 209 342 49

Technical Information

• Shaft Diameter: 6 mm
• Voltage Supply: 5V DC
• Current Consumption (No Load): 120 mA
• Electrical Connection:

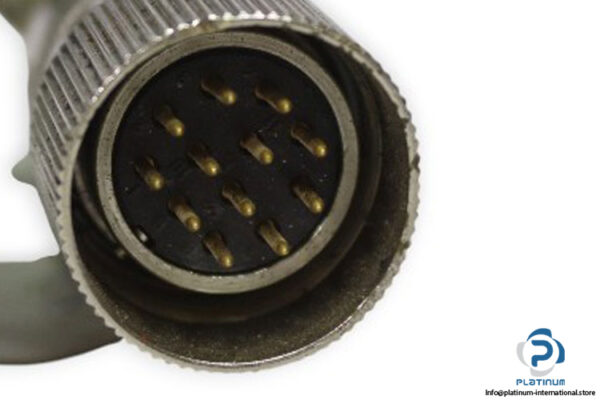

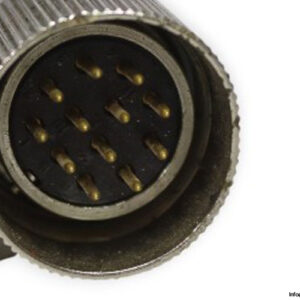

  • Flange socket M23, radial and axial
  • Cable 1 m/5 m, with or without M23 coupling
• Mechanical Permissible Speed (n): 16000 rpm
• Starting Torque: 0.01 Nm (at 20 °C)
• Degree of Protection: IP67
• Operating Temperature:
  • Flange socket or fixed cable: -40 / 100 °C
  • Moving cable: -10 / 100 °C
