Manufacturer: Heidolph Elektro Gmbh , Co Kg

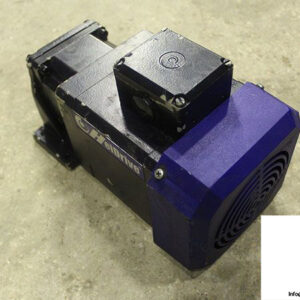

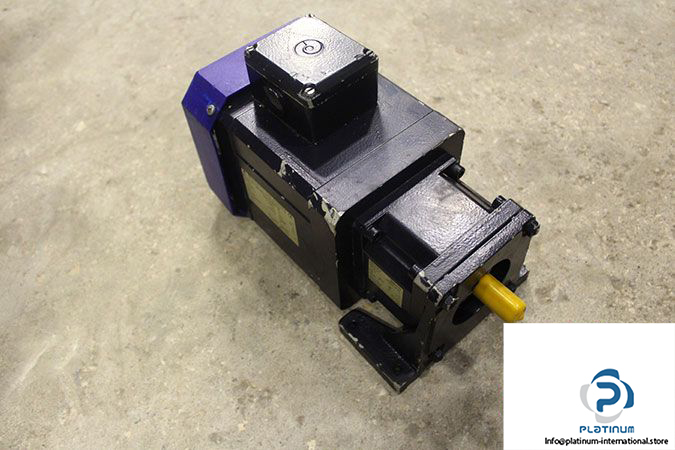

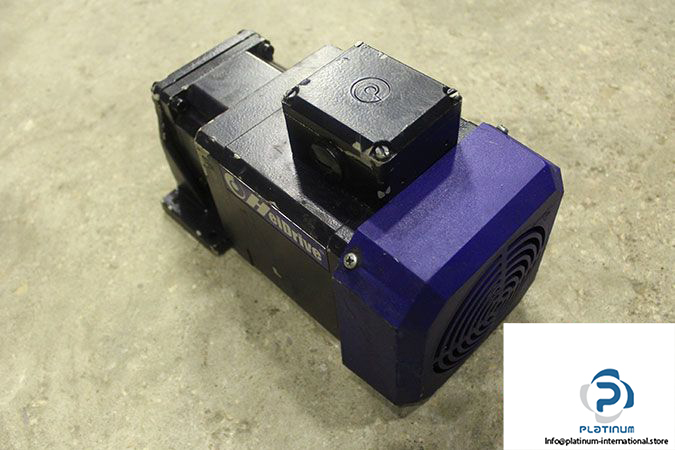

Type: Spur Gear Motor

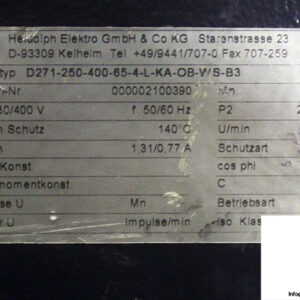

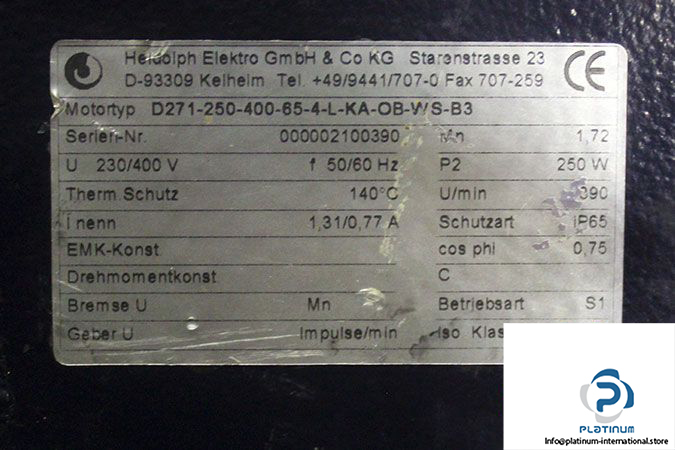

Model: D271-250-400-65-4-L-KA-OB-WS-B3

Rated Voltage 50Hz [V]: 230

Rated Current [A]: 1.31

Rated Voltage 60Hz [V]: 400

Rated Current [A]: 0.77

Thermal Protection [°C]: 140

Rated Power [W]: 250

Rated Torque [Nm]: 1.72

Speed Motor [rpm]: 390

Degree of Protection [IP]: 65

Power Factor: 0.75

Thermal Class: F

Duty: S1

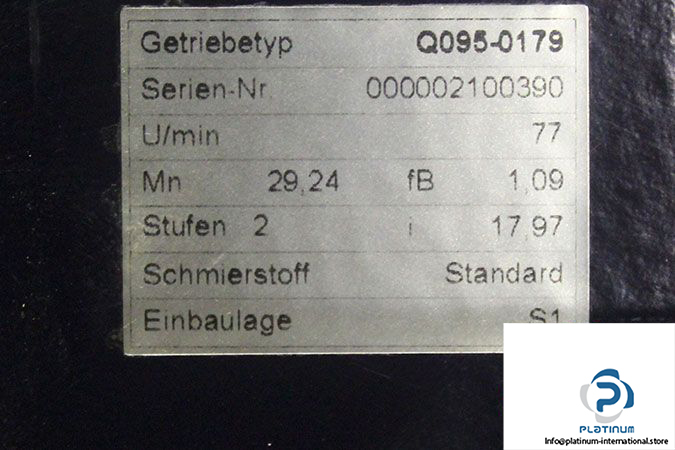

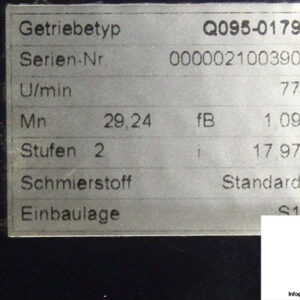

Gear Type: Q095-0179

Ratio: 17.97

Rated Speed [rpm]: 77

Rated Torque [Nm]: 29.24

Stage: 2

Duty: S1

Weight [kg]: 8.6
