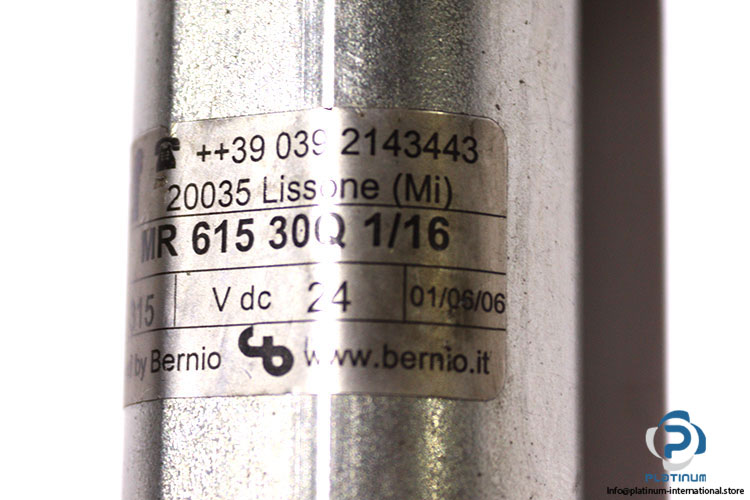

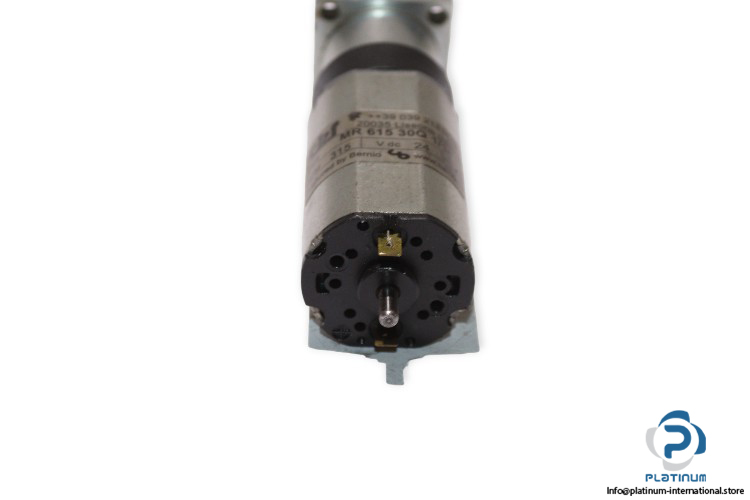

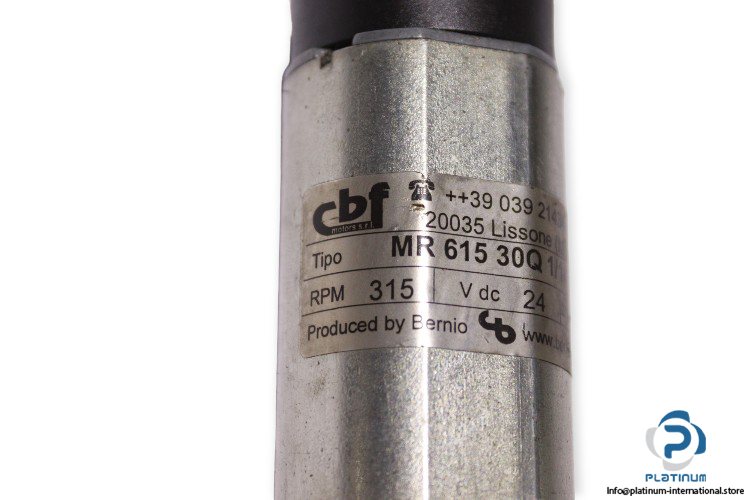

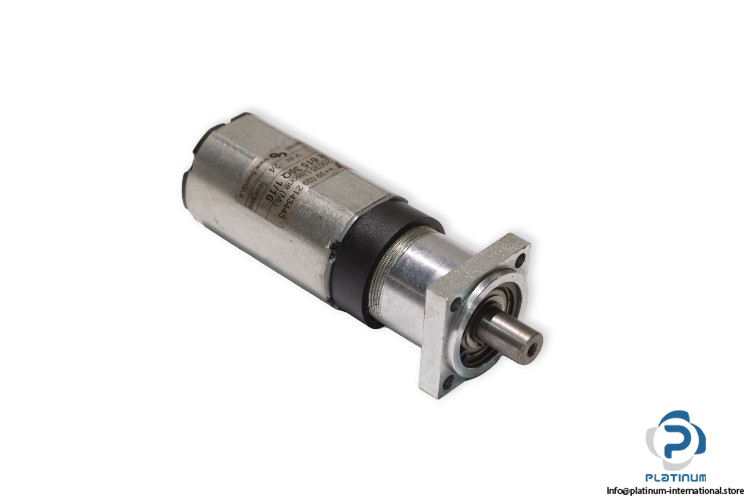

CBF MR 615 30Q 1/16 Gear Motor

Manufacturer: CBF Bernio
Type: Gear Motor
Model: MR 615 30Q 1/16

Rated Voltage: 24 VDC
Stall Current: 5.4 A
Current (S1): 1 A
Current (S2): 1.7 A
Ratio: 16
Speed (No Load): 315 min^-1
Speed (S1): 260 min^-1
Speed (S2): 221 min^-1
Max torque: 3.1 Nm
torque (S1): 0.51 Nm
torque (S2): 0.88 Nm
Length: 101 mm
