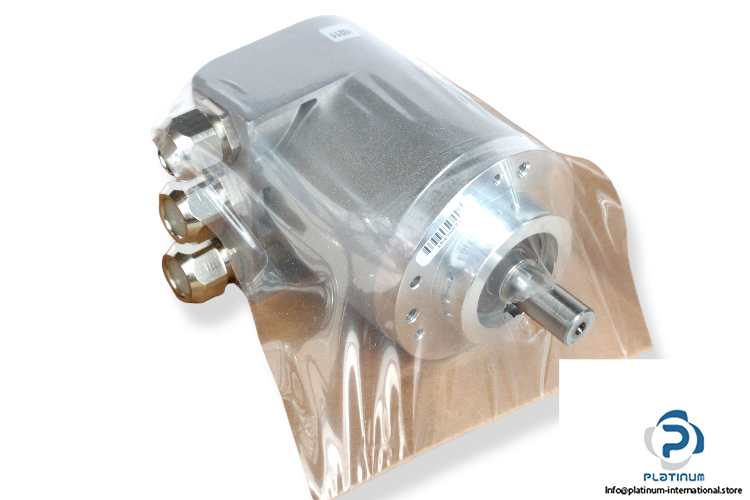

HENGSTLER AC58/1213EK.42DPZ ABSOLUTE ENCODER

The Hengstler AC58/1213EK.42DPZ is a high-resolution absolute encoder built for precision feedback in demanding industrial automation environments. With EtherCAT interface and rugged stainless steel shaft, it ensures reliable performance even in extreme conditions.

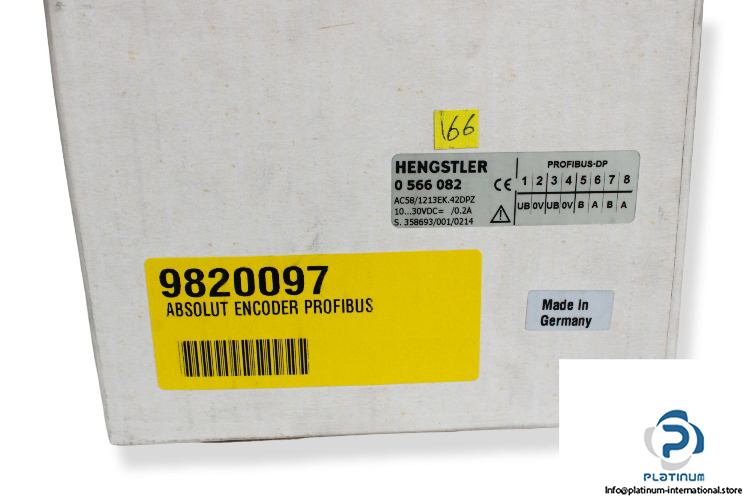

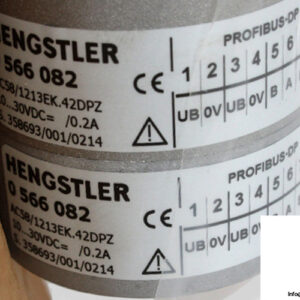

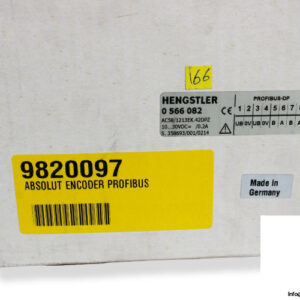

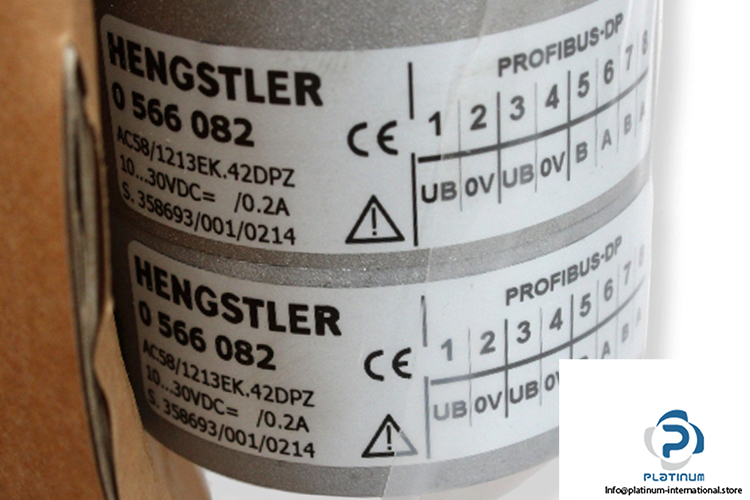

Manufacturer: Hengstler
Type: Absolute Encoder
Model: AC58/1213EK.42DPZ
Part No.: 0566082
S No.: 358693/001/0214
Ref No.: 9820097

Technical Information

• Supply Voltage: 10 / 30 VDC
• Current: 0.2 A
• Flange Type: Clamping flange
• Shaft Type: Solid Shaft
• Shaft Diameter: 10 mm
• Resolution: 13 Bit ST
• Cycle Time: 62.5 μs min
• Material Shaft: Stainless Steel
• Output Code: Binary
• Interface: EtherCAT
• Connection Type: Bus cover with 3x M12 connectors Profibus
• Operating Speed (Max): 10,000 rpm
• Protection Class: IP65
• Operating Temperature: -40 / +85°C
