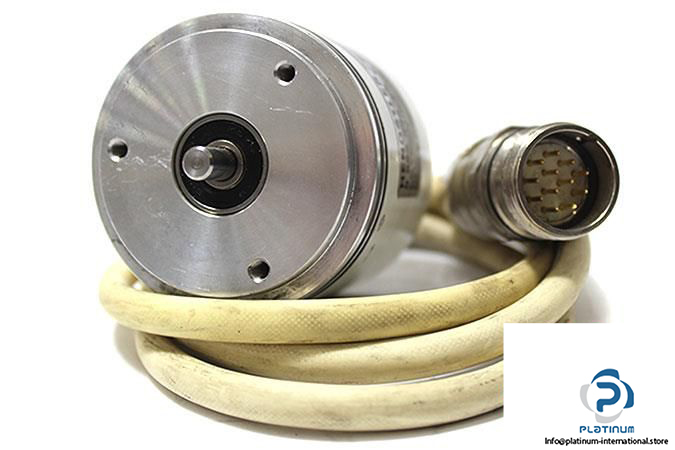

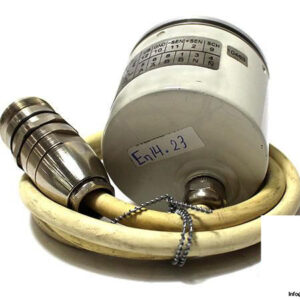

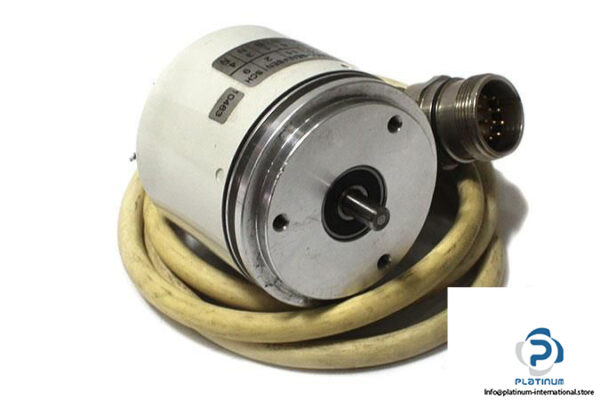

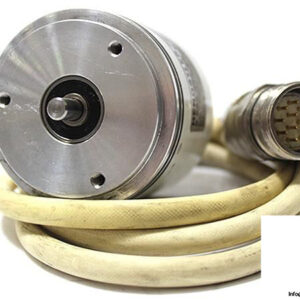

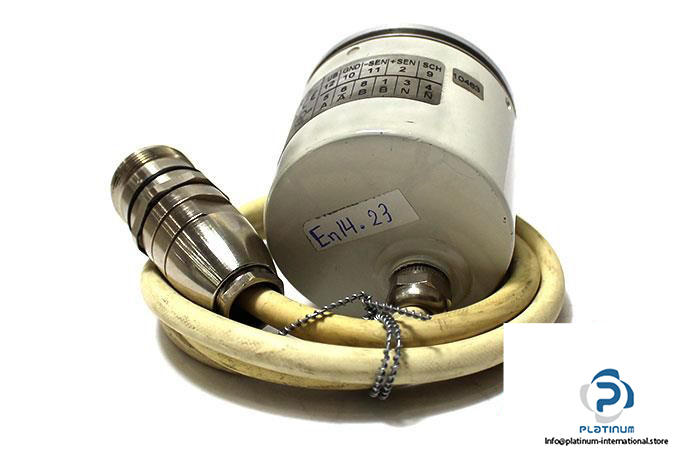

HENGSTLER RI58-O/500AS.41TE-D INCREMENTAL ENCODER

The HENGSTLER RI58-O/500AS.41TE-D is a high-performance incremental encoder engineered for precision motion control in industrial environments. With robust construction and advanced output circuitry, it ensures reliable operation in demanding conditions.

Manufacturer: HENGSTLER
Type: Incremental Encoder
Model: RI58-O/500AS.41TE-D

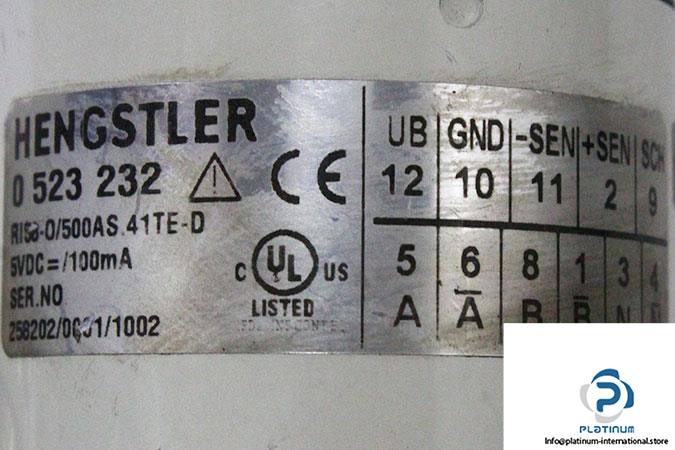

Serial No.: 258202/0001/1002
Part No.: 0523232

Technical Information

• Flange Type: Synchro Flange
• Shaft Type: Solid Shaft
• Shaft Diameter: 6 mm
• Resolution: 500 pulses per revolution (PPR)
• Voltage Supply: 10 – 30 VDC
• Output Circuits: RS 422 + Sense
• Material Housing: Aluminum
• Output Frequency: 0 / 100 KHz
• Connection Type: TPE Cable, Axial
• Protection Class: IP65/IP64
• Temperature Range: -10 / 70 °C
