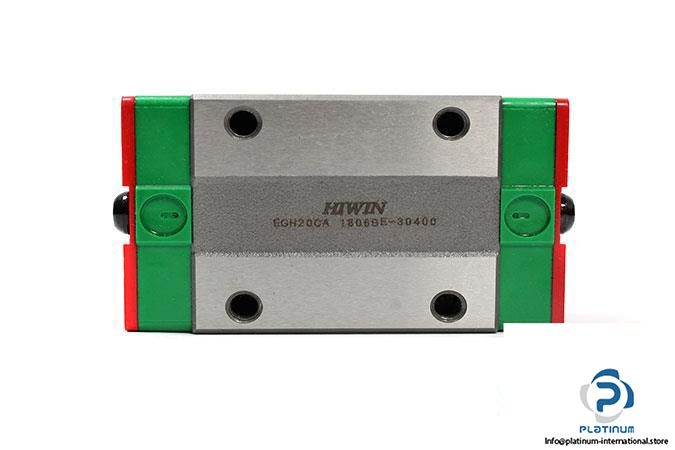

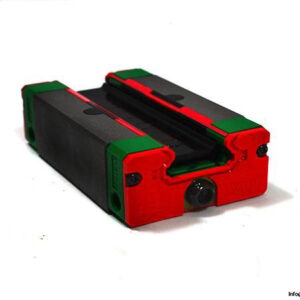

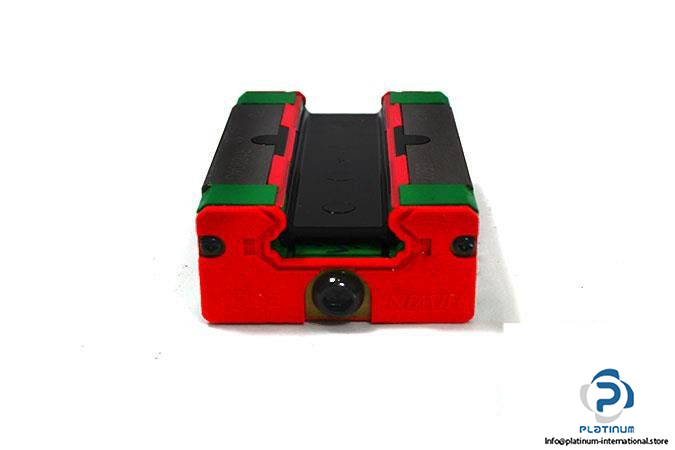

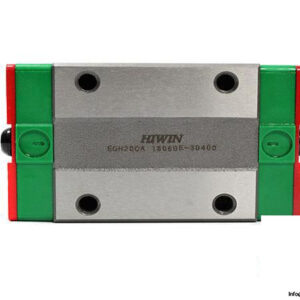

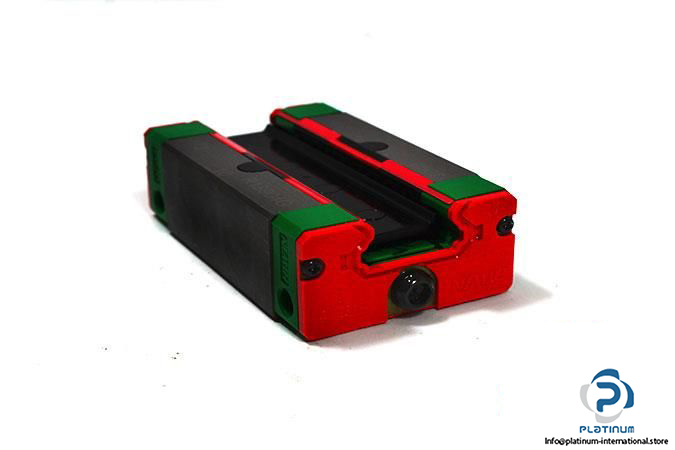

HIWIN EGH 20CA 18000E-80400 LINEAR GUIDEWAY BLOCK

Precision-engineered for high-load and smooth linear motion, this Hiwin EGH 20CA square-type linear guideway block is built for demanding industrial applications. With top mounting design, it offers high rigidity and optimal support in compact automation systems.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGH 20CA 18000E-80400

Technical Information

• Size: 20 mm
• Block Height (H): 22 mm
• Block Width (W): 42 mm
• Block Length (L): 69.1 mm
• System Height: 28 mm
• Distances Between Holes: 32, 32 mm
• Rail Width: 20 mm
• Rail Height: 15.5 mm
• Thread Size: M5 x16
• Block Type: Square
• Load Type: Heavy Load
• Block Mounting Type: From Top
• Basic Dynamic Load Rating (C): 10.31 kN
• Basic Static Load Rating (C‚): 21.13 kN
