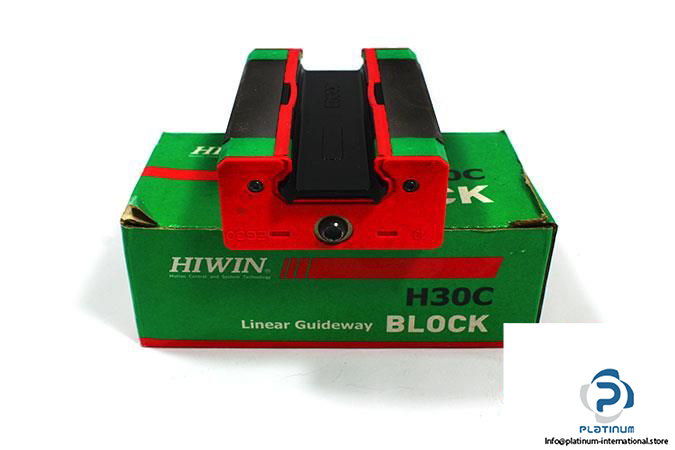

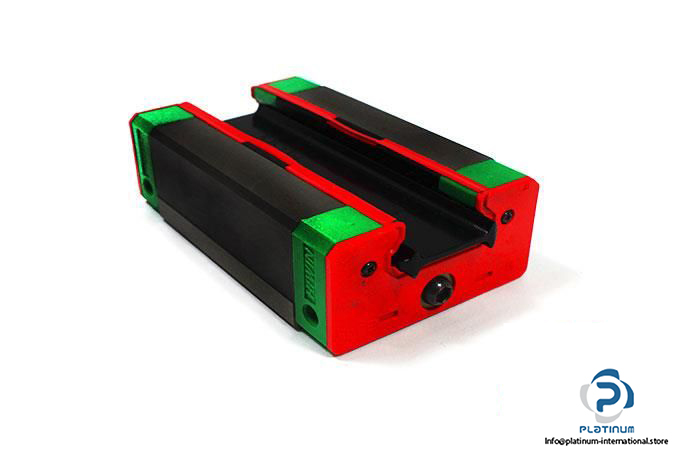

HIWIN EGH30CA LINEAR GUIDEWAY BLOCK

Engineered for heavy-duty linear motion, the Hiwin EGH30CA guideway block delivers high load capacity and precise alignment. Designed with a square profile and top-mounting configuration, it is ideal for demanding automation and machinery applications.

Manufacturer: Hiwin
Type: Linear Guideway Block

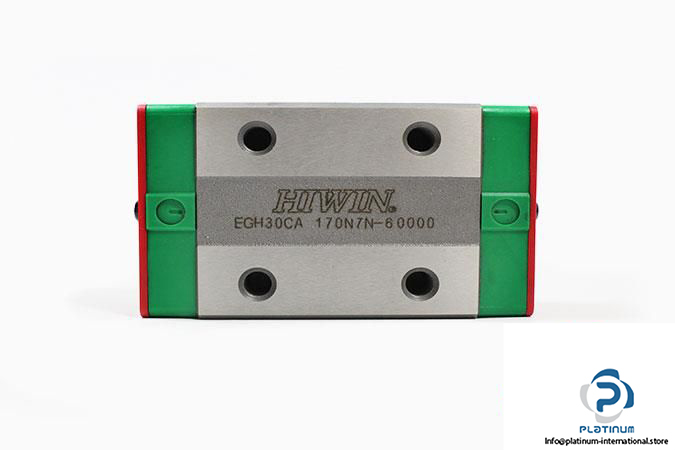

MNR: EGH30CA 170N7N-60000
Size: 30 mm

Technical Information

• Block Height: 32 mm
• System Height: 42 mm
• Block Width: 60 mm
• Block Length: 98.1 mm
• Thread Size: M6 x 25
• Distances Between Holes: 40, 40 mm
• Rail Width: 28 mm
• Rail Height: 23 mm
• Block Type: Square
• Load Type: Heavy Load
• Block Mounting Type: From Top
• Basic Dynamic Load Rating: 23.7 kN
• Basic Static Load Rating: 47.46 kN
