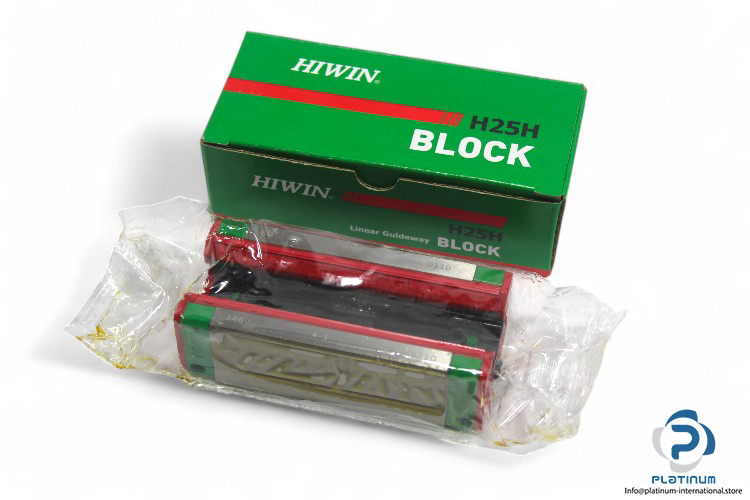

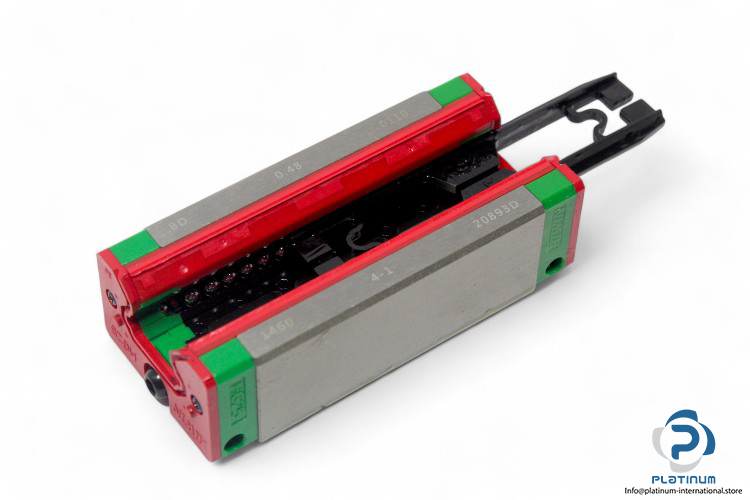

Hiwin HGL25 HA Linear Guideway Block

In stock12 unitsReady to ship

78,10$

LINEAR GUIDEWAY BLOCK

High-rigidity HIWIN linear block HGL25-HA from the HG series, low-profile square type, designed for super heavy loads and top-mount installation in precision automation systems.

Manufacturer
HIWIN
SKU
1057178
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HIWIN HGL25-HA LINEAR GUIDEWAY BLOCK

This HIWIN HGL25-HA linear guideway block belongs to the HG series, designed for super heavy load applications with high precision and rigidity. Featuring a square, low-profile design and top-mounting capability, it is ideal for compact automation and CNC motion systems.

Manufacturer: HIWIN

Type: LINEAR GUIDEWAY BLOCK

Model: HGL25-HA

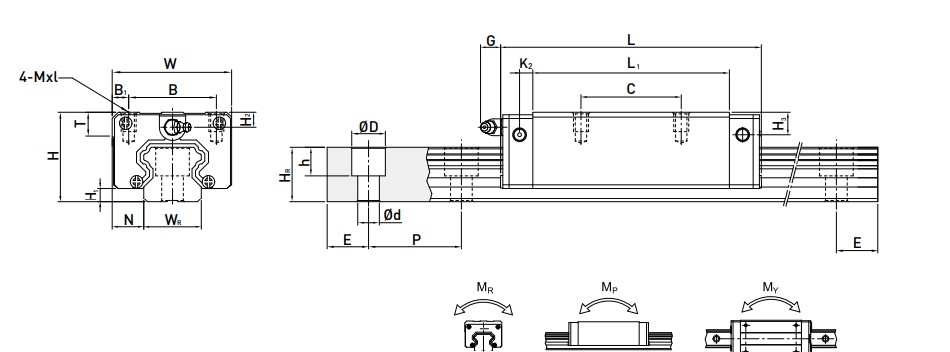

Size25 mm
Total Height H36 mm
Block Width W48 mm
Block Length L104.6 mm
Block Height30.5 mm
B35 mm
C50 mm
Dynamic Load Rating (Cr)32.75 kN
Static Load Rating (C‚r)49.44 kN
SeriesHG Series
Block TypeL; Square Type (Low)
Load TypeH; Super Heavy Load
Block Mounting TypeA; Mounting from Top
