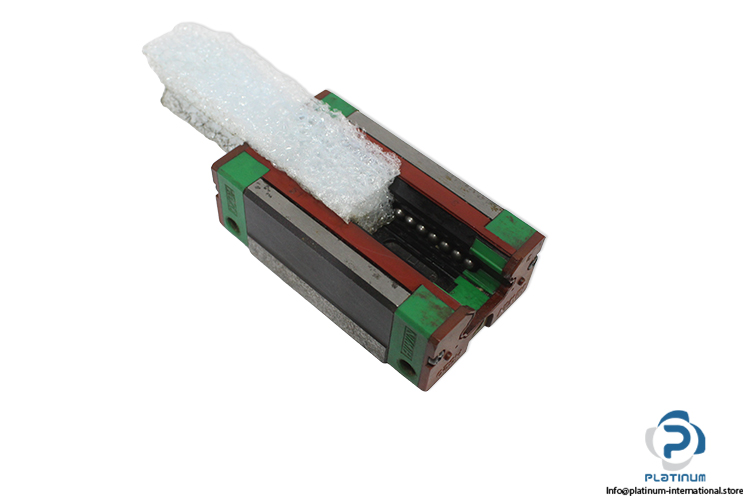

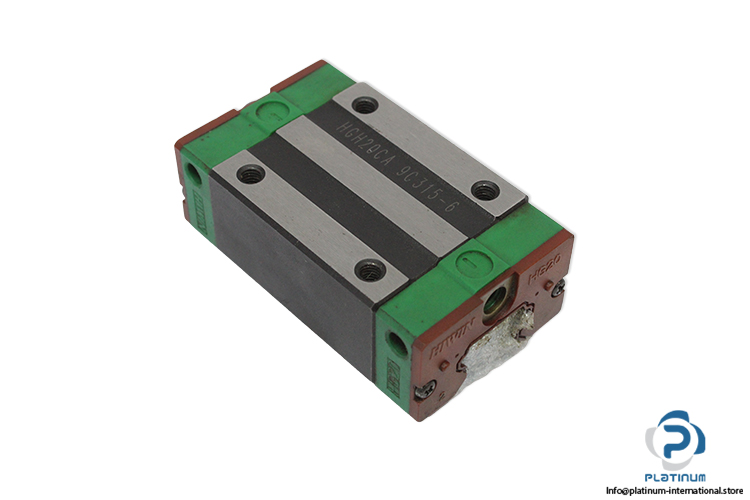

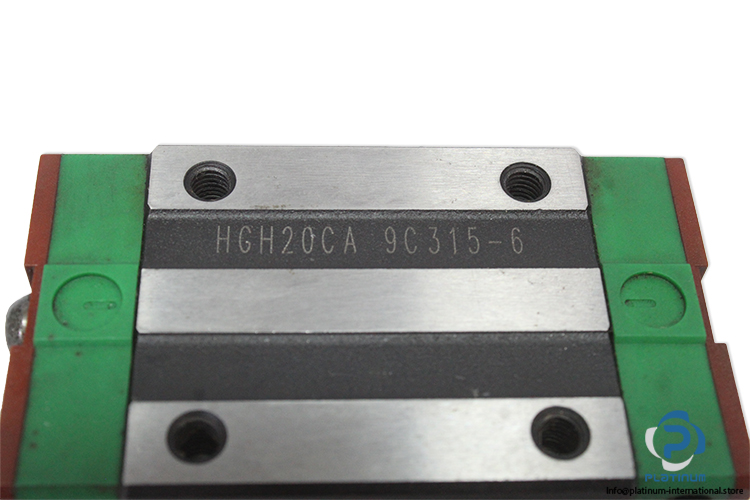

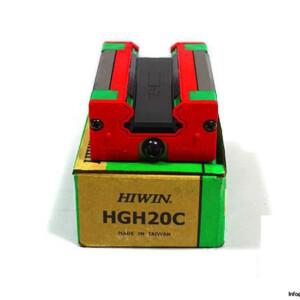

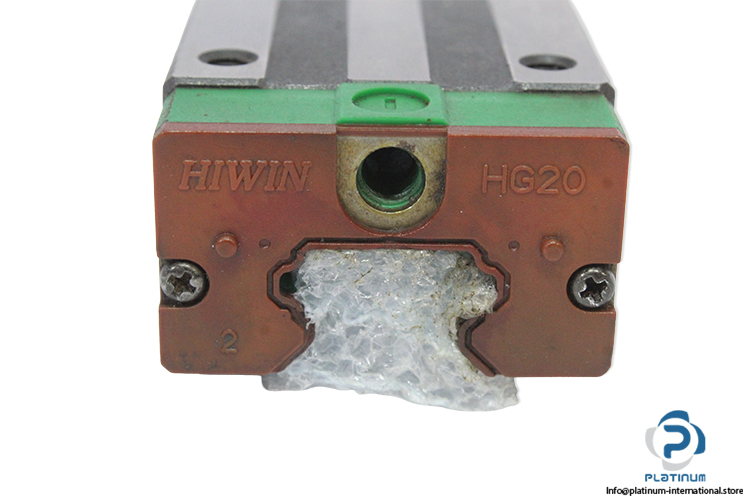

Hiwin HGH20CA Linear Guideway Block
Used
In stock4 unitsReady to ship
Linear Guideway Block Hiwin HGH20CA Linear Guideway Block is a heavy-load square type block with top mounting, size 20 mm, offering high rigidity and smooth linear motion with dynamic load rating of 27.1 kN.
New
In stock 55,28$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

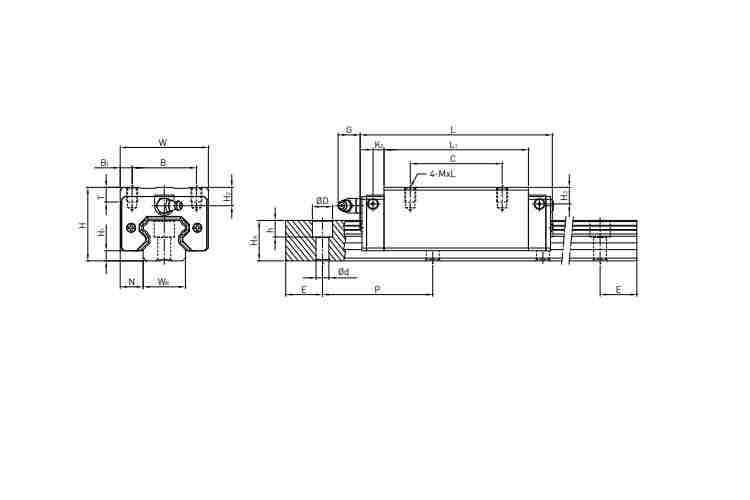

| Size | 20 mm |
| Total Height H | 30 mm |
| Block Width W | 44 mm |
| Block Length L | 77.5 mm |
| Block Height | 25.4 mm |
| Rail Width | 20 mm |
| Rail Height | 17.5 mm |
| Distance Between Holes | 32, 36 mm |
| Block Type | Square |
| Load Type | Heavy Load |
| Block Mounting Type | From Top |
| Thread Size | M5 x 6 |
| Dynamic Load Rating | 27.1 kN |
| Static Load Rating | 36.68 kN |
| Condition | Used |
| SKU | 1097129 |
| Weight | 0,33 |
