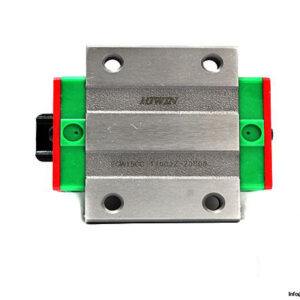

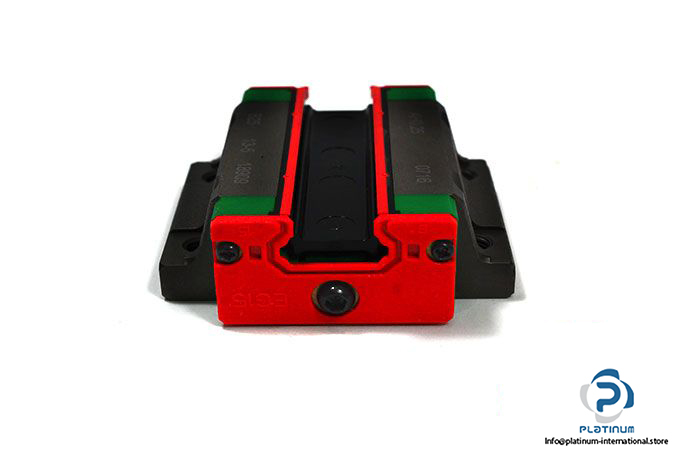

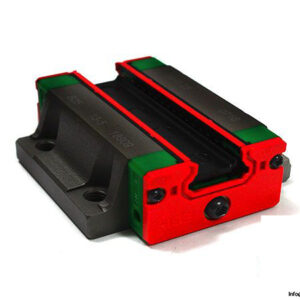

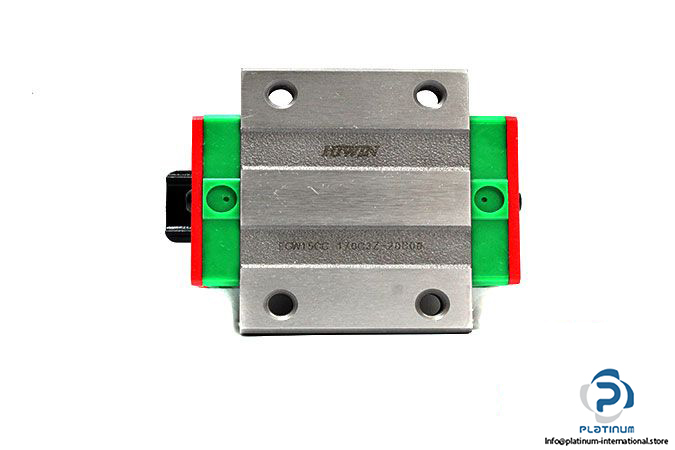

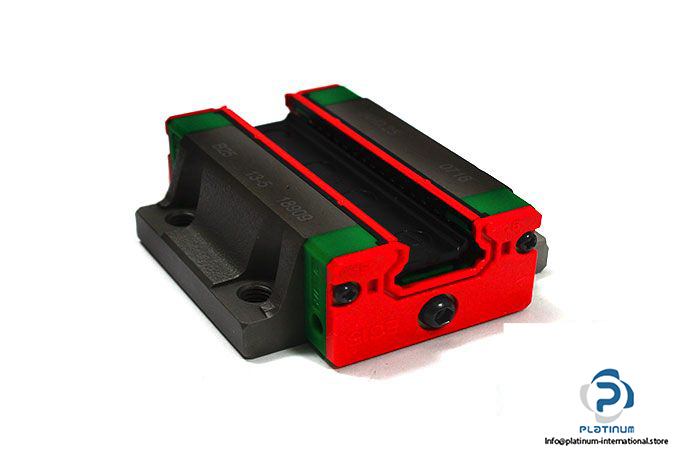

HIWIN EGW 15 CC 170C3Z-20300 LINEAR GUIDEWAY BLOCK
This heavy-duty linear guideway block from Hiwin is engineered for precise motion and high load capacity. Its compact flange design and dual mounting options make it ideal for high-performance industrial applications requiring durability and rigidity.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW 15 CC 170C3Z-20300
Technical Information
- Size: 15 mm
- Block Height (H): 19.5 mm
- Block Width (W): 52 mm
- Block Length (L): 56.8 mm
- Total Height: 24 mm
- Distances Between Holes: 41 mm, 26 mm
- Thread Size: M3 x 16
- Rail Width: 15 mm
- Rail Height: 12.5 mm
- Block Type: Flange
- Load Type: Heavy Load
- Block Mounting Type: From Above or Below
- Basic Dynamic Load Rating (C): 7.83 kN
- Basic Static Load Rating (C‚): 16.19 kN
