Hiwin EGW30CC Linear Guideway Block
New
In stock20 unitsReady to ship
98,59$
LINEAR GUIDEWAY BLOCK
Heavy-load, low-profile flange-type block from Hiwin with 30 mm size, high load ratings, and dual mounting options for precise and compact linear motion systems.2004RT-302003030CCBlockBottomEGWFlangeGuideGuidewayHeavyHiwinLinearLoadlowmmMotionmountPrecisionProfilerailTopType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

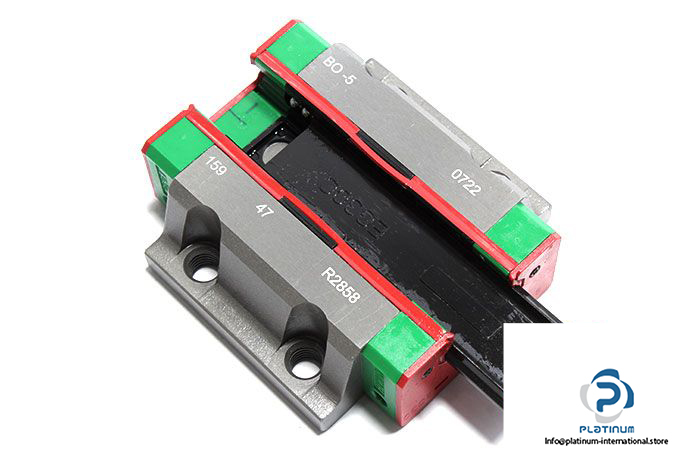

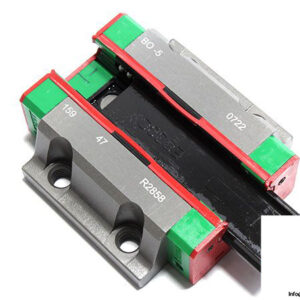

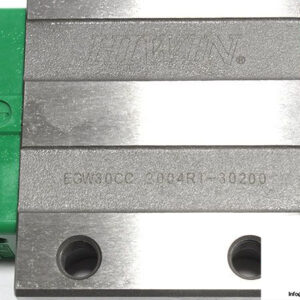

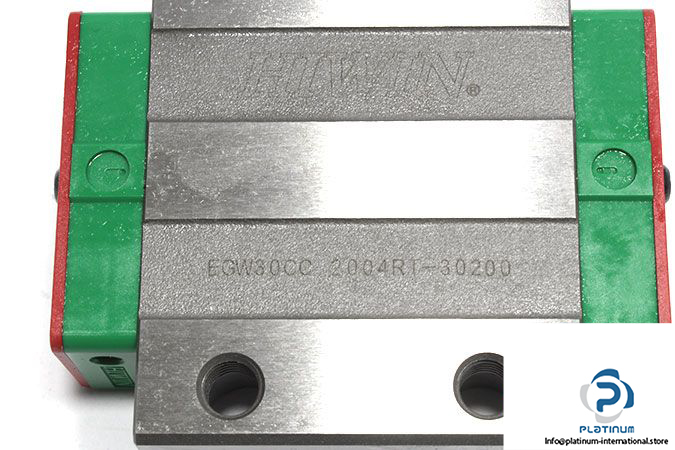

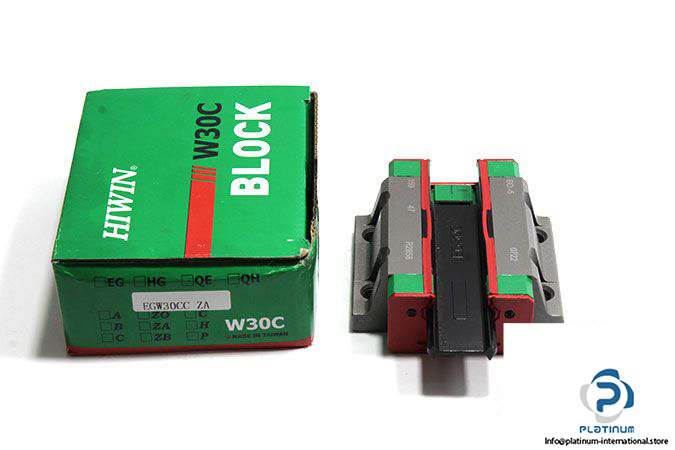

HIWIN EGW 30CC 2004RT-30200 LINEAR GUIDEWAY BLOCK
This low-profile, heavy-load linear guideway block from Hiwin is engineered for smooth and precise linear motion. Designed with a flange-type body and flexible top or bottom mounting, it is ideal for compact applications requiring high load capacity and stability.
Manufacturer: Hiwin
Type: Linear Guideway Block Low Profile Ball Type
MRN: EGW 30CC 2004RT-30200
| Size | 30 mm |
| Total Height H | 42 mm |
| Block Width W | 90 mm |
| Block Length L | 98.1 mm |
| Block Height | 32 mm |
| Distance Between Holes | 72, 40 mm |
| Basic Dynamic Load Rating C | 23.7 kN |
| Basic Static Load Rating C‚ | 47.46 kN |
| Rail Width | 28 mm |
| Rail Height | 23 mm |
| Block Type | Flange Type |
| Load Type | Heavy Load |
| Block Mounting Type | Top or Bottom |
