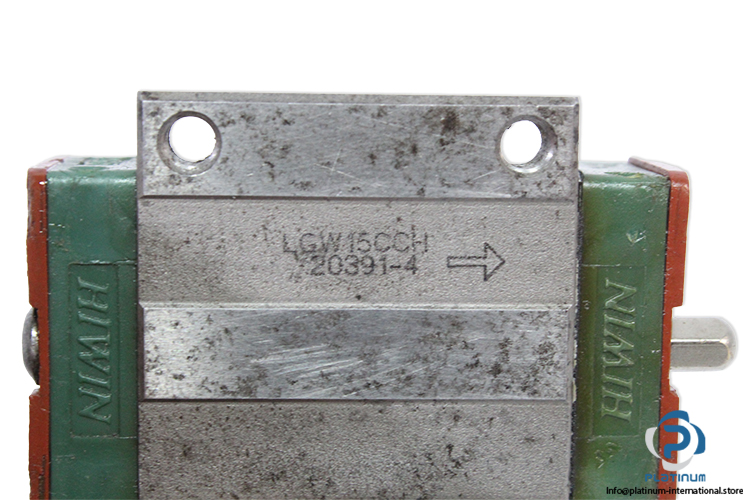

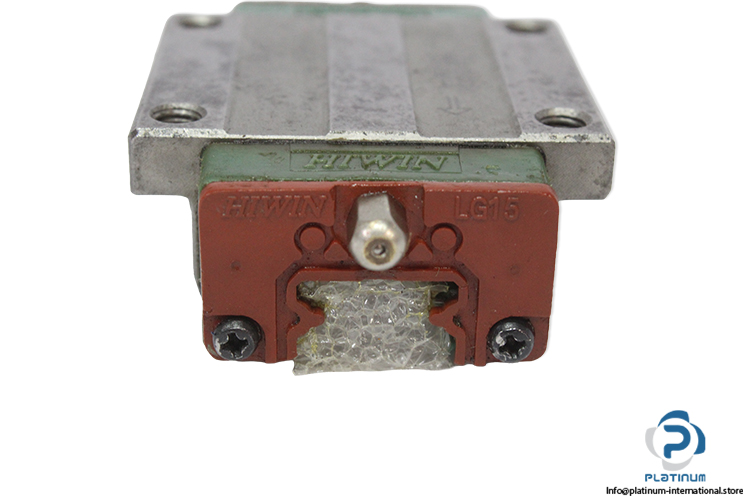

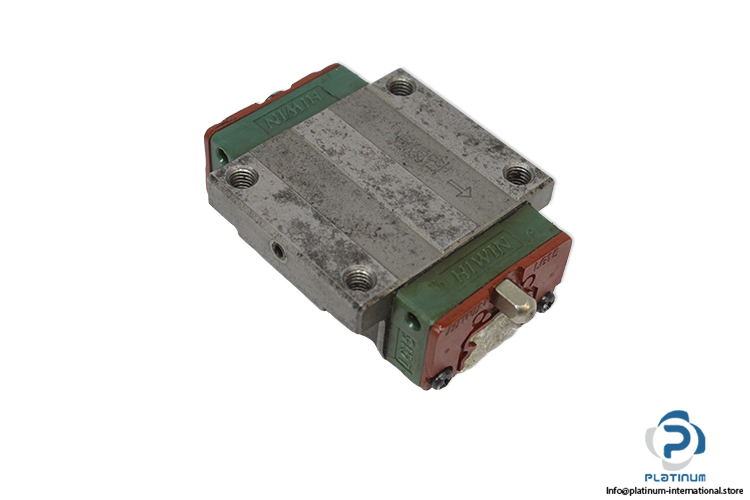

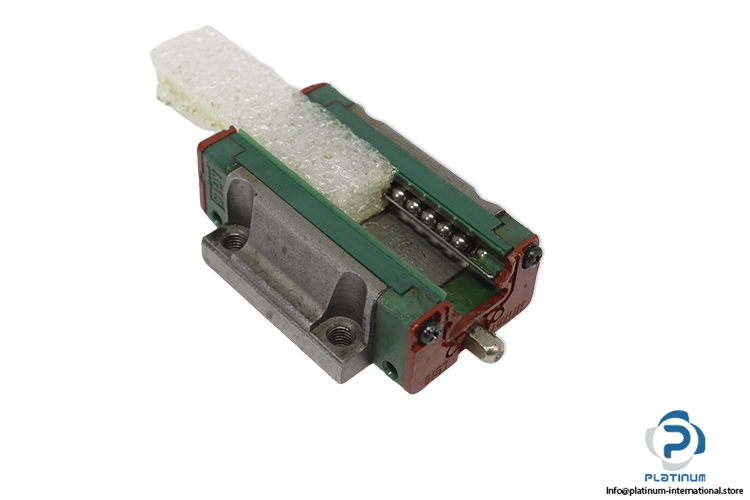

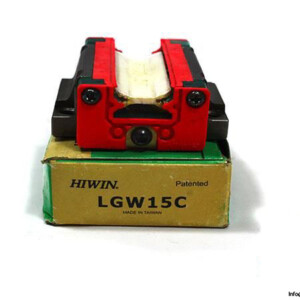

Hiwin LGW15CC Linear Guideway Block
Used
In stock1 unitReady to ship
Linear Guideway Block Hiwin LGW15CC Linear Guideway Block is a high-precision flange-type block designed for heavy load applications, featuring 15 mm size, C precision, and reliable linear motion performance.
New
In stock 45,00$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

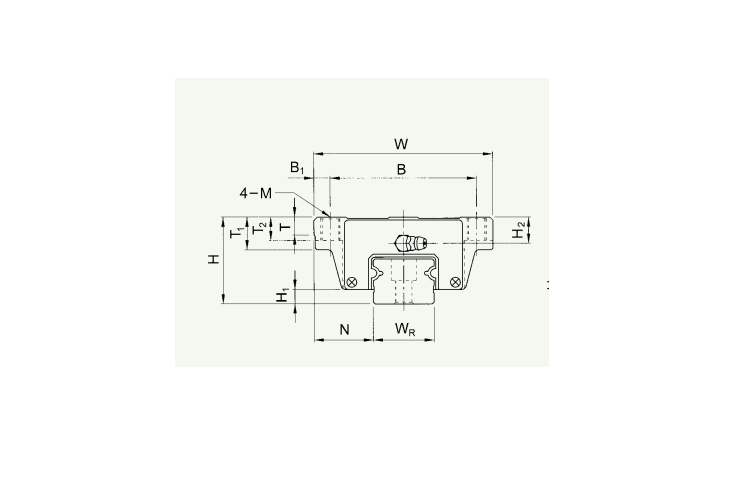

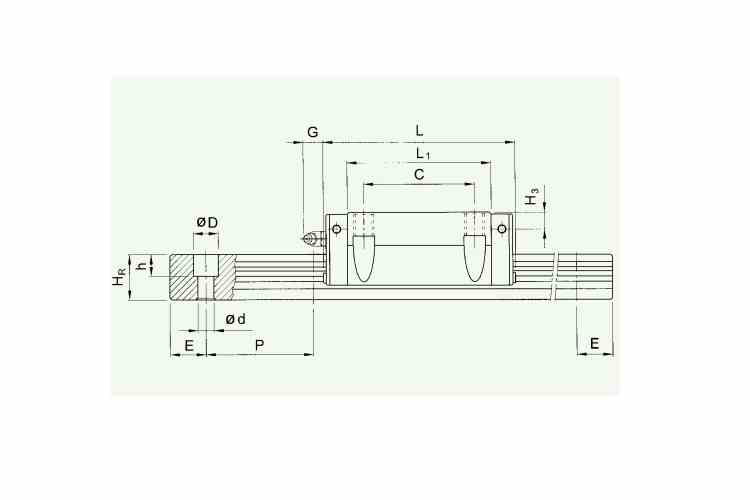

| Size | 15 mm |
| Block Height | 19.5 mm |
| System Height | 24 mm |
| Block Width W | 47 mm |
| Block Length L | 60.6 mm |
| Thread Size | M4 x 16 |
| Distance Between Holes | 38 mm, 30 mm |
| Rail Width | 15 mm |
| Rail Height | 14 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | From Above |
| Dynamic Load Rating | 1.04 kgf |
| Static Load Rating | 1.68 kgf |
| Precision Code | C |
| Condition | Used |
| SKU | 1097126 |
| Weight | 0,18 |
