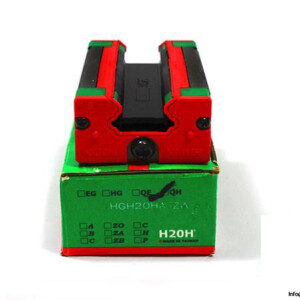

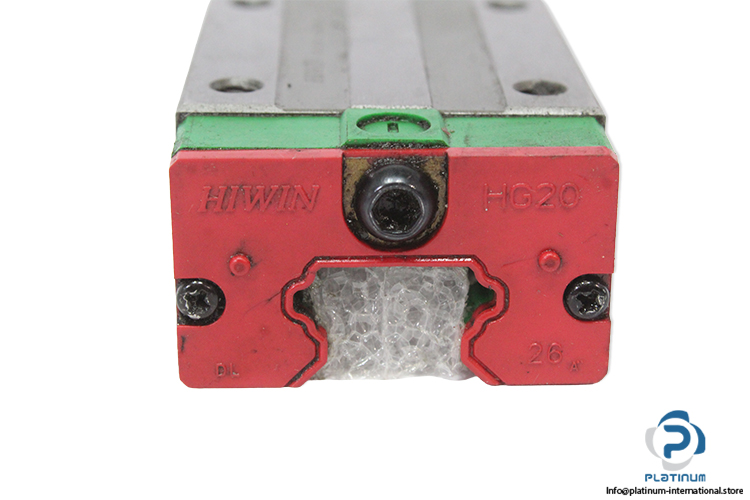

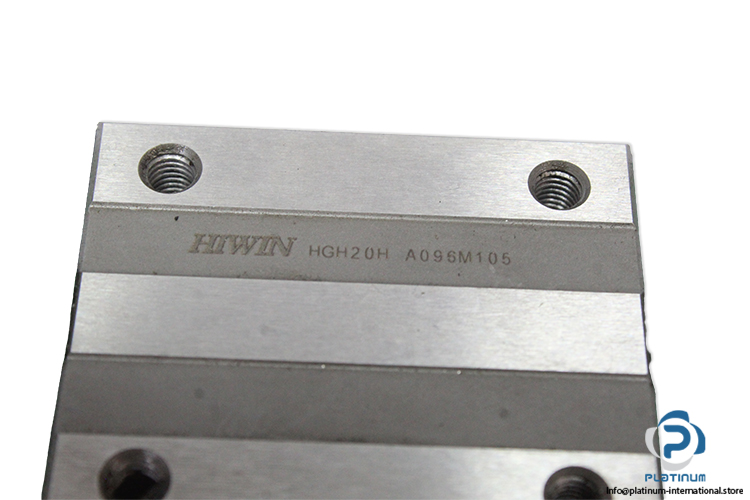

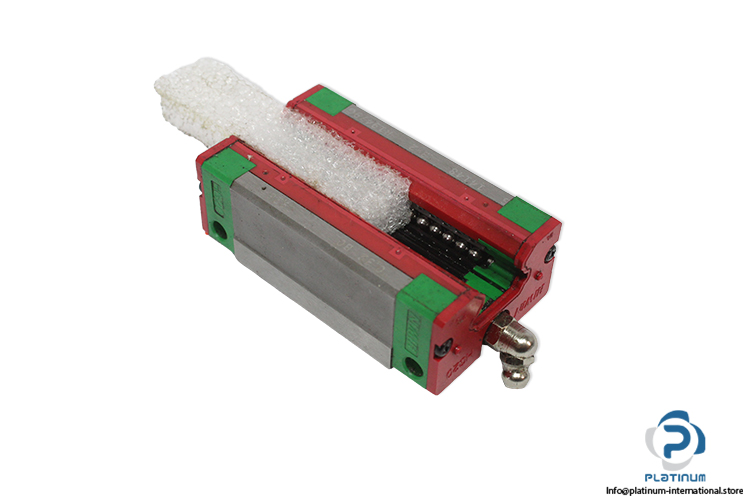

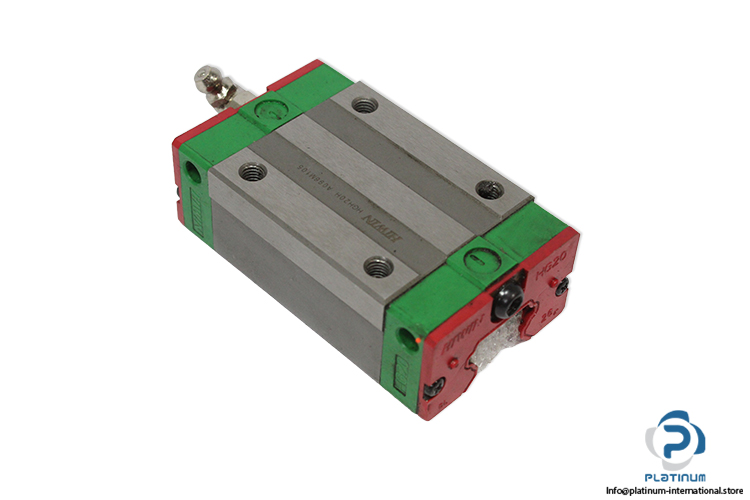

Hiwin HGH20HA Ball Runner Block
Used
In stock1 unitReady to ship
Ball Runner Block Hiwin HGH20HA Ball Runner Block is a precision linear motion carriage with super heavy load capacity, 32.7 kN dynamic load, and 47.96 kN static load, designed for high-performance automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Size | 20 mm |
| Block Height | 25.4 mm |
| System Height | 30 mm |
| Block Width (W) | 44 mm |
| Block Length (L) | 92.2 mm |
| Thread Size | M5 x 6 |
| Distance Between Holes | 32 mm, 50 mm |
| Rail Width | 20 mm |
| Rail Height | 17.5 mm |
| Block Type | Square |
| Load Type | Super Heavy Load |
| Block Mounting Type | From Top |
| Dynamic Load Rating | 32.7 kN |
| Static Load Rating | 47.96 kN |
| Condition | Used |
| SKU | 1097117 |
| Weight | 0,35 |
