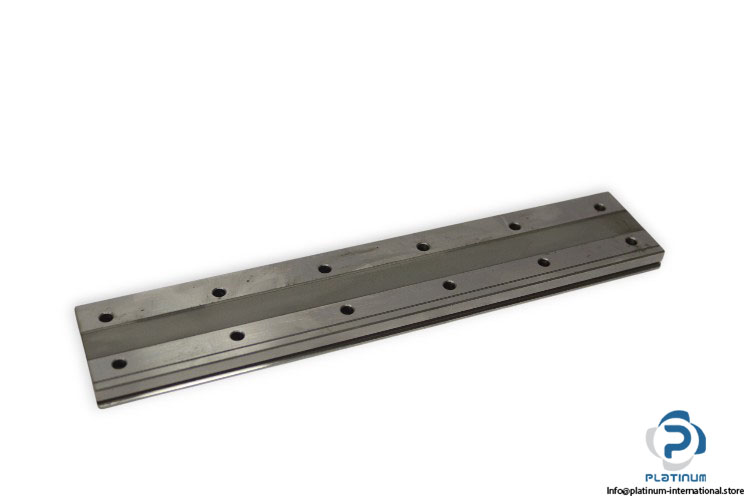

Hiwin MGWR15H Interchangeable Linear Guide Rail
The Hiwin MGWR15H is a precision-engineered linear guide rail designed for smooth, stable, and accurate linear motion in automation and industrial machinery applications.
Manufacturer: Hiwin
Type: Interchangeable Linear Guide Rail
Model: MGWR15H

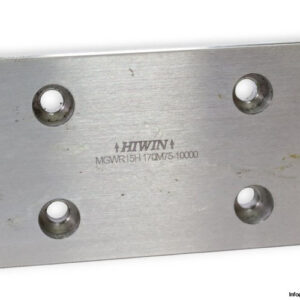

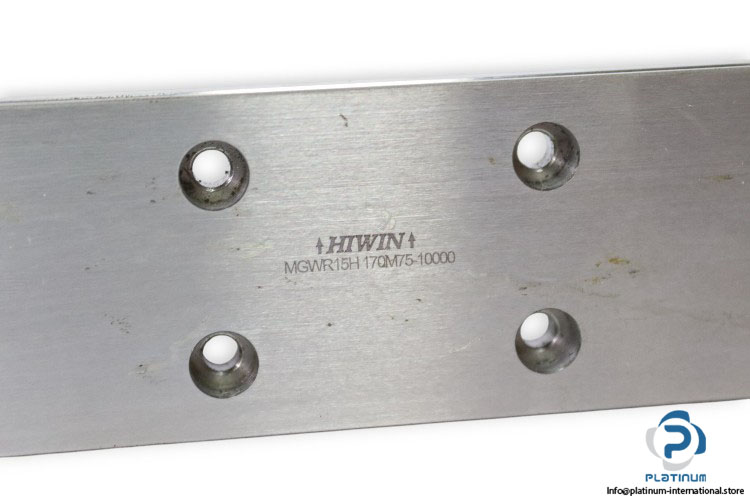

Code: 170M75-10000

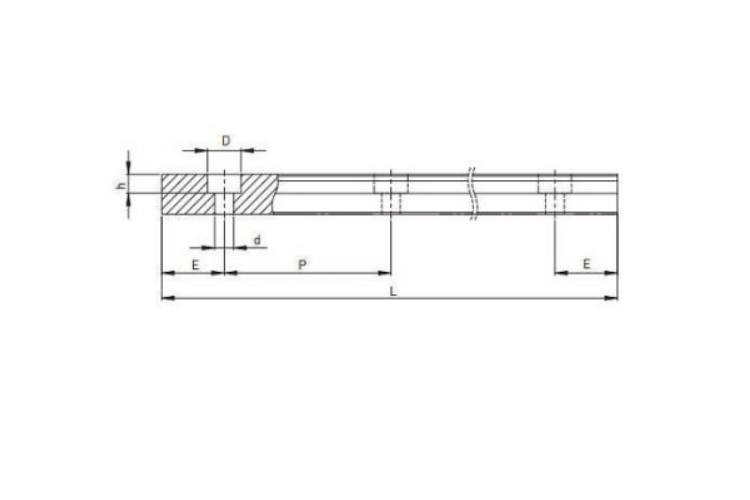

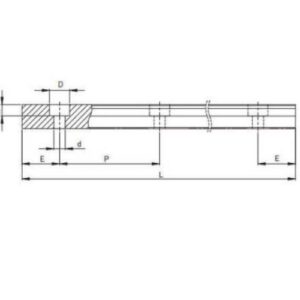

| Rail Size | 15 mm |
| Pitch P | 40 mm |
| Distance to End E | 15 mm |
| Standard Length | 590 mm |
| Max. Length | 2000 mm |
| Rail Height (HR) | 9.5 mm |
| Rail Width (WR) | 42 mm |
| Total Length of Rail (L) | 220 mm |
| No. of Mounting Holes (n) | 12 |
| Accuracy Standard | H - High |
| D | 8 mm |
| d | 4.5 mm |
| h | 4.5 mm |
| Note | Matching Linear Guideway Blocks are available in various dimensions. Please contact us for compatible block options for this rail. |
