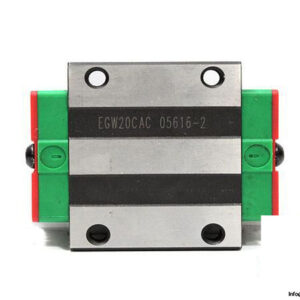

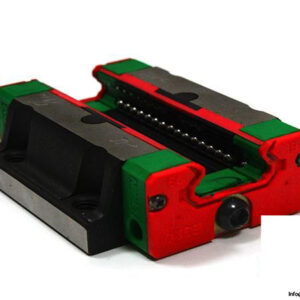

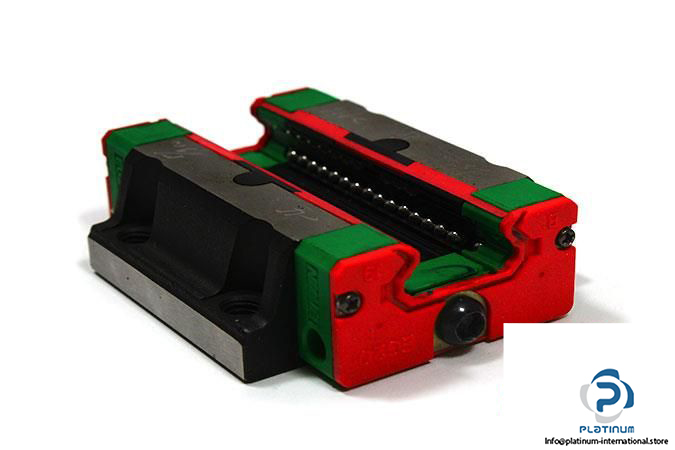

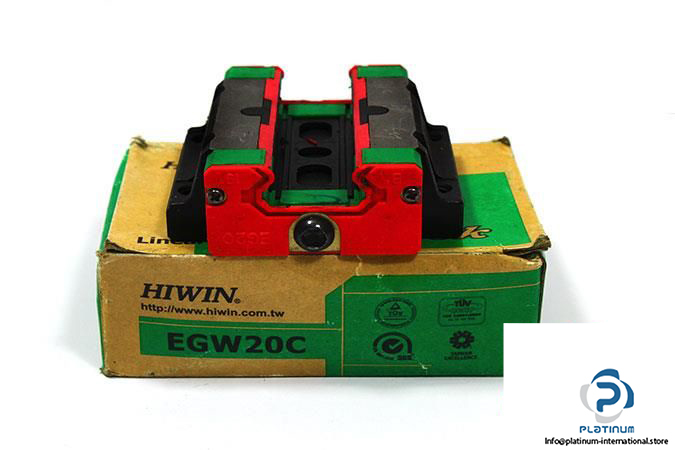

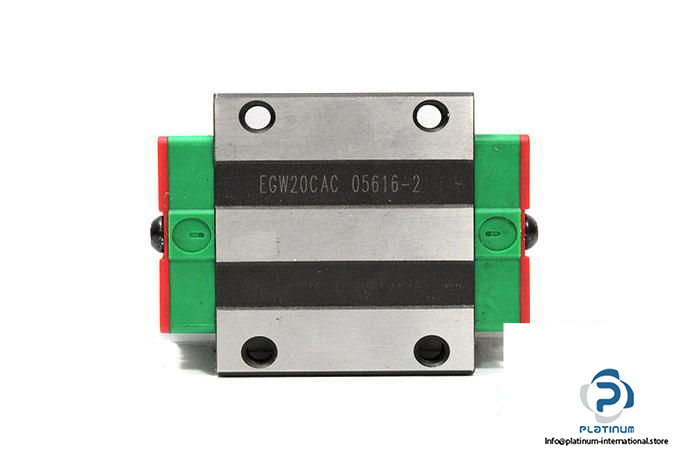

HIWIN EGW20CAC LINEAR GUIDEWAY BLOCK

This heavy-duty linear guideway block from Hiwin is engineered for precision motion applications requiring high load capacity and compact size. Designed with a flange-type body and top-mounting system, it provides stable and accurate linear guidance for demanding automation environments.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW20CAC 05616-2
Size: 20 mm

Technical Information

• Block Height: 22 mm
• System Height: 28 mm
• Block Width (W): 59 mm
• Block Length (L): 69.1 mm
• Distances Between Holes: 49 mm, 32 mm
• Thread Size: M5 × 16
• Rail Width: 20 mm
• Rail Height: 15.5 mm
• Block Type: Flange
• Load Type: Heavy Load
• Precision Code: C
• Block Mounting Type: From Top
• Basic Dynamic Load Rating: 10.31 kN
• Basic Static Load Rating: 21.13 kN
