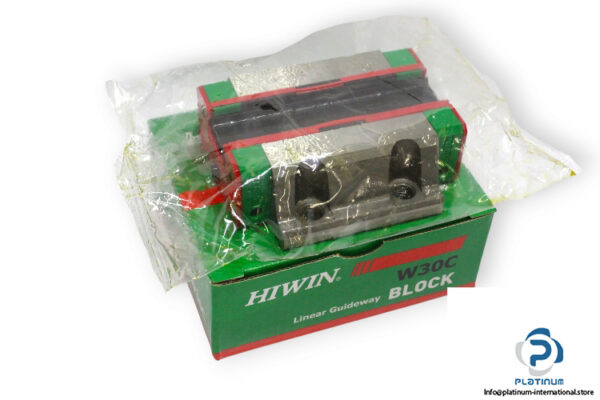

HIWIN EGW 30 CB Z0 LINEAR GUIDEWAY BLOCK

This heavy-load linear guideway block from Hiwin delivers high precision, rigidity, and load capacity, making it ideal for demanding motion systems. With flange type mounting and Z0 preload, it ensures stability under complex load conditions.

Manufacturer: Hiwin
Type: Linear Guideway Block

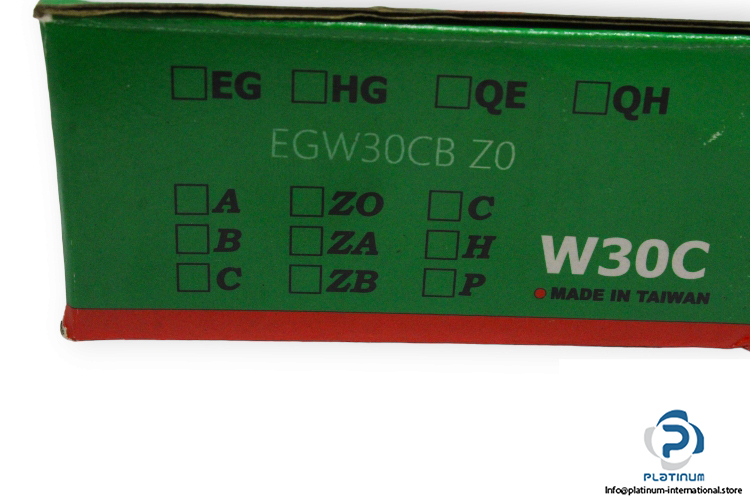

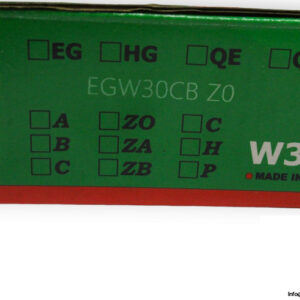

MNR: EGW 30 CB Z0

Technical Information

• Size: 30 mm
• Total Height H: 42 mm
• Block Height: 32 mm
• Block Width W: 90 mm
• Block Length L: 98.1 mm
• Distance Between Holes: 72 mm, 40 mm
• Thread Size: M6 x 25
• Block Type: Flange
• Load Type: Heavy Load
• Preload: Z0
• Block Mounting Type: From Bottom
• Basic Dynamic Load Rating C: 23.7 kN
• Basic Static Load Rating C0: 47.46 kN
