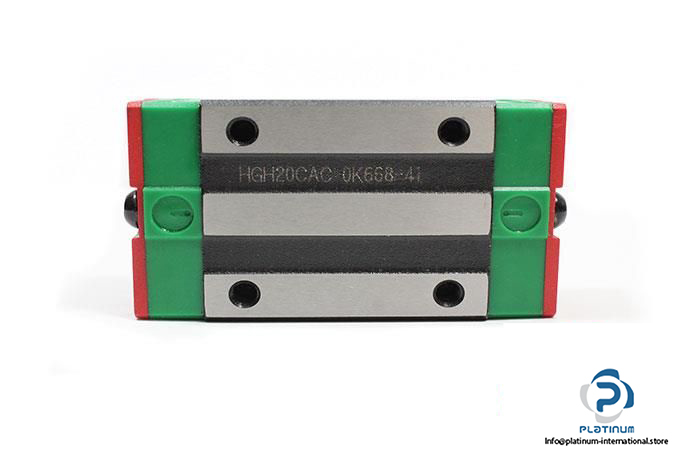

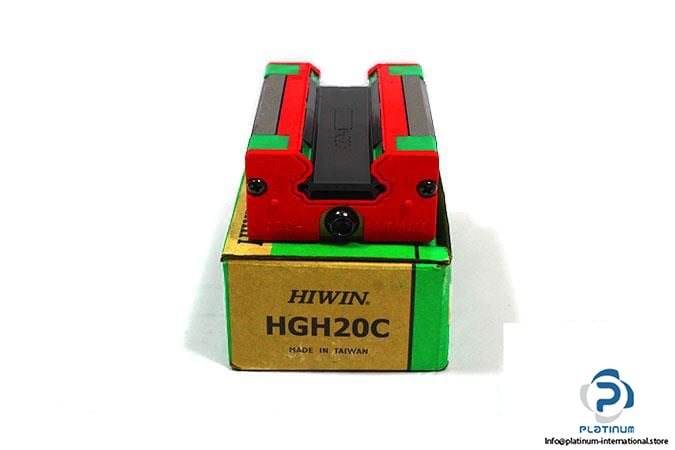

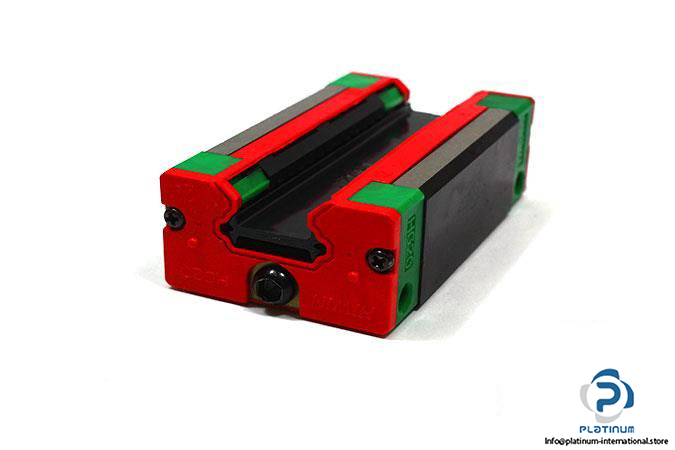

HIWIN HGH 20CAC LINEAR GUIDEWAY BLOCK

The Hiwin HGH 20CAC linear guideway block is built for precision linear motion in demanding industrial applications. Engineered for heavy load conditions, this square-type block offers high rigidity and smooth movement along 20 mm rails. Suitable for automation, CNC systems, and mechanical assemblies requiring top-mount stability and long-lasting performance.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH 20CAC 0K668-41

Technical Information

• Size: 20 mm
• Total Height H: 30 mm
• Block Width W: 44 mm
• Block Length L: 77.5 mm
• Block Height: 25.4 mm
• Rail Width: 20 mm
• Rail Height: 17.5 mm
• Distance Between Holes: 32, 36 mm
• Block Type: Square
• Load Type: Heavy Load
• Block Mounting Type: From Top
• Thread Size: M5 x 6
• Basic Dynamic Load Rating C: 27.1 kN
• Basic Static Load Rating C‚: 36.68 kN
