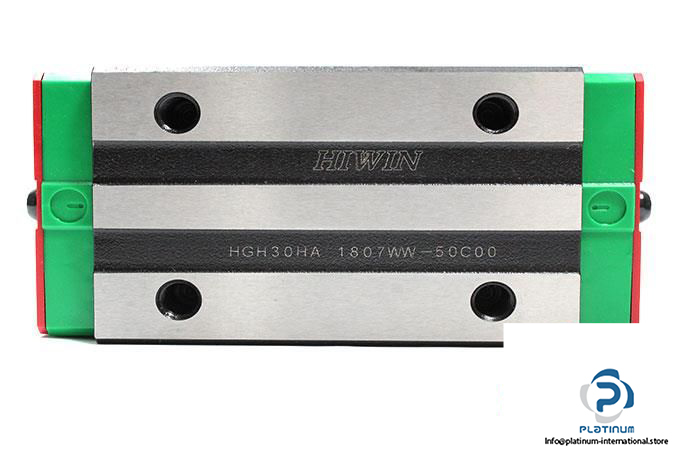

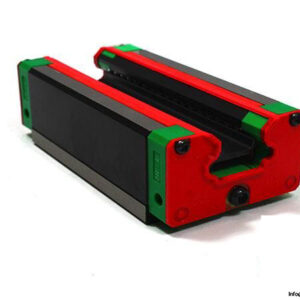

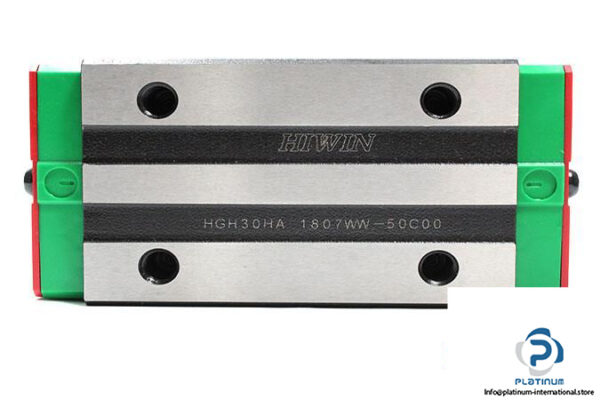

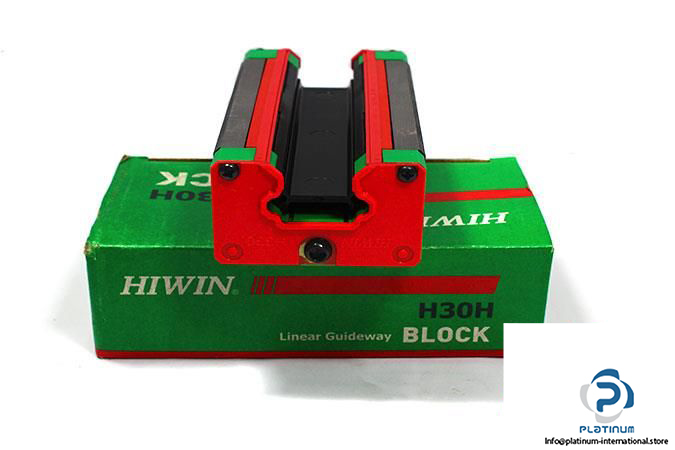

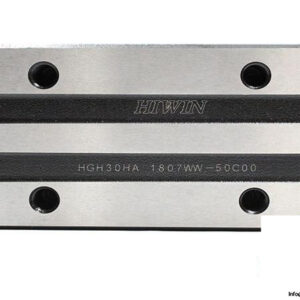

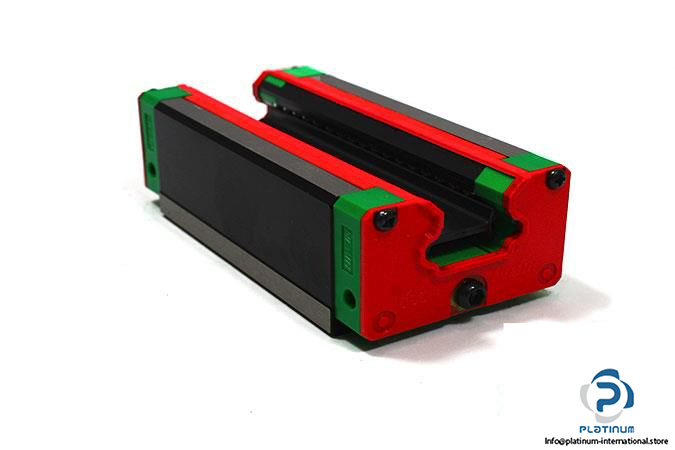

HIWIN HGH30HA LINEAR GUIDEWAY BLOCK
The Hiwin HGH30HA linear guideway block is designed for high-precision linear motion under super heavy loads. With square block design and top-mounting type, it offers exceptional rigidity, high dynamic load capacity, and durability for demanding industrial automation systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH30HA 1807WW-50C00
Technical Information
- Size: 30 mm
- Block Height: 39 mm
- Block Width: 60 mm
- Block Length: 120.4 mm
- Thread Size: M8 x 25
- System Height: 45 mm
- Distances Between Holes: 40, 60 mm
- Rail Width: 28 mm
- Rail Height: 26 mm
- Basic Dynamic Load Rating: 58.6 kN
- Basic Static Load Rating: 93.99 kN
- Block Type: Square
- Load Type: Super Heavy Load
- Block Mounting Type: From Top
