Hiwin WEW27CC Linear Guideway Block
New
In stock4 unitsReady to ship
124,44$
LINEAR GUIDEWAY BLOCK
Heavy-duty linear guideway block from Hiwin’s WE Series with 27 mm size, flange type design, and four-row wide rail construction for maximum rigidity and load capacity.
Used
In stock 99,99$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

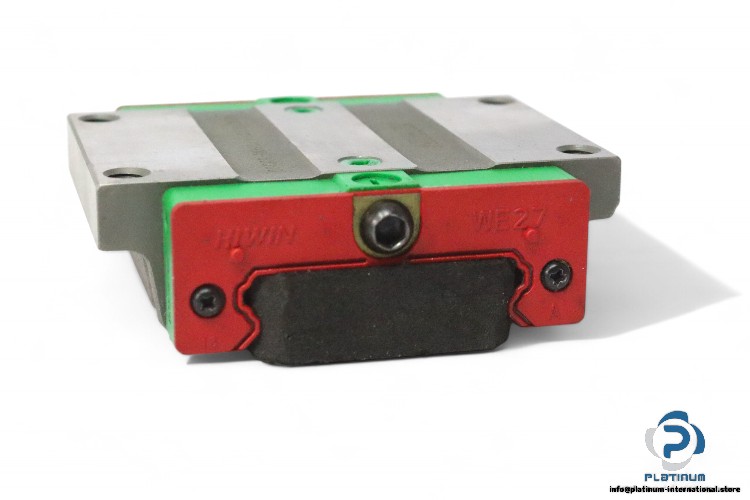

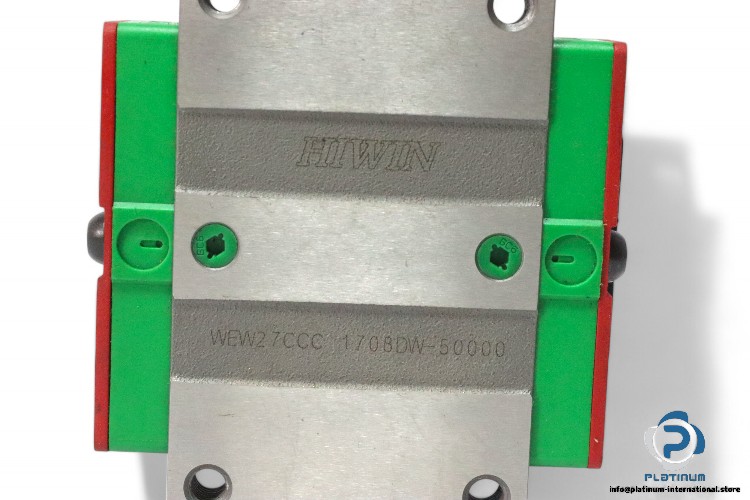

HIWIN WEW27CC LINEAR GUIDEWAY BLOCK
The Hiwin WEW27CC is a heavy-duty linear guideway block from the WE Series, engineered with a four-row wide rail design for superior load-bearing capacity and rigidity. Designed for high-performance applications, it supports top or bottom mounting and features a flange-type block optimized for compact machine layouts.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: WEW27CC
MRN: WEW27 A0748600

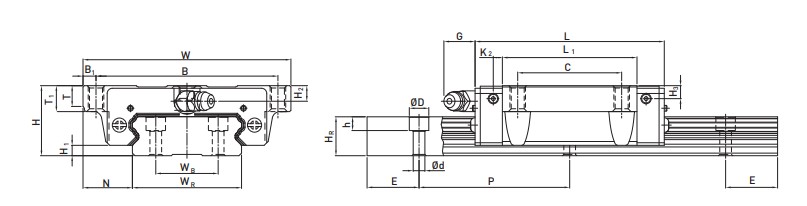

| Size | 27 mm |
| Total Height (H) | 27 mm |
| Block Width (W) | 80 mm |
| Block Length (L) | 72.8 mm |
| Block Height | 23 mm |
| Distance Between Holes | 70 mm, 40 mm |
| Basic Load Ratings - Dynamic (Cr) | 12.4 kN |
| Basic Load Ratings - Static (C0r) | 21.6 kN |
| Series | WE Series; Four-Row Wide Rail Linear Guideway |
| Block Type | W; Flange Type |
| Load Type | C; Heavy Load |
| Block Mounting Type | C; Top or Bottom |
