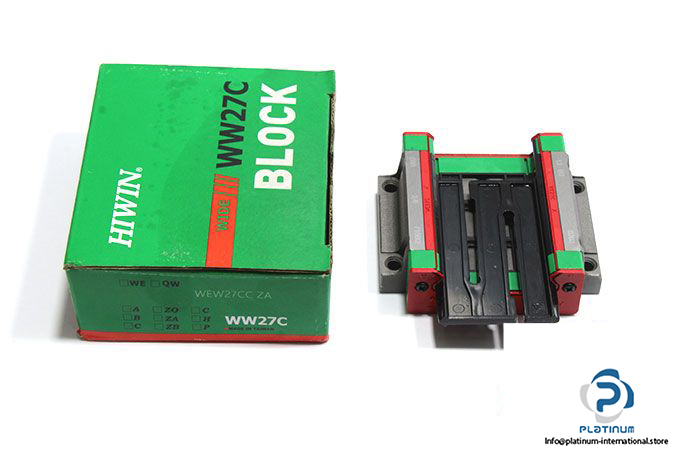

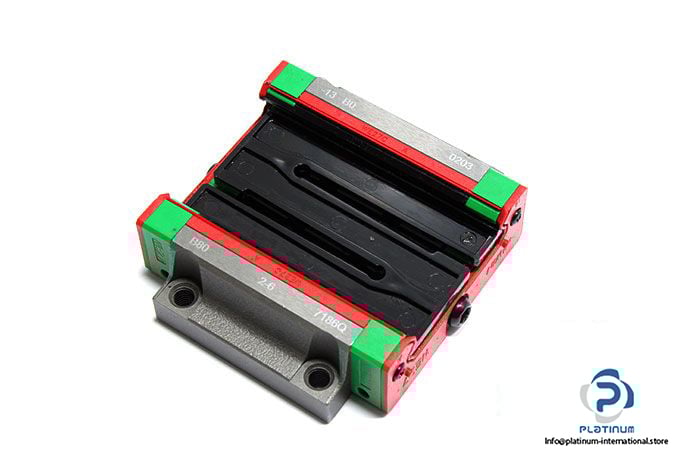

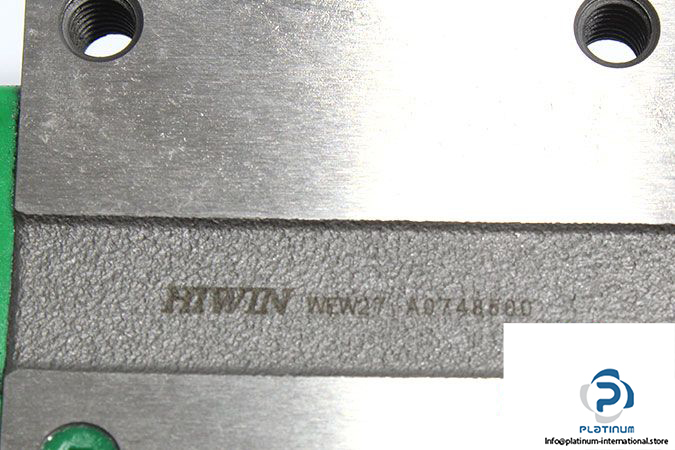

Hiwin WEW27CC Linear Guideway Block
Used
In stock4 unitsReady to ship
99,99$
LINEAR GUIDEWAY BLOCK
Heavy-load linear guideway block by Hiwin, model WEW27 CC, featuring a 27 mm wide rail design, flange-type structure, and flexible top or bottom mounting for precise industrial motion systems.27BlockBottomCCFlangefour-rowGuideGuidewayHeavyHiwinIndustrialLinearLoadmmMotionmountrailSeriesTopTypeWEWEW27
New
In stock 124,44$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HIWIN WEW27 CC LINEAR GUIDEWAY BLOCK
The Hiwin WEW27 CC is a high-precision linear guideway block engineered for demanding heavy-load applications. Part of the WE Series, this four-row wide rail block features a flange-type design and supports flexible mounting from either the top or bottom, providing superior rigidity and accuracy in linear motion systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: WEW27 CC
| Size | 27 mm |
| Total Height H | 27 mm |
| Block Width W | 80 mm |
| Block Length L | 72.8 mm |
| Block Height H-H1 | 23 mm |
| B | 70 mm |
| C | 40 mm |
| Dynamic Load Rating Cr | 12.4 kN |
| Static Load Rating C0r | 21.6 kN |
| Series | WE Series; Four-Row Wide Rail Linear Guideway |
| Block Type | W, Flange Type |
| Load Type | C, Heavy Load |
| Block Mounting Type | C, Top or Bottom |
