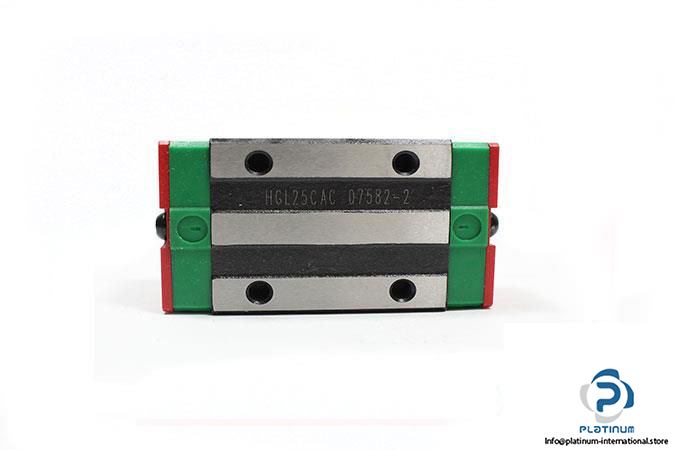

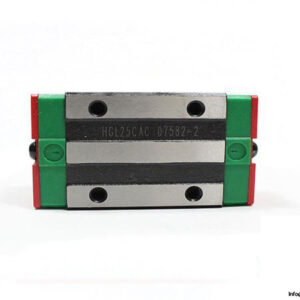

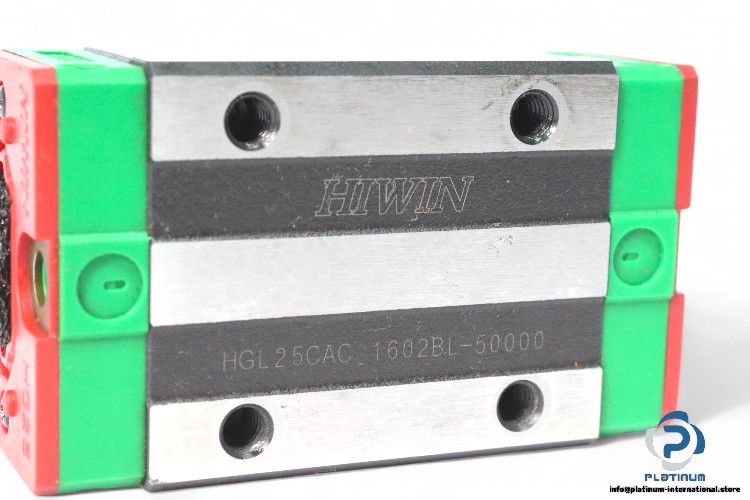

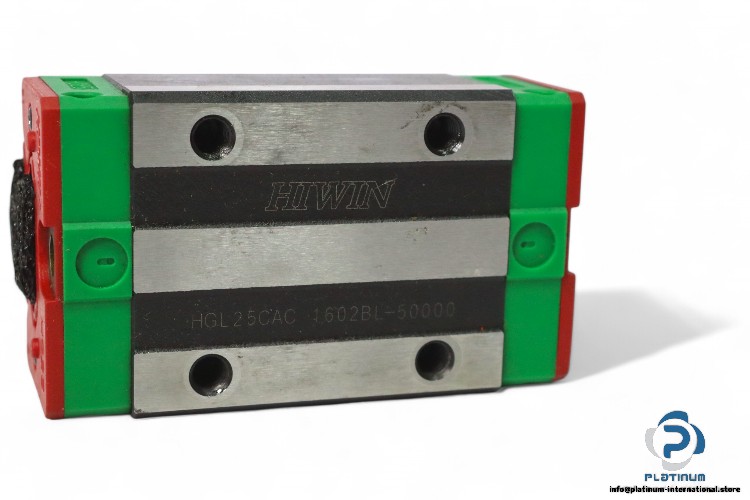

HIWIN HGL 25CA LINEAR GUIDEWAY BLOCK

This precision-engineered linear guideway block from Hiwin is designed for heavy load applications requiring high rigidity and smooth linear motion. Featuring a square low-profile design, it is ideal for use in industrial automation, machine tools, and positioning systems where compact size and high load capacity are essential.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGL 25CA

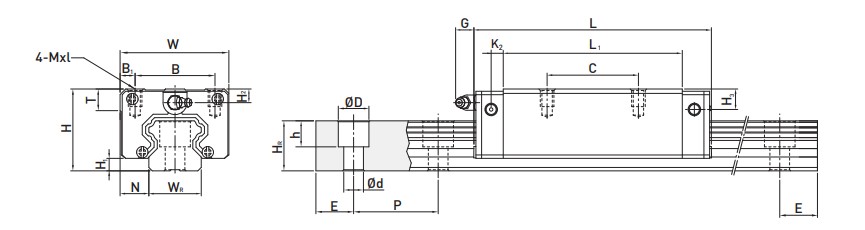

Technical Information

• Size: 25 mm
• Total Height (H): 36 mm
• Block Width (W): 48 mm
• Block Length (L): 84 mm
• Block Height: 30.5 mm
• Distances Between Holes: 35 mm, 35 mm
• Rail Width: 23 mm
• Rail Height: 22 mm
• Block Type: Square Type (Low)
• Load Type: Heavy Load
• Block Mounting Type: From Top
• Thread Size: M6x6
• Basic Dynamic Load Rating (C): 34.9 kN
• Basic Static Load Rating (C‚): 52.82 kN
