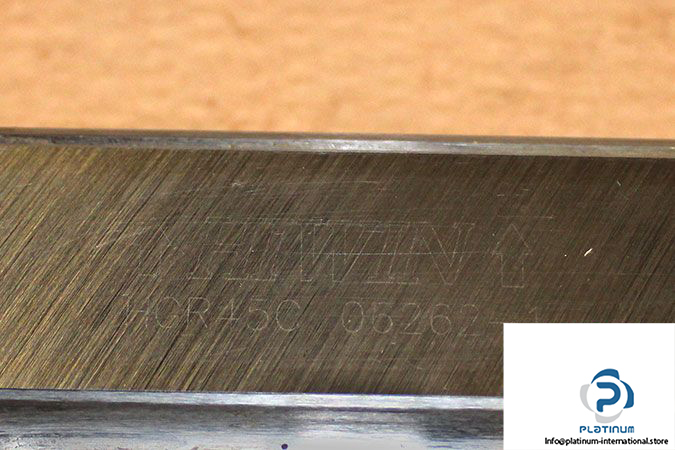

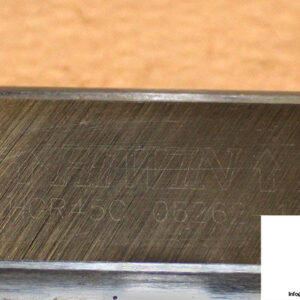

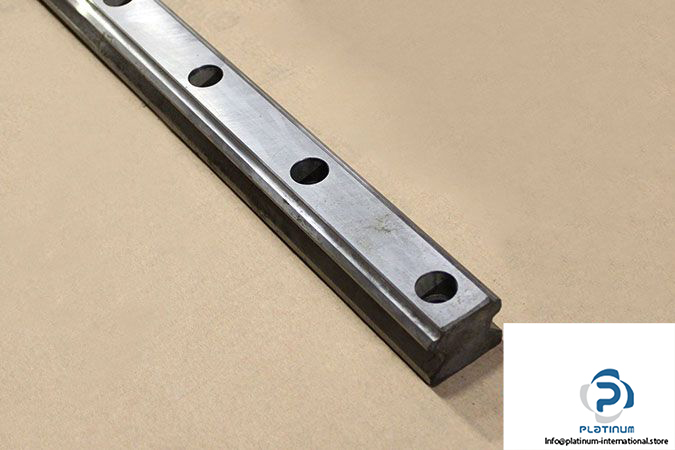

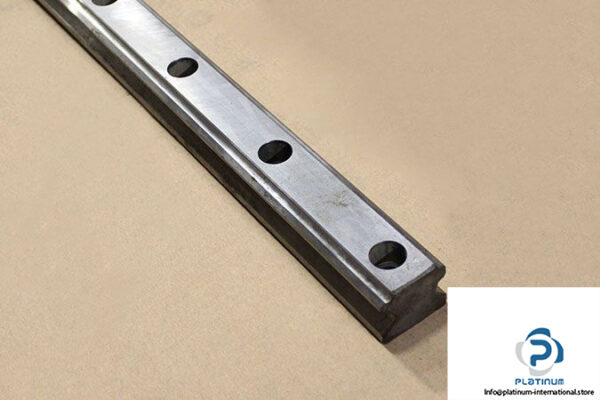

HIWIN HGR 45 C LINEAR GUIDEWAY RAIL

The Hiwin HGR 45 C linear guideway rail is engineered for high load capacity and precision motion control. With a robust size 45 profile and a length of 4000 mm, it ensures stability and smooth linear movement in demanding automation and industrial applications.

Manufacturer: Hiwin
Type: Linear Guideway Rail HGR
Model: HGR 45 C
Size: 45

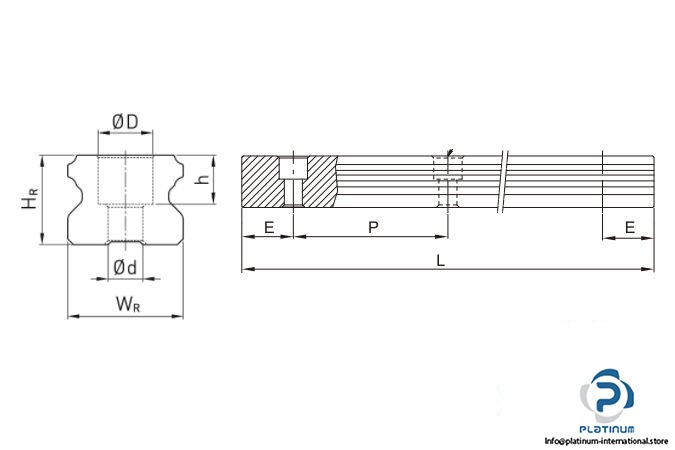

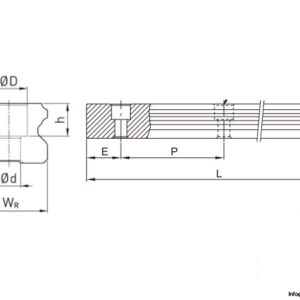

Technical Information

• Hole Pitch P: 105 mm
• D: 20 mm
• h: 17 mm
• d: 14 mm
• Rail Height HR: 38 mm
• Rail Width WR: 45 mm
• Rail Length L: 4000 mm
