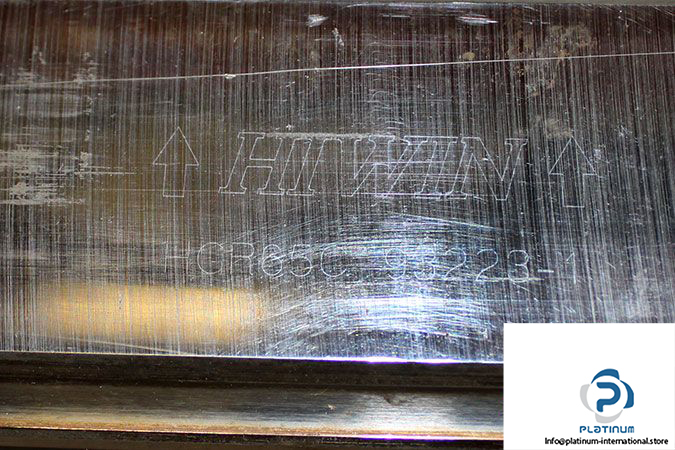

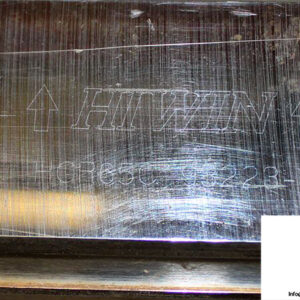

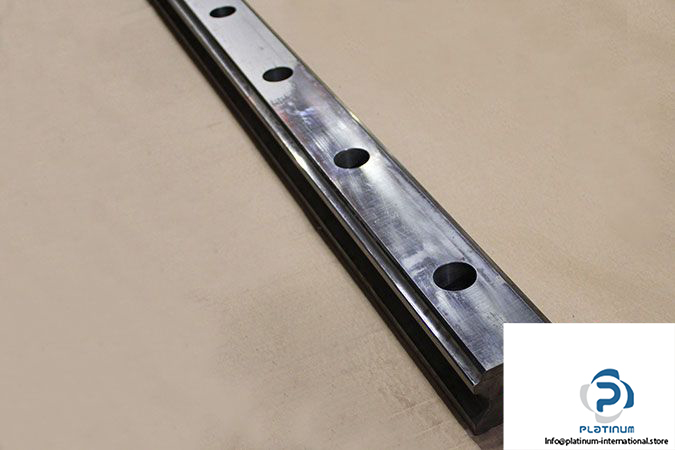

HIWIN HGR 65 C LINEAR GUIDEWAY RAIL

The Hiwin HGR 65 C is a precision-engineered linear guideway rail built for high-load capacity and smooth linear motion. With its robust 65 mm size and 3700 mm length, it’s ideal for demanding automation systems and industrial machinery requiring stable, low-friction guidance.

Manufacturer: Hiwin
Type: Linear Guideway Rail HGR
Model: HGR 65 C
Size: 65

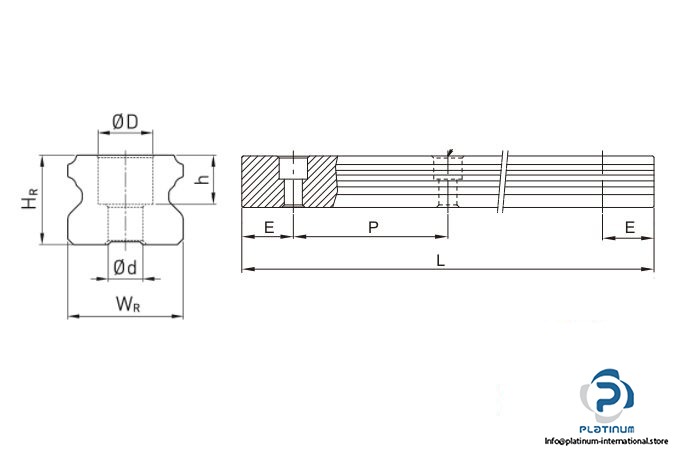

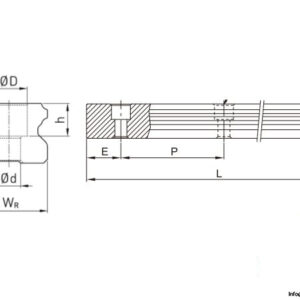

Technical Information

• Hole Pitch (P): 150 mm
• D: 26 mm
• h: 22 mm
• d: 18 mm
• Rail Height (HR): 53 mm
• Rail Width (WR): 63 mm
• Rail Length (L): 3700 mm
