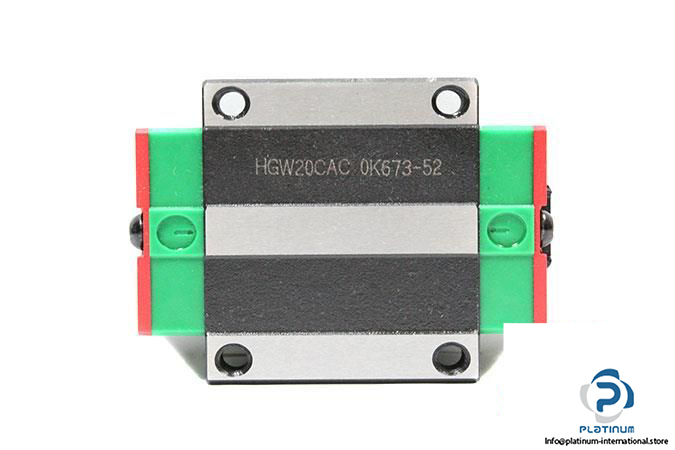

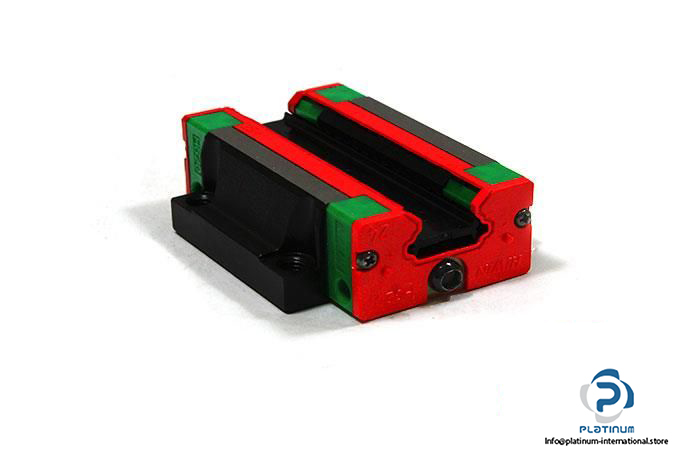

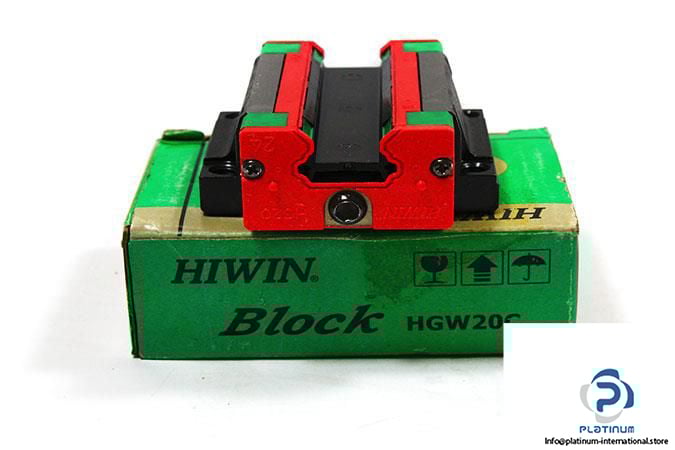

HIWIN HGW20CAC LINEAR GUIDEWAY BLOCK

Designed for high-precision motion systems, the Hiwin HGW20CAC linear guideway block offers excellent rigidity and load-bearing capacity. With a flange-type block and top-mounting configuration, it supports heavy-duty applications in industrial automation and CNC environments.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW20CAC 0K673-52

Technical Information

• Size: 20 mm
• Block Height: 25.4 mm
• System Height: 30 mm
• Block Width (W): 63 mm
• Block Length (L): 77.5 mm
• Thread Size: M5 x 16
• Rail Width: 20 mm
• Rail Height: 17.5 mm
• Distances Between Holes: 53, 40 mm
• Block Type: Flange
• Load Type: Heavy Load
• Block Mounting Type: From Top
• Precision Code: C
• Basic Dynamic Load Rating: 27.1 kN
• Basic Static Load Rating: 36.68 kN
