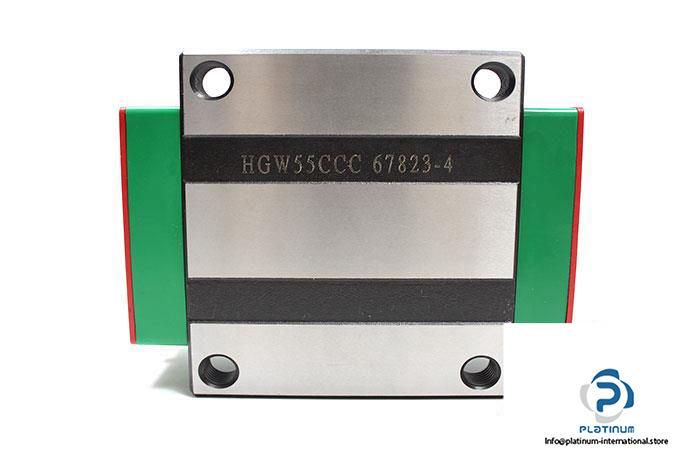

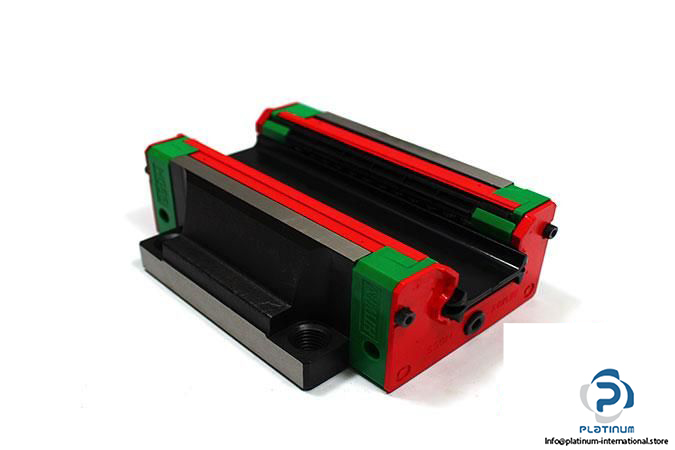

HIWIN HGW55CCC LINEAR GUIDEWAY BLOCK

The HGW55CCC linear guideway block from Hiwin is engineered for high-load and high-precision applications. With its heavy-duty flange design and robust dynamic/static load ratings, this block is ideal for demanding industrial automation and motion systems.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW55CCC 67823-4

Technical Information

• Size: 55 mm
• Block Height: 57 mm
• System Height: 70 mm
• Block Width (W): 140 mm
• Block Length (L): 166.7 mm
• Thread Size: M14 x 45
• Distance Between Mounting Holes: 116 mm, 95 mm
• Rail Width: 53 mm
• Rail Height: 44 mm
• Block Type: Flange
• Load Type: Heavy Load
• Block Mounting Type: From Top
• Basic Dynamic Load Rating: 153.2 kN
• Basic Static Load Rating: 211.23 kN
