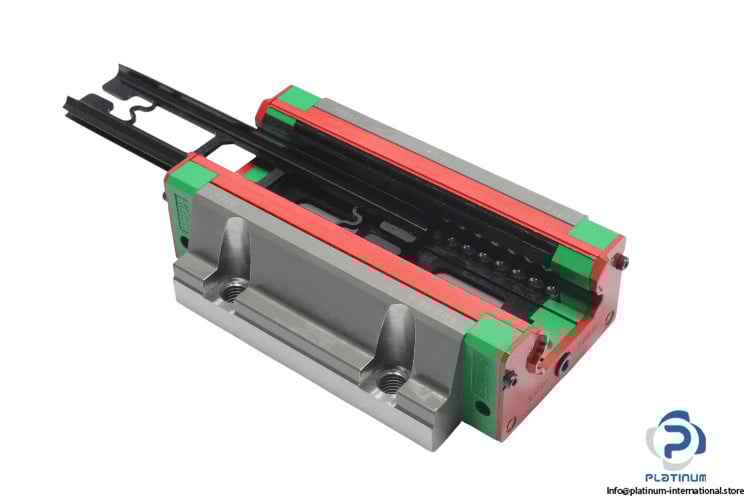

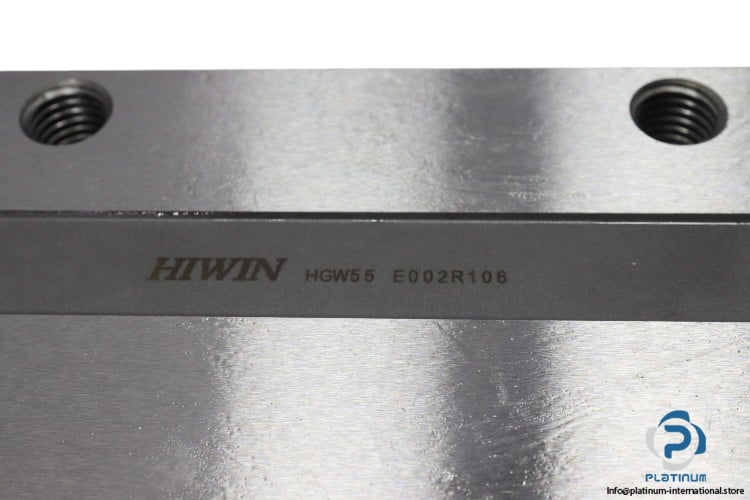

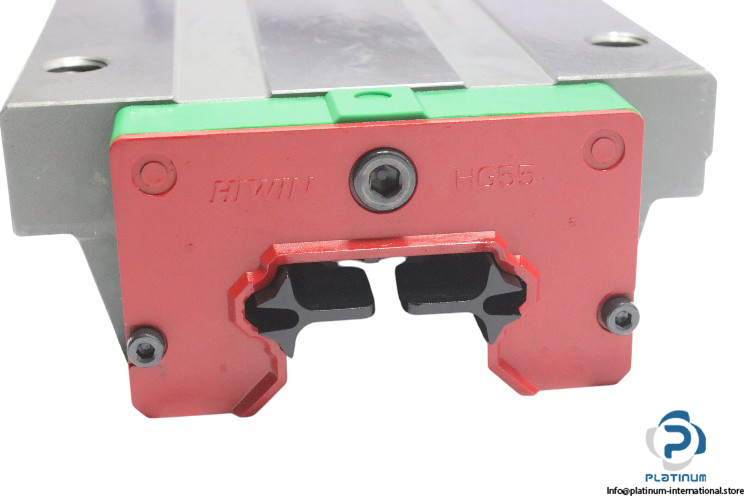

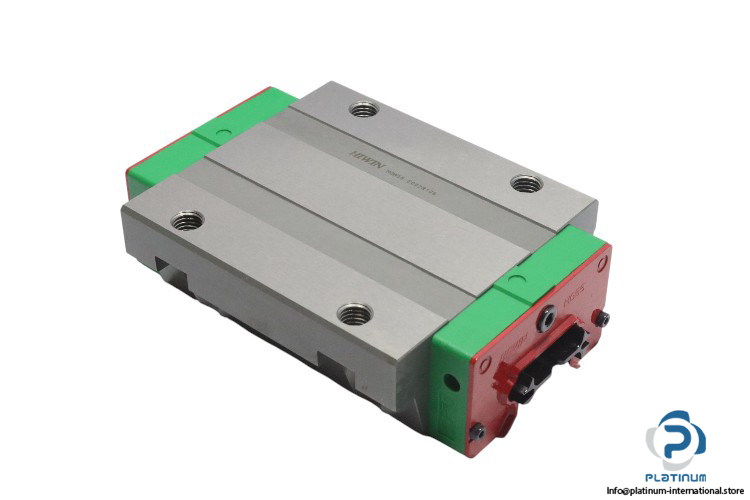

HIWIN HGW55HCH LINEAR GUIDEWAY BLOCK

The Hiwin HGW55HCH is a high-capacity linear guideway block engineered for super heavy load applications. Featuring a flange-type body, robust M14 threads, and precision-machined dimensions, this guideway block is ideal for demanding motion systems requiring high stiffness and accuracy.

Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW55HCH 82963-4

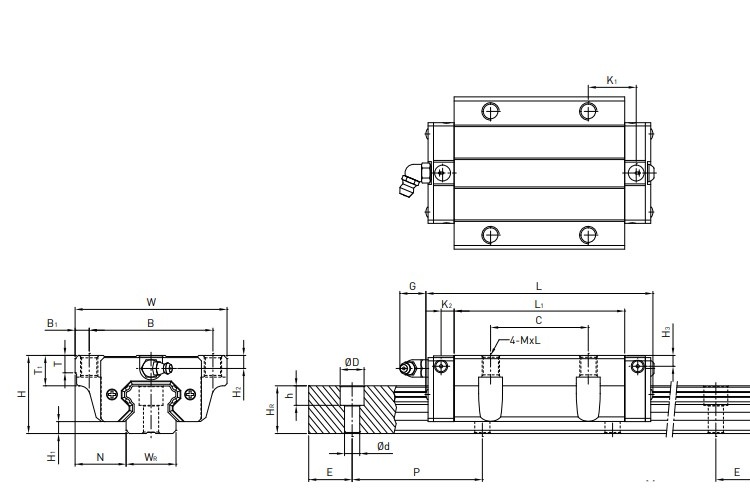

Technical Information

• Size: 55 mm
• Block Height: 57 mm
• System Height: 70 mm
• Block Width (W): 140 mm
• Block Length (L): 204.8 mm
• Thread Size: M14 x 45
• Distance Between Holes: 116, 95 mm
• Rail Width: 53 mm
• Rail Height: 44 mm
• Block Type: Flange
• Load Type: Super Heavy Load
• Block Mounting Type: Top or Bottom
• Basic Dynamic Load Rating: 184.9 kN
• Basic Static Load Rating: 276.23 kN
