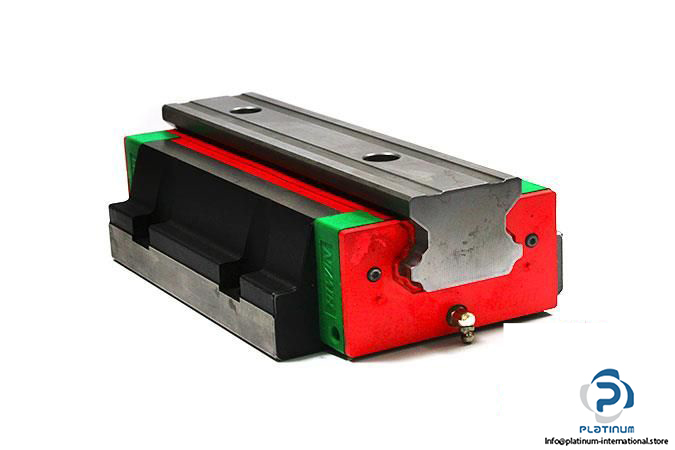

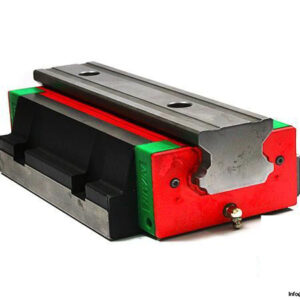

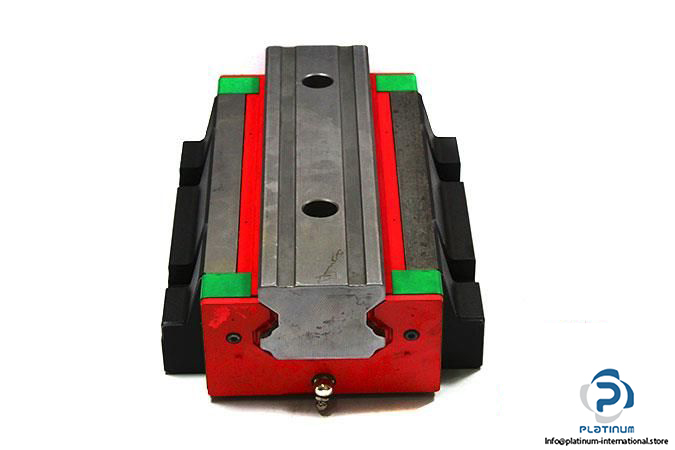

HIWIN HGW65HCC LINEAR GUIDEWAY BLOCK

Engineered for super heavy-load applications, the Hiwin HGW65HCC linear guideway block belongs to the HG Series and features high rigidity and precision. Designed with a flange-type body and dual mounting options, it offers optimal performance in demanding motion control systems.

Manufacturer: Hiwin
Type: Linear Guideway Block

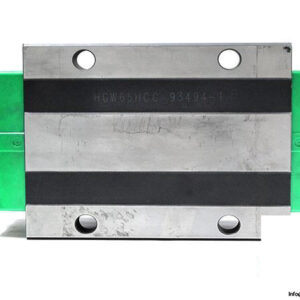

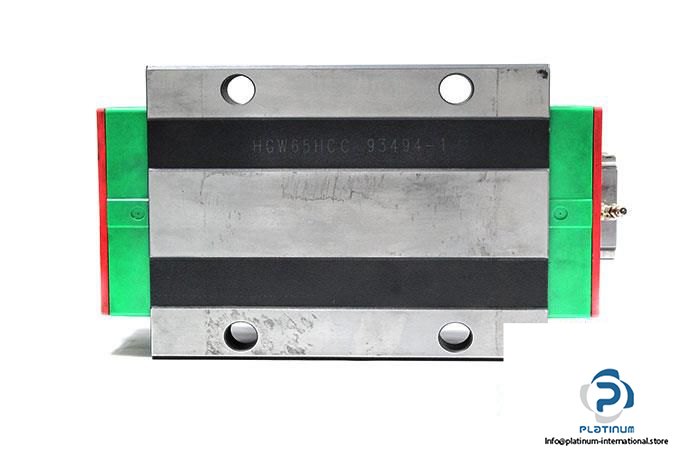

MNR: HGW65HCC 93494-1

Technical Information

• Size: 65 mm
• Block Height: 75 mm
• System Height: 90 mm
• Block Width (W): 170 mm
• Block Length (L): 259.6 mm
• Thread Size: M16 x 50
• Distances Between Holes: 142 mm, 110 mm
• Rail Width: 63 mm
• Rail Height: 53 mm
• Block Type: Flange
• Load Type: Super Heavy Load
• Block Mounting Type: Top or Bottom
• Series: HG Series; Heavy Load Ball Type Linear Guideway
• Basic Dynamic Load Rating: 277.8 kN
• Basic Static Load Rating: 420.17 kN
