Hiwin QHW30CC Linear Guideway Block
New
In stock12 unitsReady to ship
119,01$
LINEAR GUIDEWAY BLOCK
Heavy-load linear guideway block from HIWIN with SynchMotion Technology, 30 mm size, and high dynamic/static load ratings, ideal for precision and durability in demanding industrial motion systems.30BlockGuideGuidewayHeavyHiwinIndustrialLinearLoadmmMotionmountPrecisionQHQHW30CCrailSeriesSynchMotionTop
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

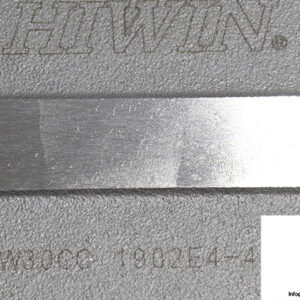

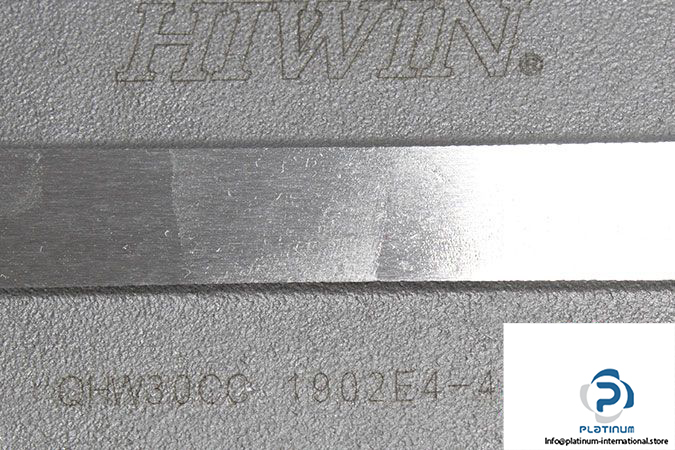

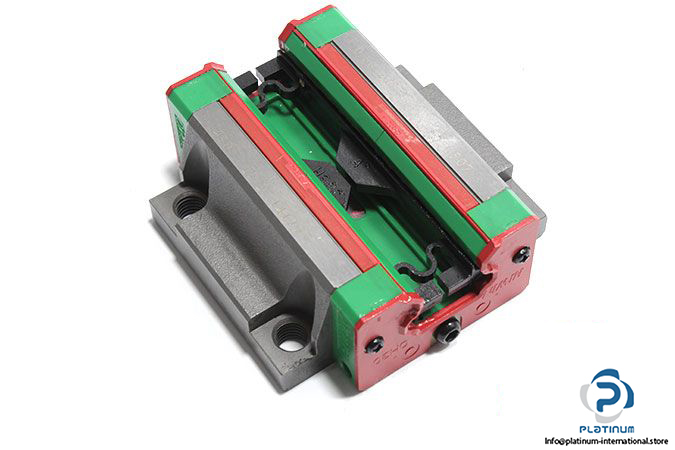

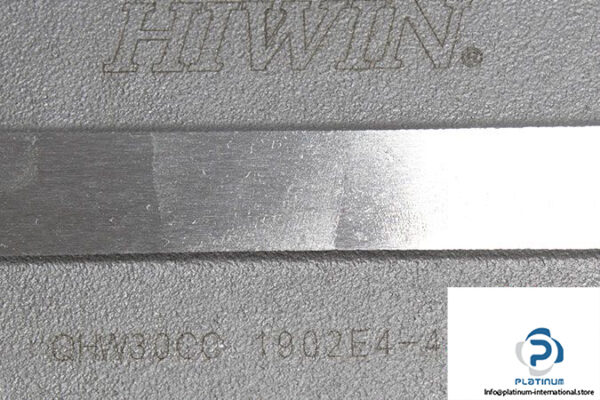

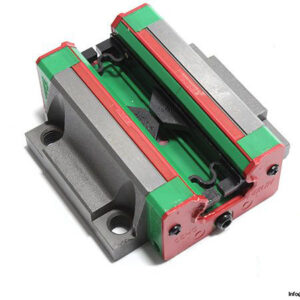

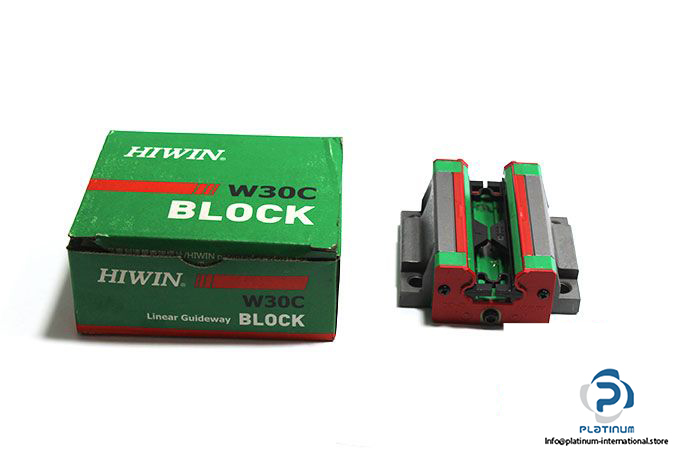

HIWIN QHW30CC LINEAR GUIDEWAY BLOCK
The HIWIN QHW30CC is a heavy-duty linear guideway block designed for high-load applications, offering smooth motion and superior stability. Part of the QH Series with SynchMotion Technology, it ensures low noise, low friction, and improved lubrication distribution for long-lasting performance in demanding environments.
Manufacturer: HIWIN
Type: Linear Guideway Block
Model: QHW30CC
MRN: QHW30CC 1902E4-40000
| Size | 30 mm |
| Total Height H | 42 mm |
| Block Width W | 90 mm |
| Block Length L | 97.4 mm |
| Block Height | 36 mm |
| Distance Between Holes | 72 mm, 52 mm |
| Basic Load Rating - Dynamic Cr | 46.4 kN |
| Basic Load Rating - Static C0r | 48.1 kN |
| Series | QH Series (Heavy Load Type, SynchMotion Technology) |
| Block Mounting | C (Top or Bottom) |
| Load Type | C (Heavy Load) |
