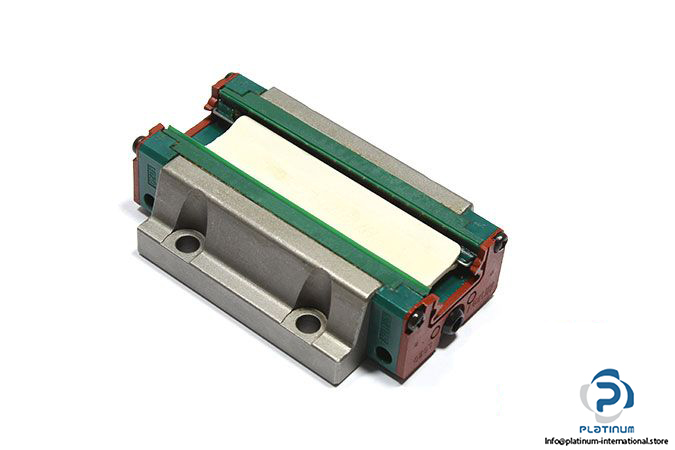

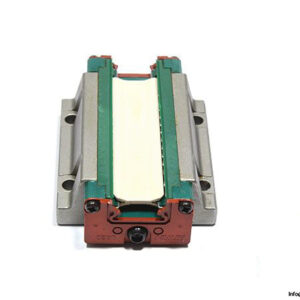

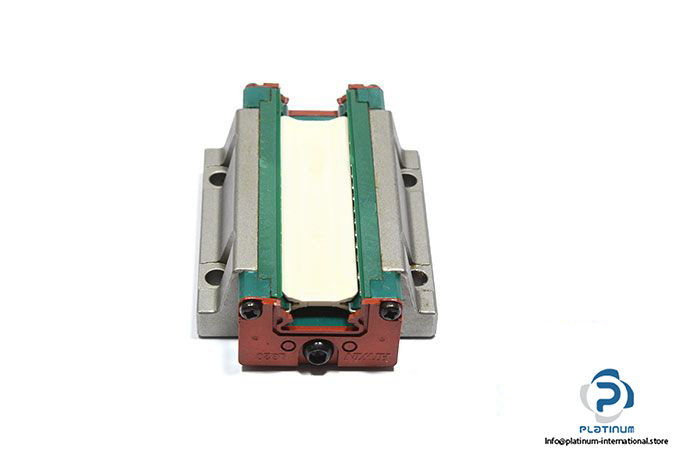

HIWIN LGW 20 HBH LINEAR GUIDEWAY BLOCK
The Hiwin LGW 20 HBH is a heavy-duty linear guideway block built for high-load and precision motion applications. Featuring a wide flange design and robust build, it is optimized for super heavy load support in automated and industrial linear movement systems.
Manufacturer: Hiwin
Type: Linear Guideway Block LGW

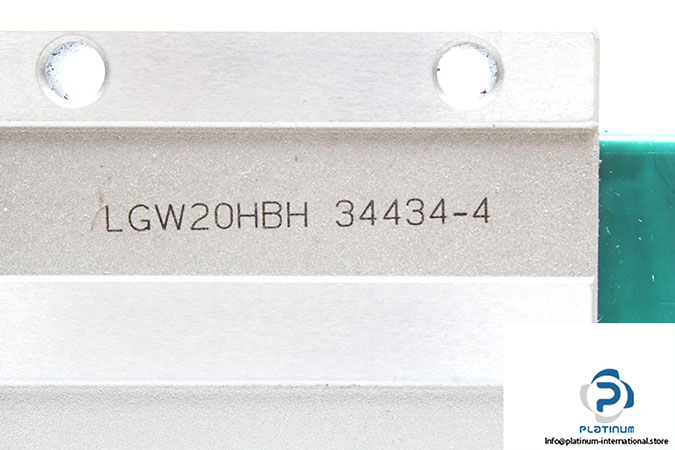

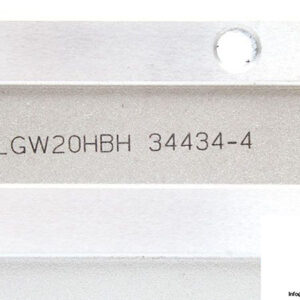

MNR: LGW 20 HBH
Size: 20 mm

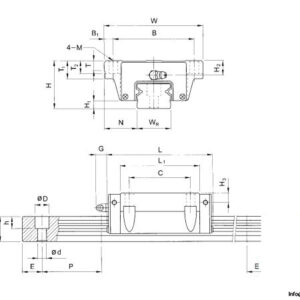

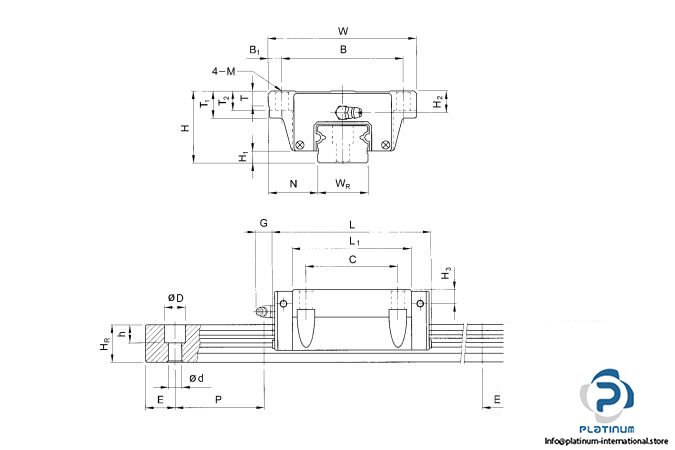

Technical Information
- Total Height (H): 30 mm
- Block Width (W): 63 mm
- Block Length (L): 91.6 mm
- Block Height: 25 mm
- Distance Between Holes: 53 mm, 40 mm
- Block Type: W; Flange Type
- Basic Dynamic Load Rating (Cr): 2100 kgf
- Basic Static Load Rating (C0r): 3400 kgf
- Load Type: H; Super Heavy Load
