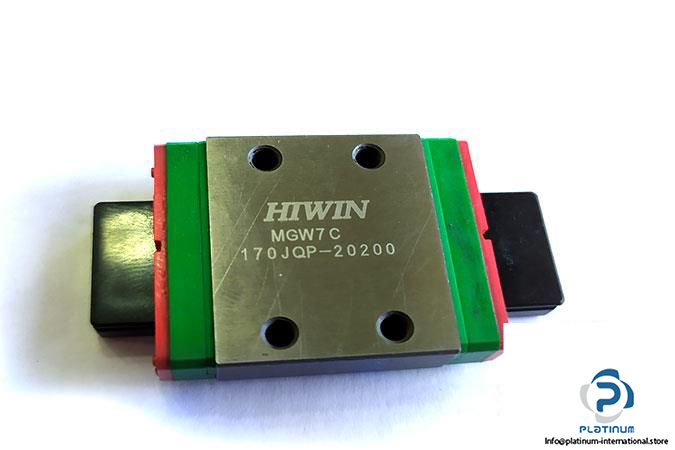

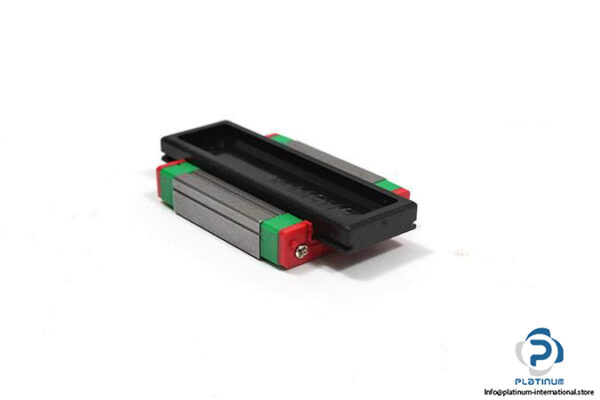

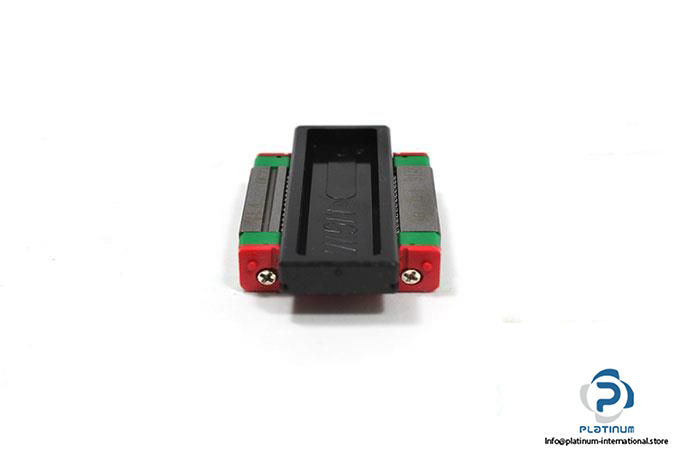

HIWIN MGW7C 170JQP-20200 LINEAR GUIDEWAY BLOCK
The Hiwin MGW7C 170JQP-20200 is a precision-engineered linear guideway block designed for compact linear motion systems. With high load ratings and a low-profile design, it is ideal for applications requiring smooth movement, accuracy, and durability in limited-space environments.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGW7C 170JQP-20200
Technical Information
- Size: 7 mm
- Block Height: 7.1 mm
- Block Width: 25 mm
- Block Length: 31.2 mm
- System Height: 9 mm
- Distance Between Holes: 19, 10 mm
- Rail Width: 14 mm
- Rail Height: 5.2 mm
- Block Type: Standard
- Thread Size: M3 x6
- Basic Dynamic Load Rating: 1.37 kN
- Basic Static Load Rating: 2.06 kN
