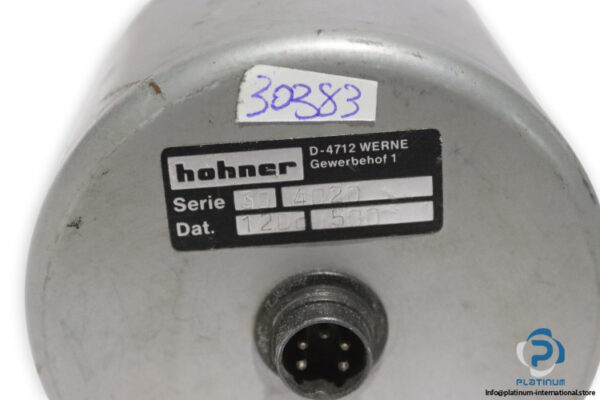

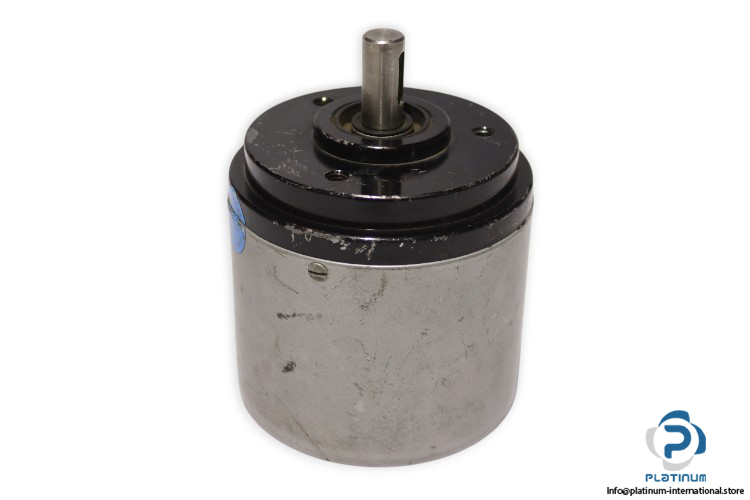

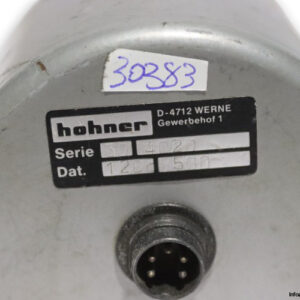

Hohner 304020 Incremental Encoder
The Hohner 304020 from the Series 30 is a robust incremental encoder designed for precision and reliability in automation systems. With 500 pulses per revolution, durable aluminum construction, and IP65 protection, it ensures accurate feedback and long service life in demanding industrial environments.
Manufacturer: Hohner
Type: Incremental Encoder
Model: 304020
Series: 30
Code: 12 Do
Technical information
- Protection: IP65
- Output Signal: AB
- Shaft: 12 mm
- External Diameter: 90 mm
- Pulses: 500 ppr
- Temperature Range: -20 to +80 °C

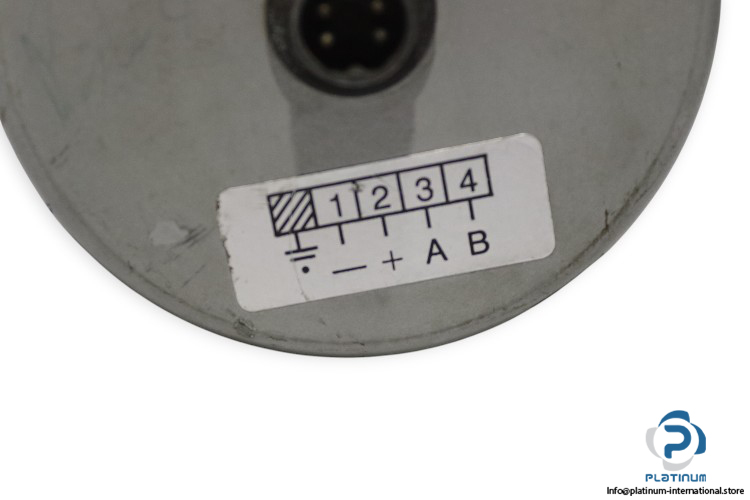

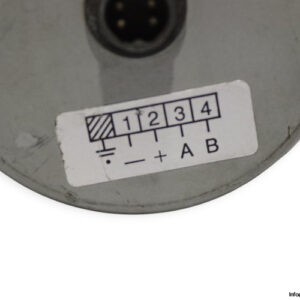

- Connections: 2, 9414 radial
- Output Circuits: NPN 5/24 V
- Current: 40 mA
- Length of Cable (allowed): 50 m
- No. of Revolutions Permitted: 6000 rpm
- Materials: Cover “ Aluminium, Housing “ Aluminium, Shaft “ Stainless Steel
- Bearings Lifetime: 1 × 1010 revolutions
