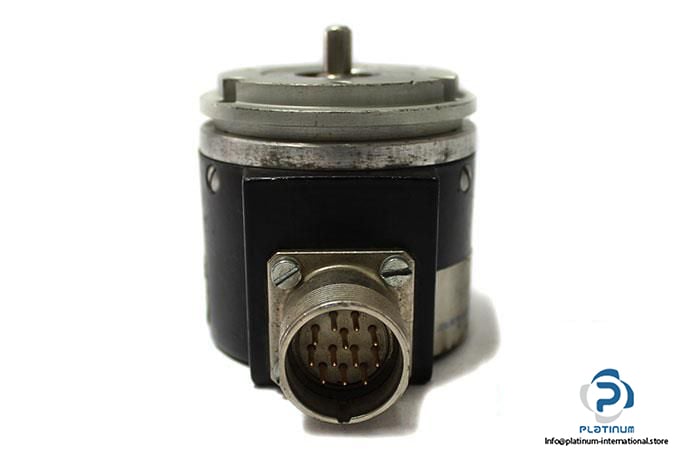

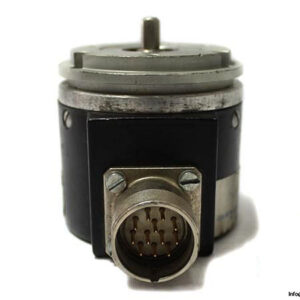

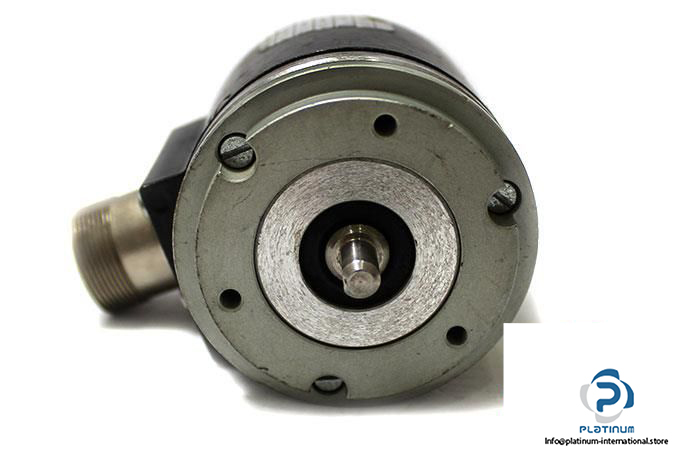

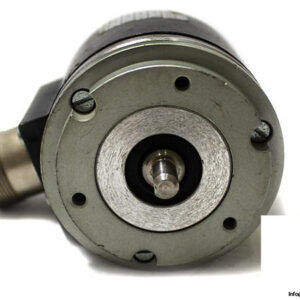

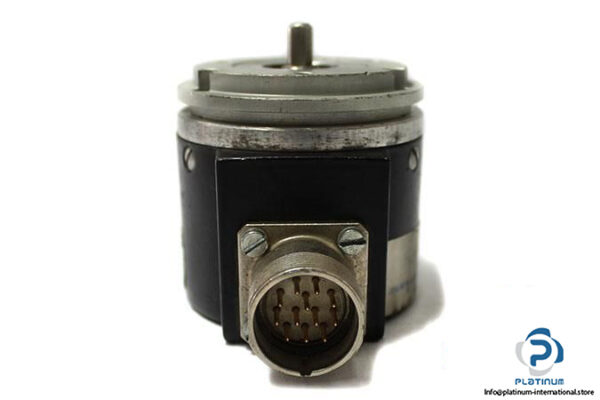

HOHNER AWA58S-062R125G0-256 ABSOLUTE ENCODER

Designed for high-precision industrial motion control, the HOHNER AWA58S-062R125G0-256 Absolute Encoder offers robust build quality and reliable performance under demanding conditions. This encoder ensures accurate signal output and resistance to environmental stress, making it ideal for automation systems.

Manufacturer: HOHNER
Type: Absolute Encoder
Model: AWA58S-062R125G0-256

Technical Information

• Shaft Diameter: 6 mm
• Shaft Design: Stainless Steel Solid
• Resolution: 256 Pulse per Revolution
• Voltage Supply: 10 / 30 VDC
• Output Current: 30 mA
• Output Circuit: PNP
• Counting Direction: Left
• Output Code: Gray (beginning with 0)
• Max Speed: 6,000 U/min
• Max Pulse Frequency: 25 kHz
• Protection Class: IP 65
• Flange: Aluminium
• Housing: Zinc Die-Casting
• Shaft: Stainless Steel
• Temperature Range: -30 / 70 °C
