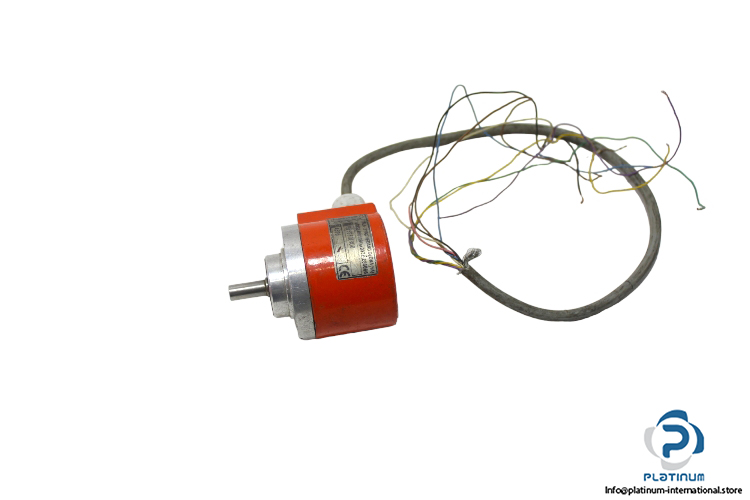

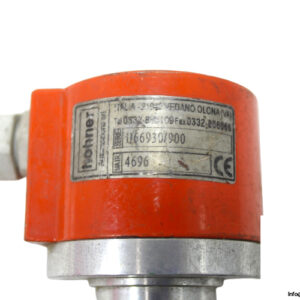

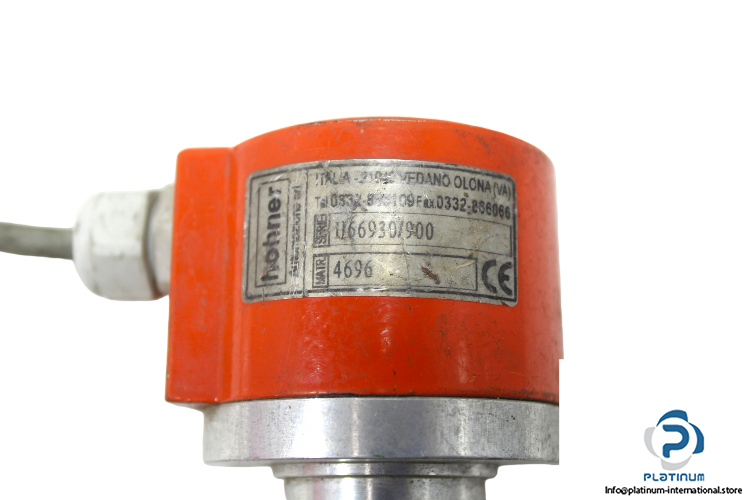

HOHNER H66930/900 ROTARY ENCODER
The Hohner H66930/900 is a high-precision rotary encoder engineered for demanding industrial environments. With its solid shaft and high resolution of 900 pulses per revolution, this encoder delivers accurate incremental positioning. Built with a robust IP67 protection degree and square flange, it offers durability and flexible integration into automation systems.
Manufacturer: Hohner
Type: Rotary Encoder
Model: H66930/900
Part No.: 4696
Technical Information
- Power Supply: 11 / 28 V
- Principle of Operation: Incremental
- Shaft Type: Solid Shaft
- Resolution: 900 ppr
- Shaft Diameter: 8 mm
- Protection Degree: IP67
- Flange: DIA 63.5 mm Square Flange with 4×5.5 mm Holes
- Output Type: Cable (5 Wires)
