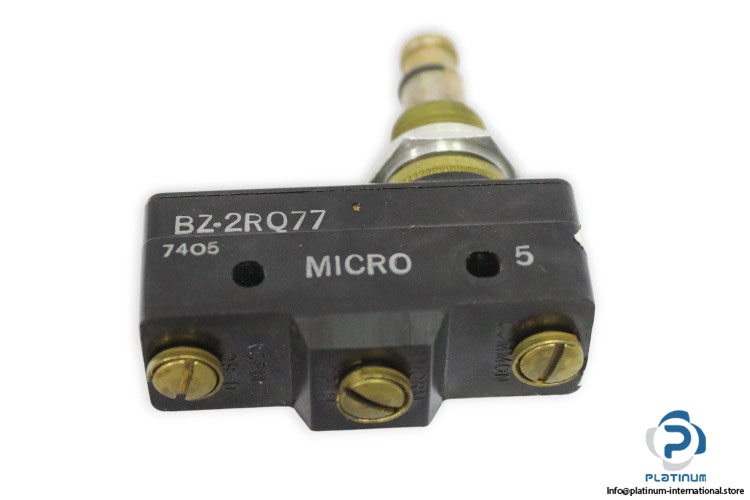

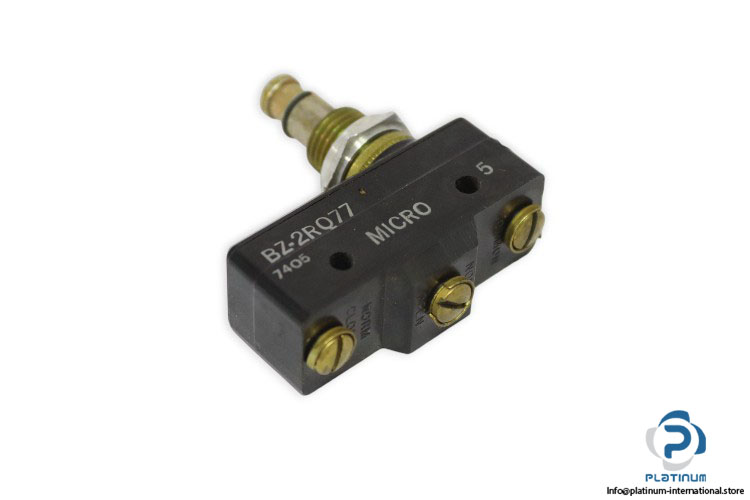

Honeywell BZ2RQ77 Micro Switch
The Honeywell BZ2RQ77 Micro Switch from the BZ series is a robust and reliable switching component designed for precision control in industrial and electrical systems. Featuring SPDT contact configuration, high current ratings, and durable construction, it is engineered to operate in demanding environments with stable performance.
Manufacturer: Honeywell
Type: Micro Switch
Model: BZ2RQ77
Ref. code: 7405 / L74
Series: BZ
Technical Information

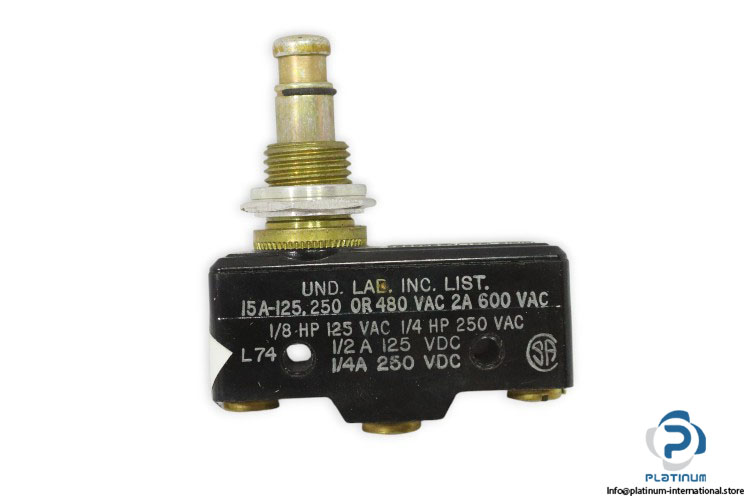

- Contact Ratings: 15A at 125/250 VAC/480 VAC, 2A at 600 VAC, 1/8 HP at 125 VAC, 1/4 HP at 250 VAC, 1/2A at 125 VDC, 1/4A at 250 VDC
- Contacts Configuration: SPDT
- Max. Contact Resistance: 15 mohm
- Switching Method: ON-(ON)
- Number of Positions: 2
- Stable Positions Number: 1
- IP Rating: IP40
- Body Dimensions: 49.3 x 17.5 x 24.1 mm
- Operating Temperature: -55 to 85°C
