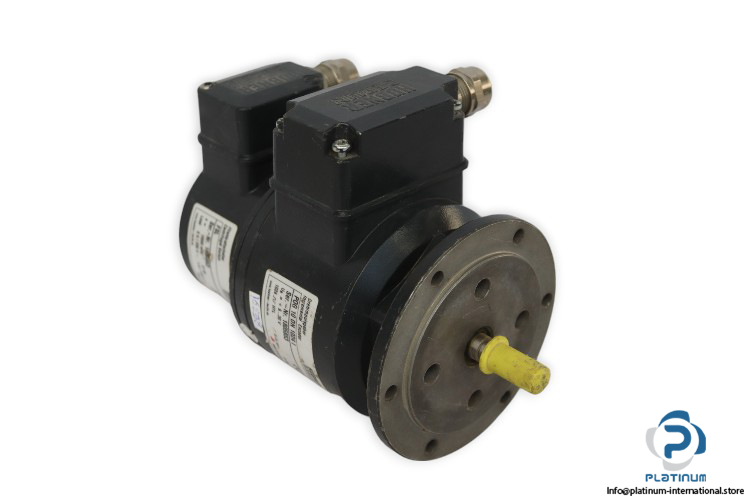

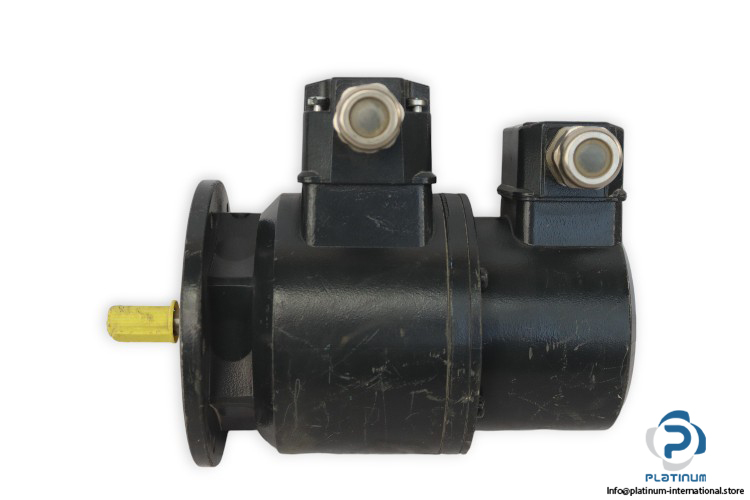

HUBNER BERLIN POG10 DN 1024 I INCREMENTAL ENCODER WITH FSL CENTRIFUGAL SWITCH

The Hubner Berlin POG10 DN 1024 I is a precision-engineered incremental encoder built for high-performance industrial applications. It offers optical sensing with high pulse resolution, rugged construction, and extended temperature tolerance, making it ideal for demanding automation environments. This model includes a robust FSL centrifugal switch attachment for added control functionality.

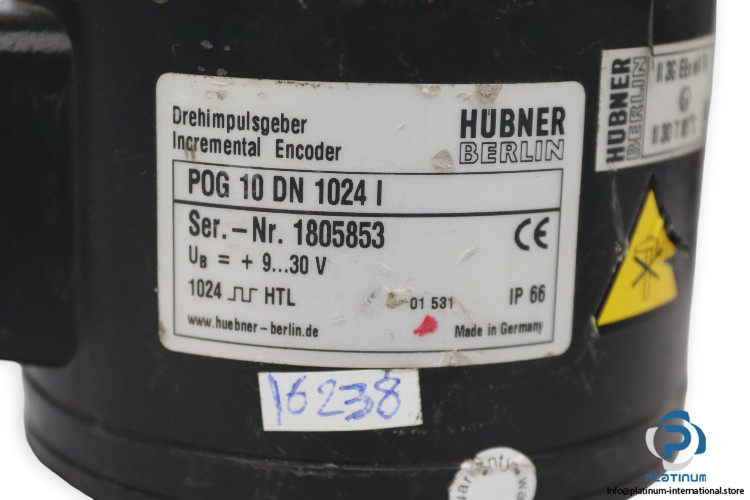

Manufacturer: Hubner Berlin
Type: Incremental Encoder
Model: POG10 DN 1024 I
Serial No.: 1805853

Technical Information

• Power Supply: 9 / 30 V DC
• Consumption Current: ‰¤ 100 mA
• Principle of Operation: Incremental
• Shaft Type: Solid Shaft
• Flange: EURO Flange B10
• Sensing Method: Optical
• Output Stage: HTL
• Output Frequency: ‰¤ 120 kHz
• Pulses Per Revolution: 1024
• Operating Speed: ‰¤ 12000 rpm
• Shaft Diameter: 11 mm
• Size (Flange): DIA 115 mm
• Protection Degree: IP66
• Material: Housing: Aluminum Die-Cast, Shaft: Stainless Steel
• Connection: Terminal Box
• Operating Temperature: -40 / +100 °C

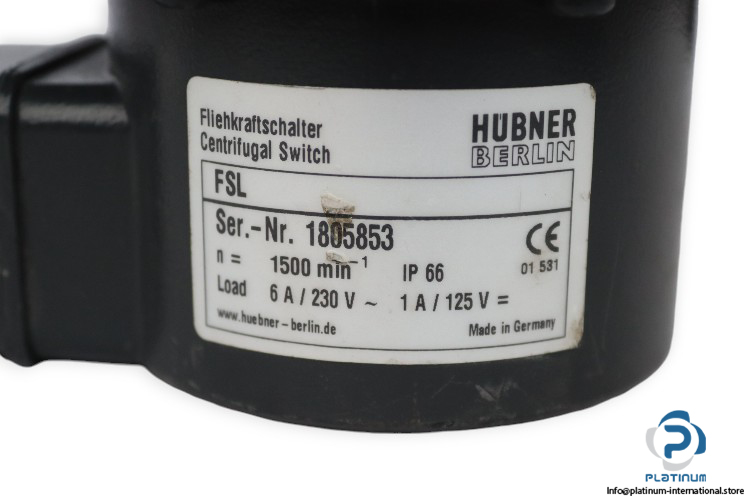

Attachment: HUBNER FSL CENTRIFUGAL SWITCH

• Model: FSL
• Serial No.: 1805853
• Load: 6 A / 230 VAC, 1 A / 125 V DC
• Speed: 1500 rpm
• Protection Degree: IP66
