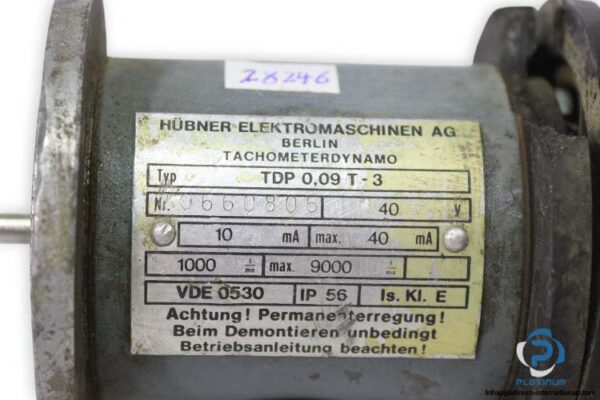

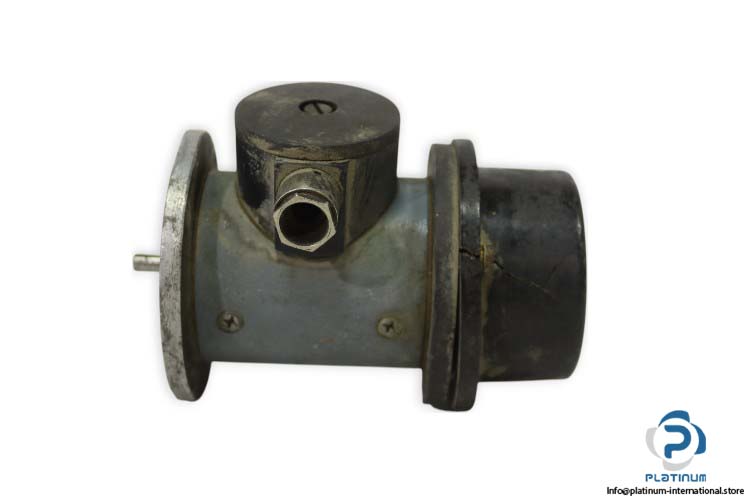

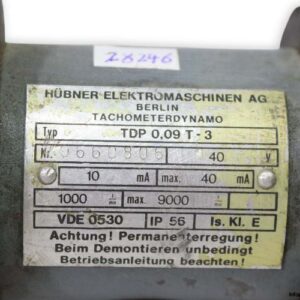

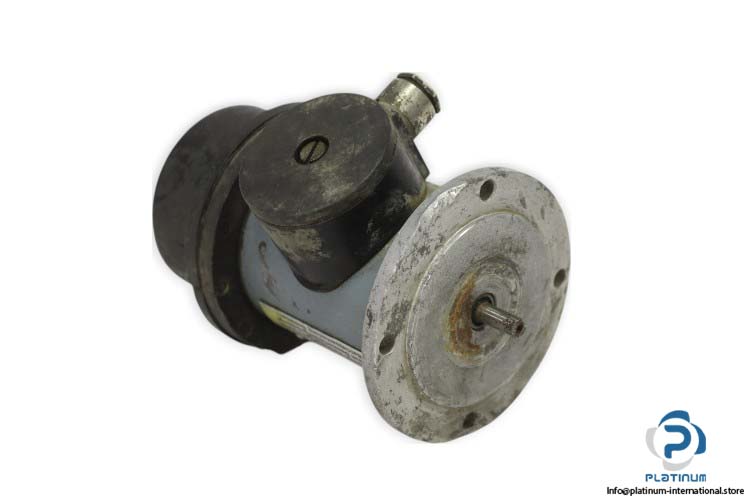

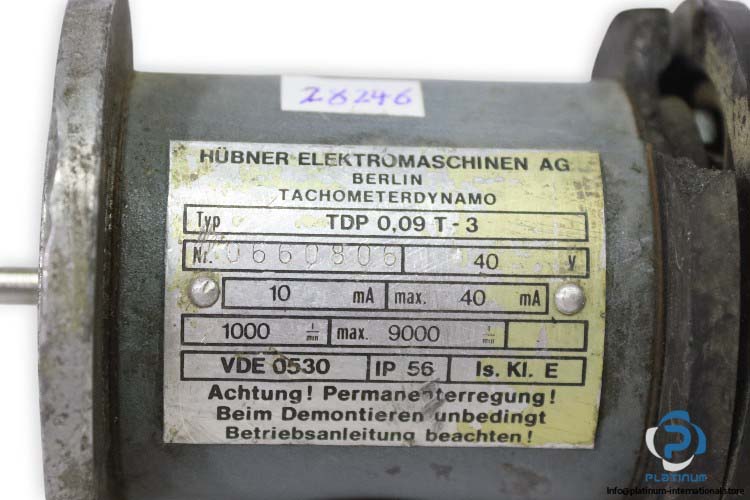

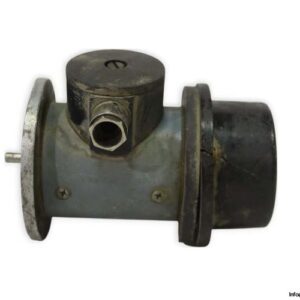

HUBNER TDP 0,09 T-3 TACHOGENERATOR
The HUBNER TDP 0,09 T-3 is a high-performance tachogenerator engineered for reliable speed monitoring and feedback in industrial systems. Built with durable materials and a compact design, this unit offers accurate voltage output across a wide operating speed range. Designed to endure harsh environments with IP56 protection, it is ideal for use in demanding automation applications.
Manufacturer: HUBNER
Type: Tachogenerator
Model: TDP 0,09 T-3
Ref No.: 0660806
Technical Information
- Open-Circuit Voltage: 10…60 mV per rpm
- Size (Flange): 85 mm
- Shaft Type: 6 mm Solid Shaft
- Protection: IP 56
- Operating Speed: 9000 rpm
- Performance: 1.2 W (Speed ‰¥3000 rpm)
- Torque: 1.5 Ncm
- Material:
- Housing: Stainless Steel / Plastic
- Shaft: Stainless Steel
- Connection: Terminal Box
- Operating Temperature: -30…130 °C
