Motion Control Tachogenerators

Hubner Berlin TDP 0,2 LT-4 Long Life-Tachogenerator

Name: HUBNER BERLIN TDP 0,2 LT-4 LONG LIFE-TACHOGENERATOR
SKU: 1044080
Price: 499.99 USD
Availability: LimitedAvailability

hubner-berlin-TDP-0.2-LT-4-long-life-tachogenerator-(new)

hubner-berlin-TDP-0.2-LT-4-long-life-tachogenerator-(new)-1

hubner-berlin-TDP-0.2-LT-4-long-life-tachogenerator-(new)-2

New

Available on request

499,99$

TACHOGENERATOR

Hubner Berlin TDP 0,2 LT4 long life-tachogenerator with 60 V ± 1% / 1000 min»¹ supply, 9000 min»¹ max speed, solid shaft, 115 mm flange, IP55 protection, and -30 to +130 °C operating range.

Manufacturer

HUBNER BERLIN

SKU

1044080

Category

Tachogenerators

Condition

New

0 0530 2 60V 9000 B10 Berlin Euro Flange Hubner Industrial IP55 Life long LT4 Min shaft stainless Steel Tachogenerator TDP VDE

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

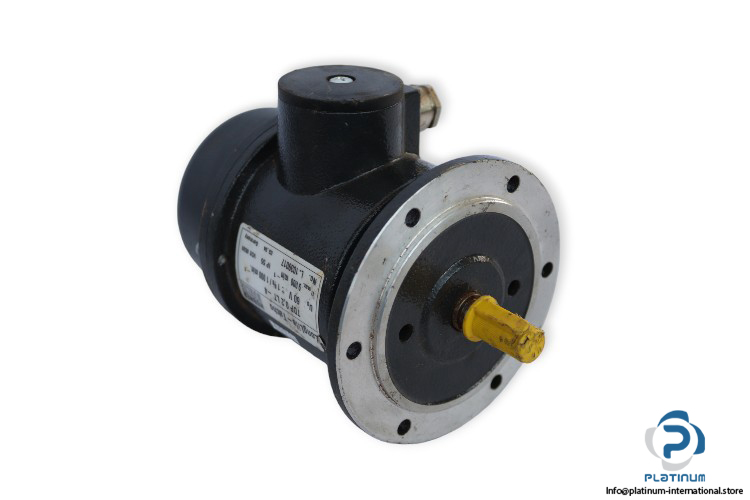

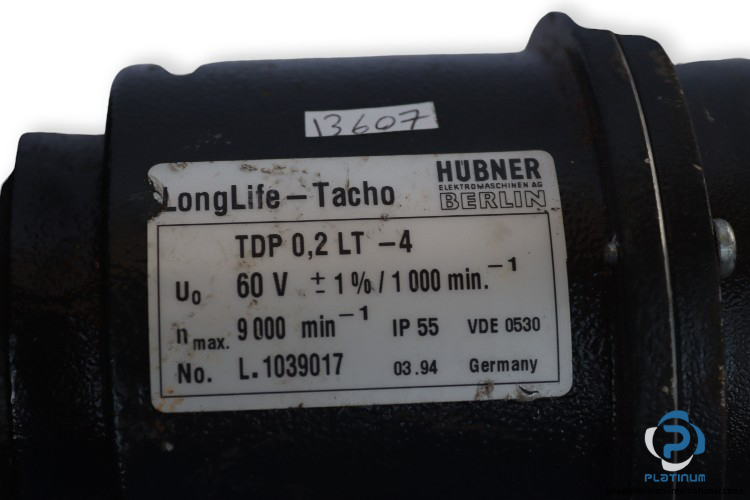

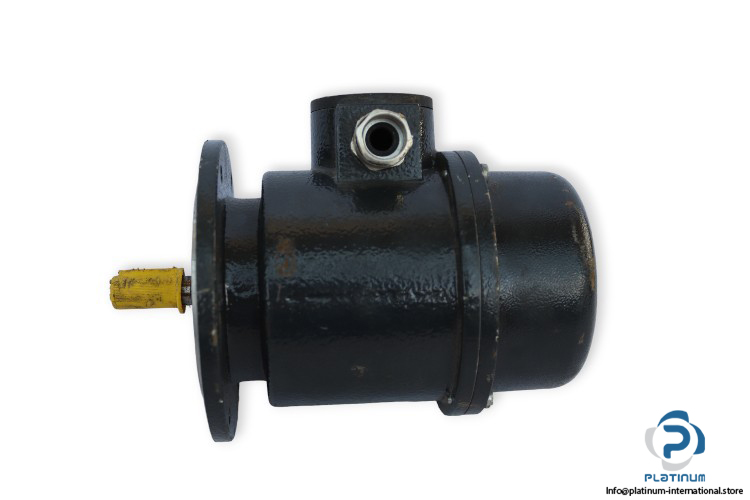

Hubner Berlin TDP 0,2 LT4 Long Life-Tachogenerator

The Hubner Berlin TDP 0,2 LT4 is a precision long life-tachogenerator designed for reliable speed feedback in demanding industrial environments. Built with a robust aluminum die-cast housing, stainless steel shaft, and Euro flange B10 design, it offers accurate performance, durability, and long service life.

Manufacturer: Hubner Berlin

Type: Long Life-Tachogenerator

Model: TDP 0,2 LT4

Supply Voltage	60 V ± 1% / 1000 min»¹
Maximum Operating Speed	9000 min»¹
Shaft Type	Solid shaft
Torque	1.5 Ncm
Size (Flange)	115 mm
Connection	Terminal box
Armature Resistance	99 Î©
Armature Inductance	200 mH
Protection	IP55
Flange	EURO flange B10, Housing foot B3
Materials	Housing: Aluminum die-cast, Shaft: Stainless steel
Standard	VDE 0530
Operating Temperature	-30 / +130 °C
