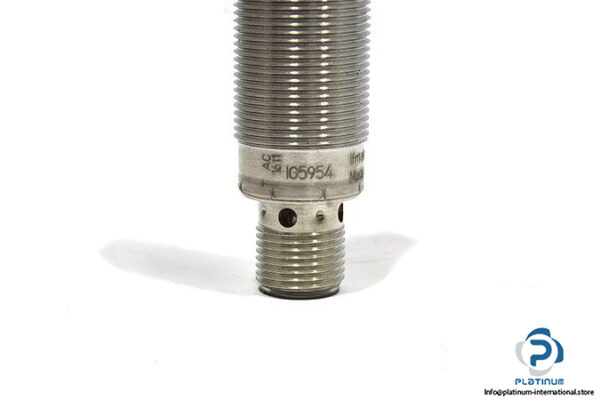

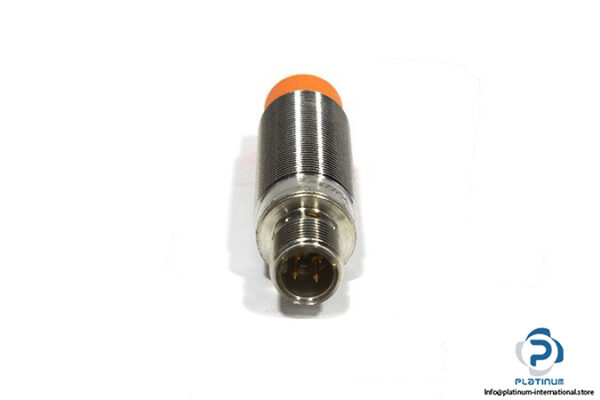

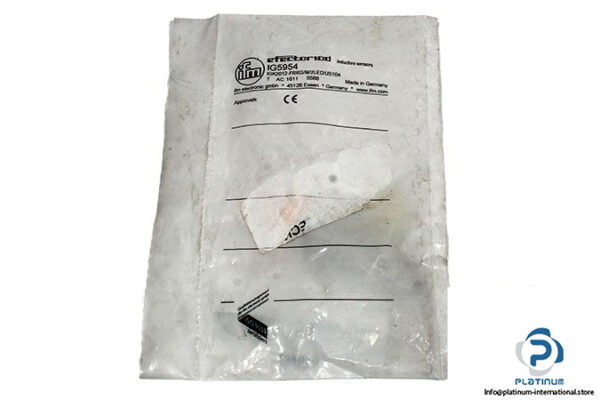

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IG5954

MRN: IGK2012-FRKG/M/2LED/US-104-IRF

Sensing Range: 12 mm

Operating Distance: 0 … 9.7

Operating Voltage: 10 … 36 V DC

Switching Frequency DC: 250 Hz

Switching Output Current: 100 mA DC

Max. Voltage Drop: 4.6 V

Minimum Load Current: 4 mA

Electrical Design: PNP/NPN

Output Function: Normally Open and Normally Closed; (Selectable)

Protection Class: II

Enclosure Rating: IP68

Housing:  Threaded Type

Electrical Connection: M12 4-Pin

Ambient Operating Temperature: -25 … 70 °C

Diameter, Housing Length: M18 x 1, 72 mm

Material: Brass White Bronze Coated; Sensing Face: PBT

Mounting: Non-Flush Mountable

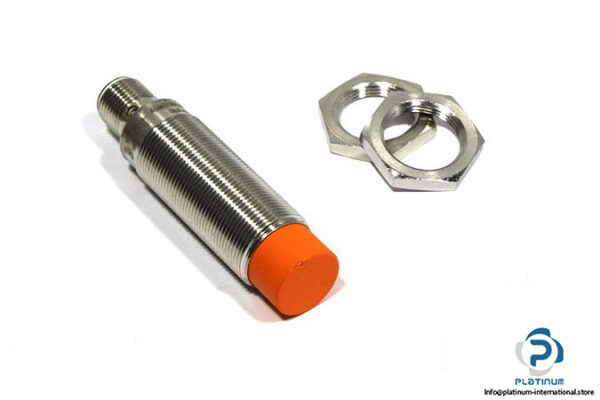

Supplied Accessories: Lock Nuts: 2

Weight: 0.05 kg
