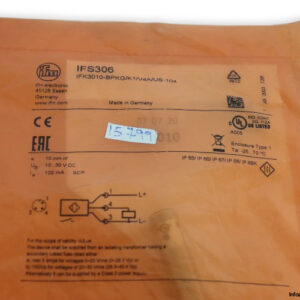

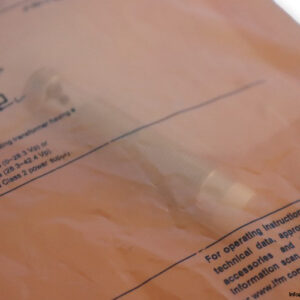

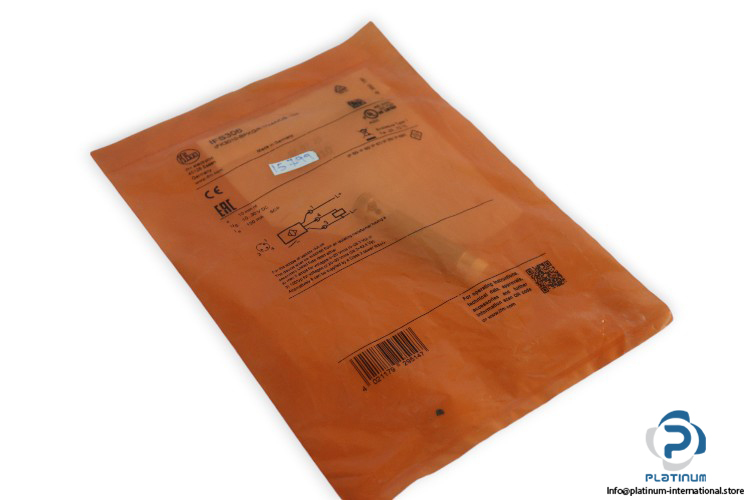

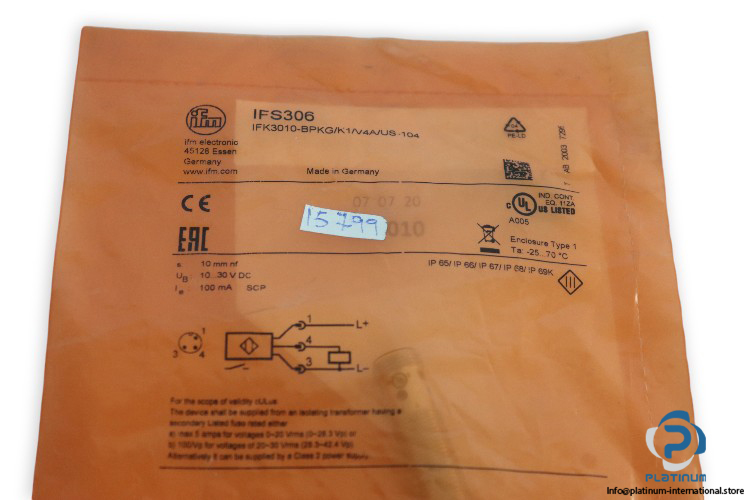

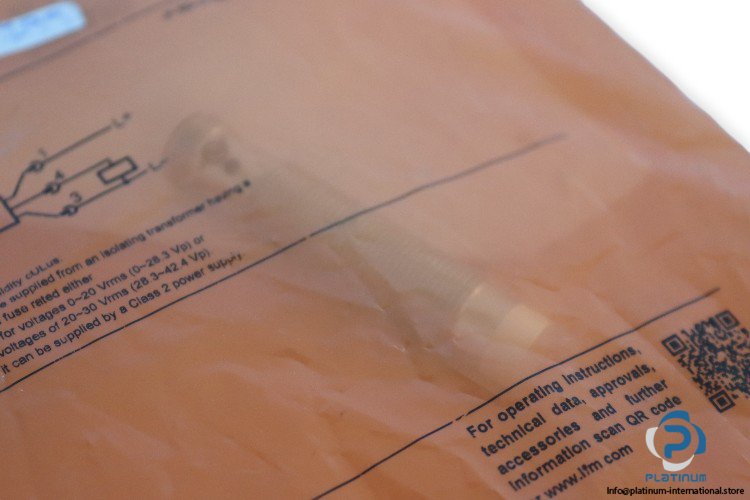

IFM IFS306 Inductive Sensor

Manufacturer: IFM
Type: Inductive sensor
Model: IFS306
MNR: IFK3010-BPKG/K1/V4A/US-104

Sensing Range: 10 mm
Real Sensing Range: 10 ± 10 % mm
Operating Distance: 0 … 8.1 mm
Operating Voltage: 10 … 30 V DC
Voltage Drop Max.: 2.5 V DC
Switching Output Current: 100 mA
Current Consumption: <20 mA
Switching Frequency: 2000 Hz DC
Electrical Design: PNP
Output Function: Normally Open
Connector Type: M12 Connector, Gold Plated
Protection Class: III
Enclosure Rating: IP 65; IP 66; IP 67; IP 68; IP 69K
Housing: Threaded Type
Ambient Operating Temperature: -25 … 70°C
Diameter, Housing Length: 12, 60 mm
Mounting: Non-Flush Mountable
