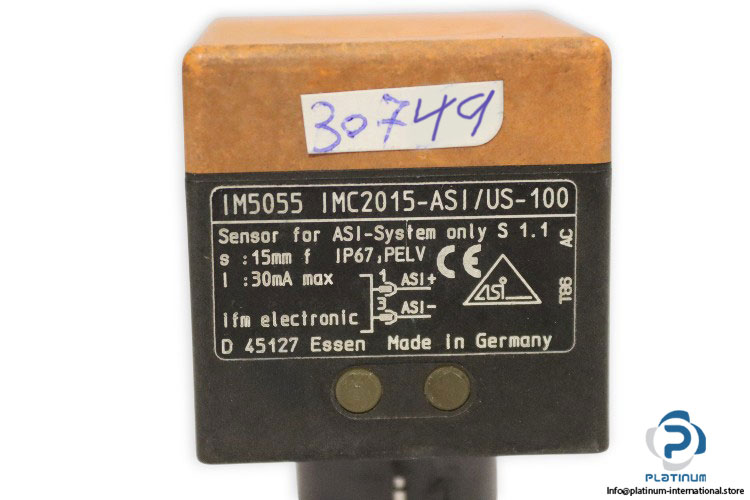

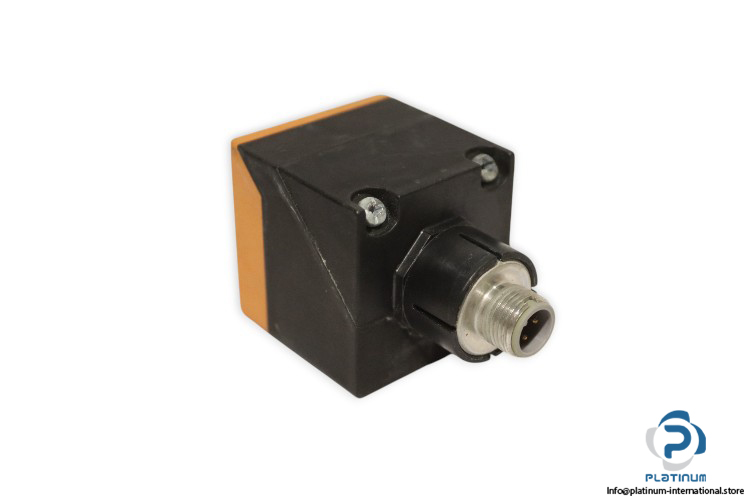

IFM IM5055 Inductive AS-Interface Sensor
The IFM IM5055 is a robust inductive AS-Interface sensor designed for reliable object detection in industrial automation systems. With a durable rectangular housing and precise sensing capabilities, it ensures long-term performance under demanding conditions.
Manufacturer: IFM
Type: Inductive AS-Interface Sensor
Model: IM5055
MRN: IMC2015-ASI/US-100
Technical Information
- Electrical Design: AS-i
- Operating Voltage [V]: 26.5…31.6 DC
- Ambient Temperature [°C]: -25…70
- Protection: IP67
- Current Consumption [mA]: 30
- Sensing Range [mm]: 15
- Housing: Rectangular

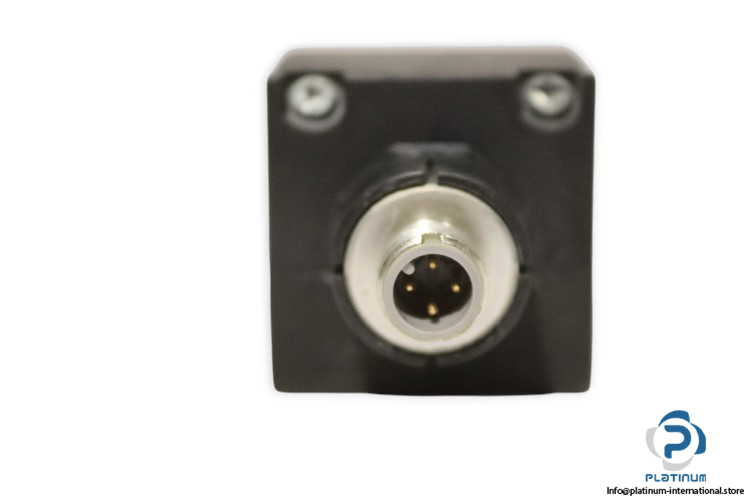

- Connection: Connector: 1 x M12; Coding: A
- Material: Housing: PBT; Sensing Face: PPE; Clamp: PPS
- Dimensions [mm]: 40 x 40 x 66
