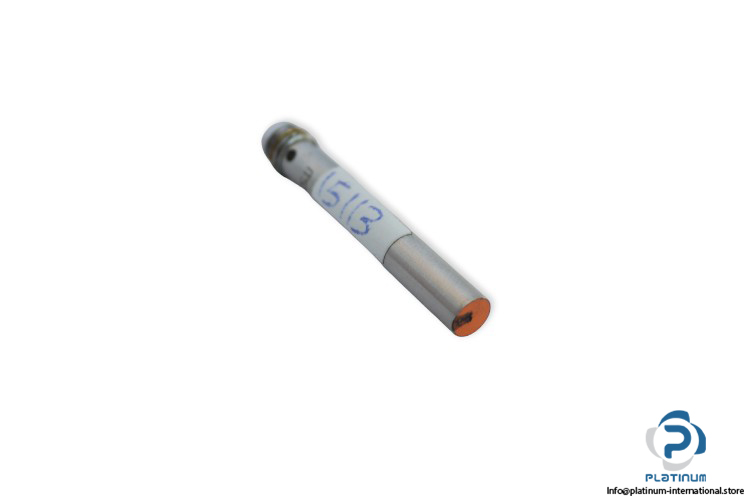

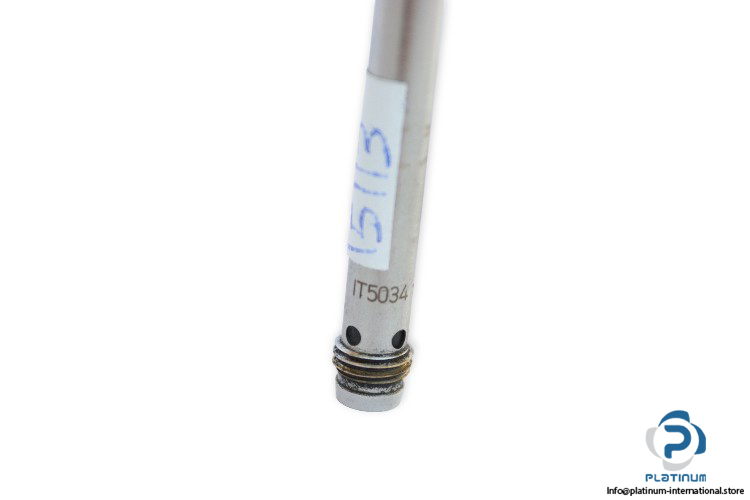

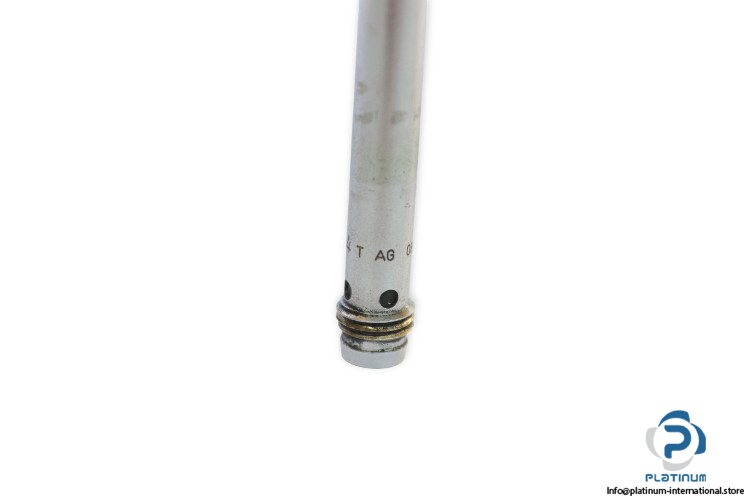

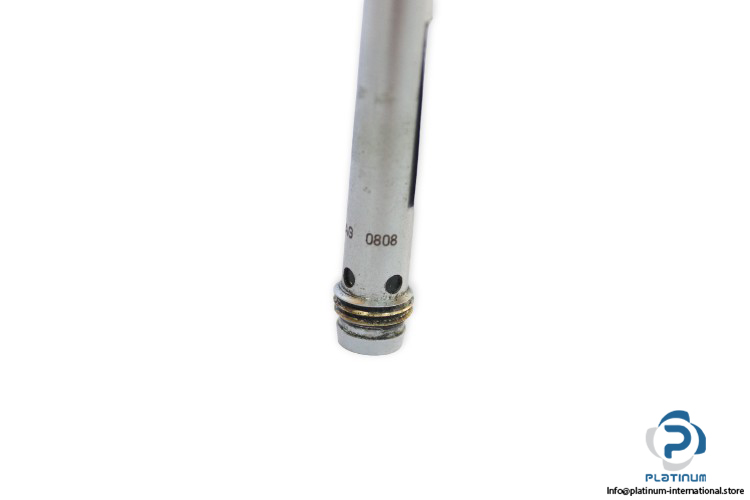

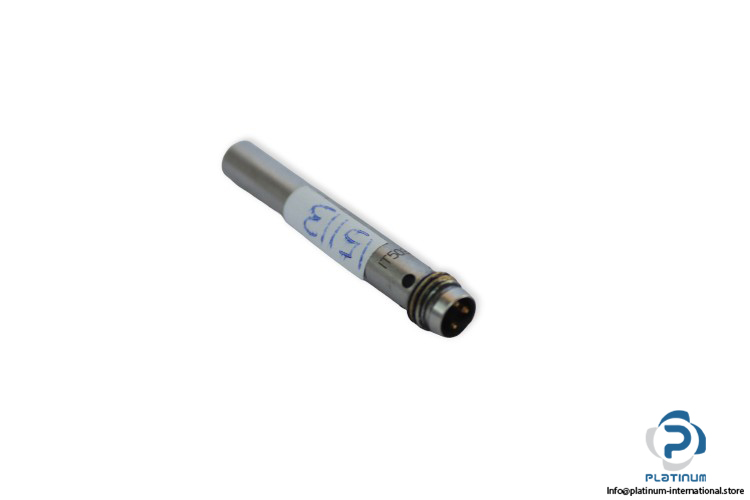

IFM IT5034 0808 Inductive Sensor

Manufacturer: IFM
Type: Inductive sensor
Model: IT5034
MNR: T AG 0808

Sensing range: 1.5 mm
Real sensing range: 1.5 ± 10 % mm
Operating distance: 0 … 1.22 mm
Operating voltage: 10 … 30 V DC
Permanent current rating of switching output DC: 100 mA
Electrical design: PNP
Output function: Normally open
Switching frequency DC: 1700 Hz
Enclosure rating: IP65
Ambient temperature: 0 … 60°C
Material: housing: brass special coating; sensing face: PBT orange; LED window: PPSU
Housing: cylindrical
Mounting: Flush mountable
Connection: Connector 1 x M8
Dimensions: Ø 6.5 / L = 50 mm
