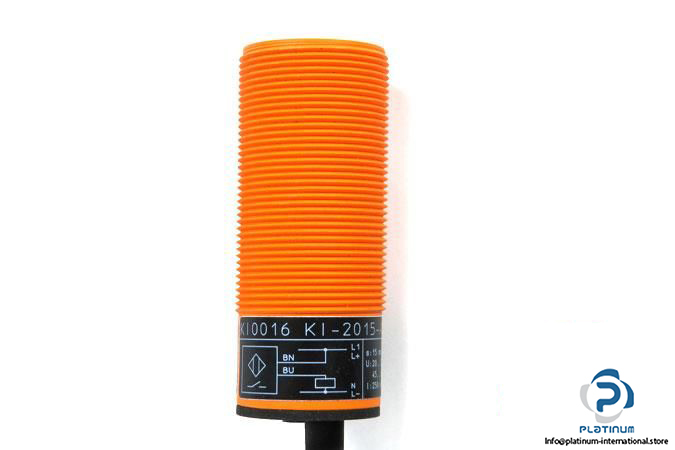

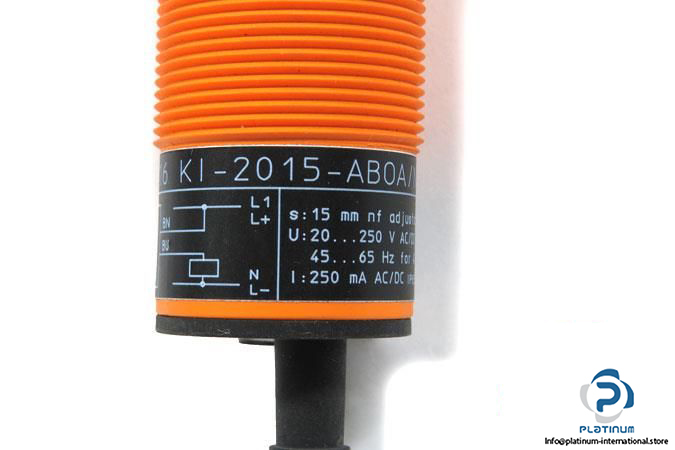

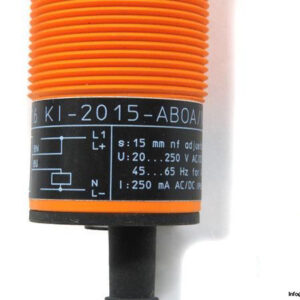

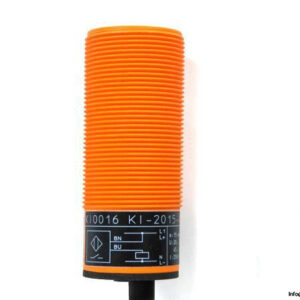

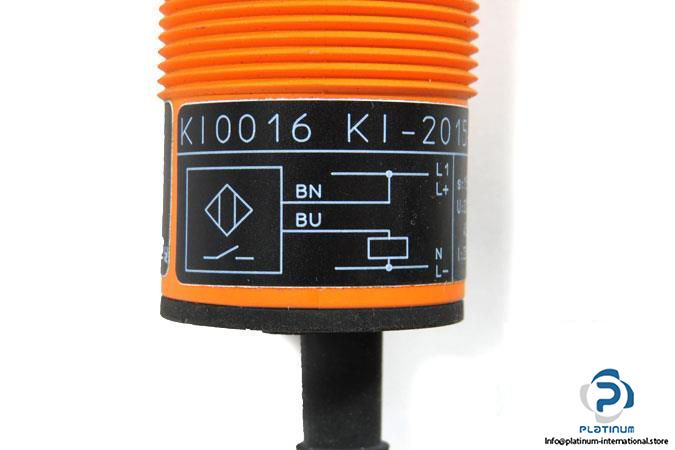

ifm KI0016 Capacitive Sensor

The ifm KI0016 Capacitive Sensor (model KI-2015-ABOA/NI) is designed for precise non-contact detection of solid and liquid materials. Featuring a robust threaded housing and IP65 protection, it ensures reliable operation under demanding industrial conditions. Ideal for automation systems, packaging machines, and level detection applications.

Manufacturer: ifm
Type: Capacitive Sensor
Part No.: KI0016
MRN: KI-2015-ABOA/NI

Technical Information

• Sensing Range: 15 mm
• Real Sensing Range: 15 ± 10% mm
• Operating Distance: 0 / 12.1 mm
• Operating Voltage: 20 / 250 V AC/DC, 45 / 65 Hz for AC
• Switching Output Current: 200 mA AC, 200 mA DC
• Switching Frequency (AC, DC): 25, 40 Hz
• Output Function: Normally Open
• Connector Type, Length: PVC Cable, 2 m
• Protection Class: II
• Enclosure Rating: IP65
• Housing: Threaded Type
• Ambient Operating Temperature: ˆ’25 / 70 °C
• Diameter, Housing Length: 30 mm, 81 mm
• Material: PBT
• Mounting: Non-Flush Mountable

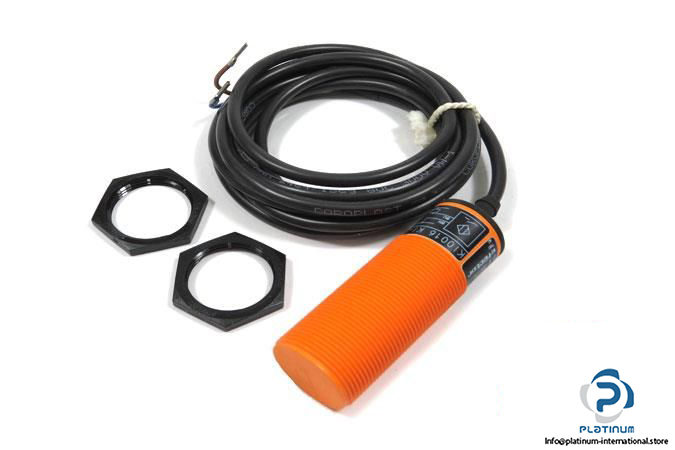

• Supplied Accessories: 2 Lock Nuts
