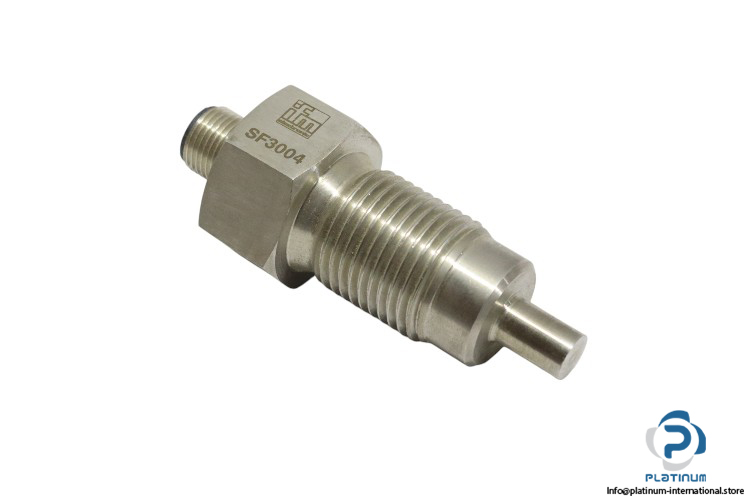

IFM SF3004 Flow Sensor for Connection to an Evaluation Unit
The IFM SF3004 (Part No. SFR12ABA/US-100) is a high-performance flow sensor designed for use with evaluation units in demanding applications. Suitable for both liquids and gases, it features a robust cylindrical housing, IP67 protection, and threaded G 1/2 connection for secure installation in high-temperature environments.
- Manufacturer: IFM
- Type: Flow sensor for connection to an evaluation unit
- Model: SF3004
- Part No.: SFR12ABA/US-100
- Comas Part No.: 0.422.390.003.004
Technical Information:
- Application: High-temperature range
- Process Connection: Threaded connection G 1/2 external thread
- Media: Liquids; Gases
- Medium Temperature: -25…80 °C
- Pressure Rating: 30 bar
- Degree of Protection: IP 67
- Housing: Cylindrical
- Probe Diameter: 7.7 mm
- Installation Length: 45 mm
- Items Supplied: Sealings: 2 x AMF 30

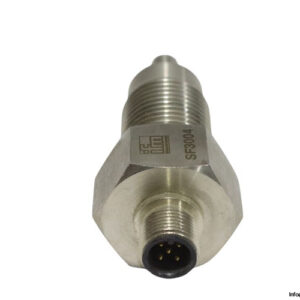

- Connection: Connector: 1 x M12; Coding: A; Maximum Cable Length: 100 m
