Manufacturer: IKO
Type: C-Sleeve Linear Way MH
Model: MHT 25
Size: 25 mm
Block Type: Flange type
mounting: from top

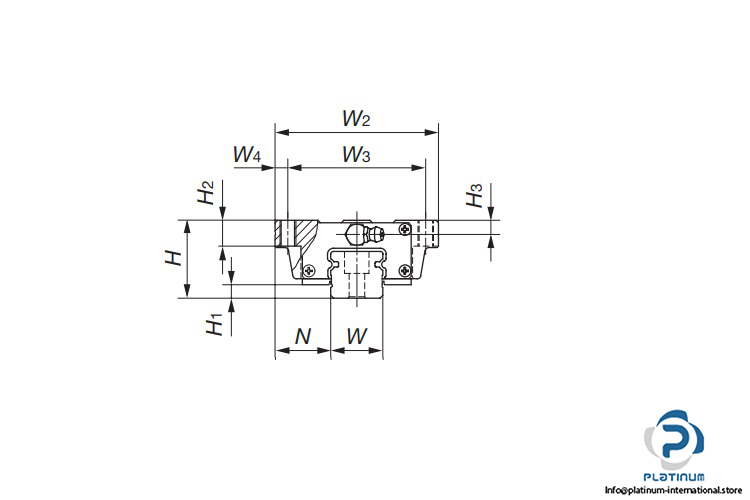

Dimensions
Block Length L1: 95 mm
Block Width W2: 70 mm
System Height H: 36 mm
Block Height: 29.5 mm
W3: 57 mm
L2: 45 mm
L3: 63.9 mm
N: 23.5 mm
Basic Load Ratings:
Dynamic C: 24100 N
Static C0: 31700 N
