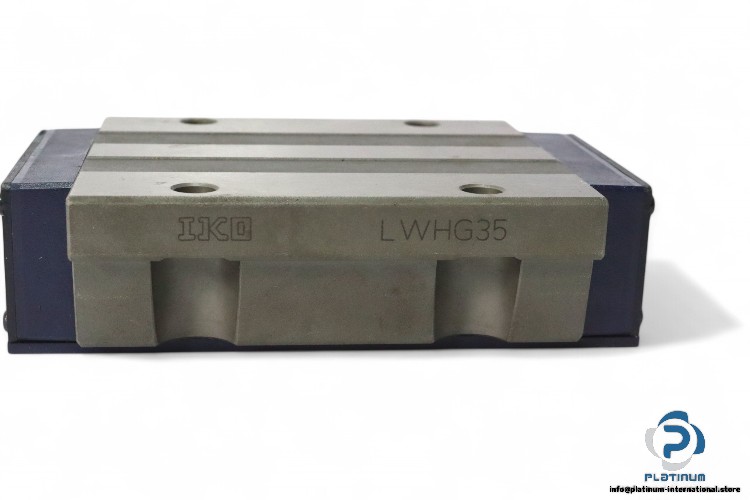

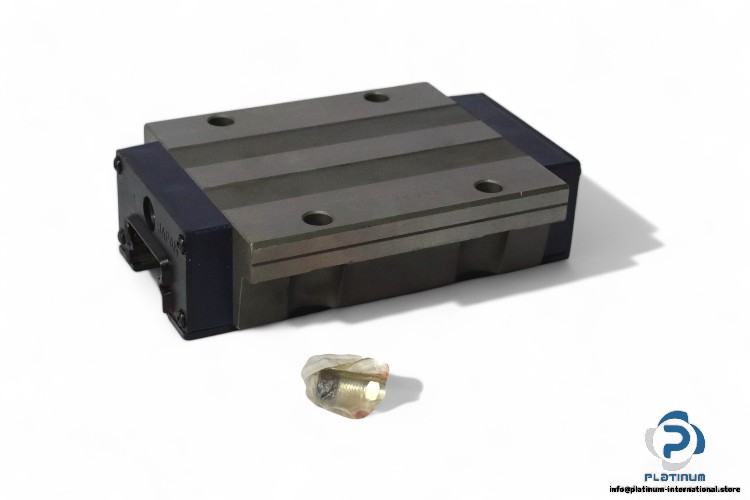

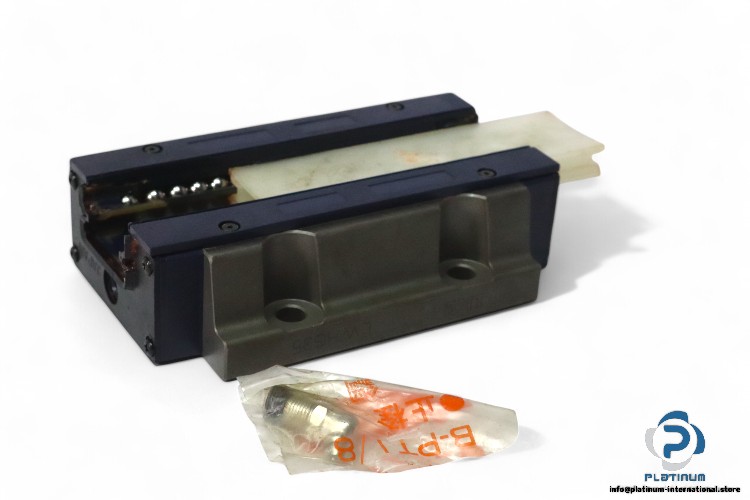

IKO LWHG35 Linear Guideway Block

Manufacturer: IKO
Type: LINEAR GUIDEWAY BLOCK
Model: LWHG 35

Size: 35

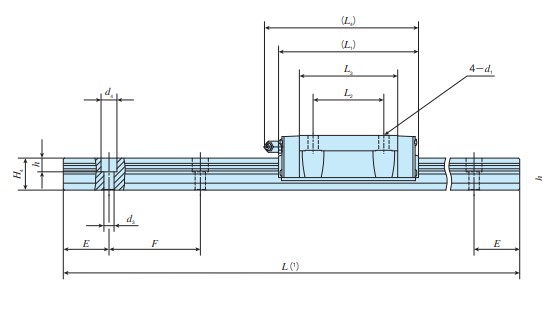

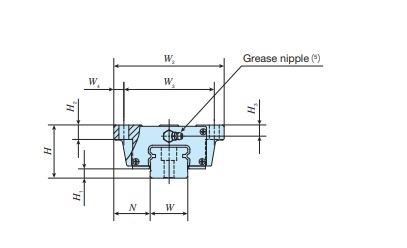

Dimensions
Total Height H: 48 mm
Block Width W₂: 100 mm
Block Length L₁: 151 mm
Block height: 40 mm
W₃: 82 mm
L₂: 62 mm
Basic Load Ratings:
Dynamic C: 59500 N
Static C₀: 71600 N
Static moment rating:
T₀: 1100 Nm
X axis T_x: 1090 Nm
Y axis T_y: 1000 Nm
Series: LWH, Flange type, mounting from bottom
Length of slide unit: G, High rigidity long
