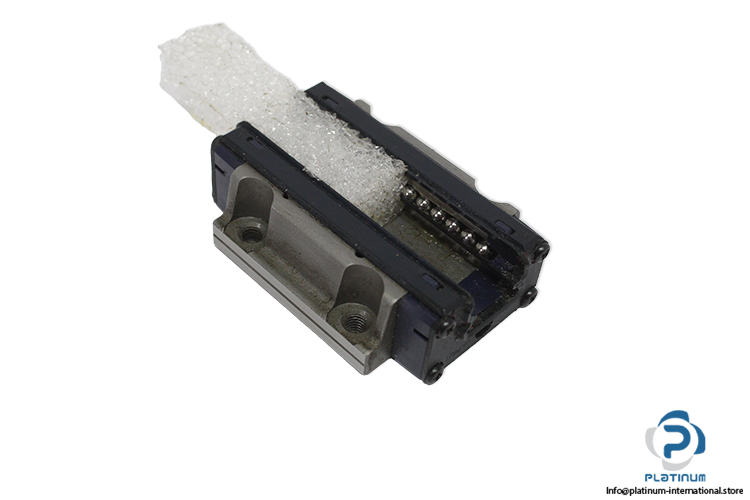

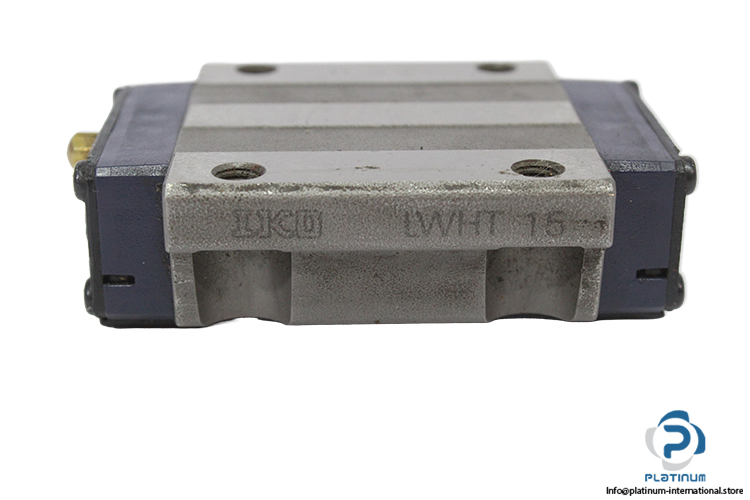

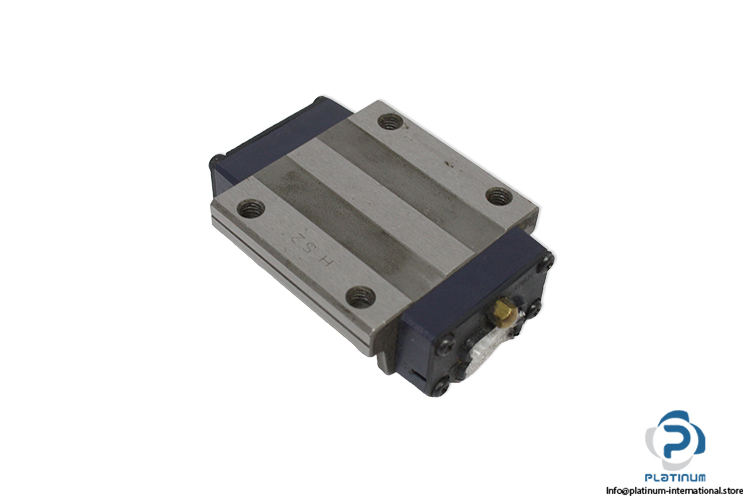

IKO LWHT15 Linear Guideway Block
Used
In stock2 unitsReady to ship
Linear Guideway Block IKO LWHT 15 Linear Guideway Block is a precision flange-type linear motion component with high load capacity, featuring 11600 N dynamic load rating and long slide unit design.
1515mmAutomationbearingBlockComponentFlangeGuideGuidewayHighIKOIndustrialLinearLoadLwhtMotionPrecisionType
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

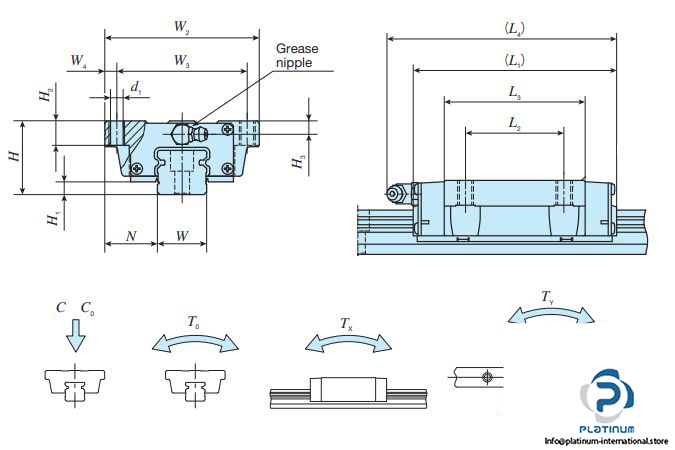

| Series | LWHT |
| Size | 15 mm |
| Dynamic Load Rating | 11600 N |
| Static Load Rating | 13400 N |
| Static Moment Rating X Axis (Tx) | 556 Nm |
| Static Moment Rating Y Axis (Ty) | 556 Nm |
| Static Moment Rating Z Axis (Tz) | 112 Nm |
| Block Type | Flange Type |
| Length of Slide Unit | Long Type |
| Total Height H | 24 mm |
| Block Width W2 | 47 mm |
| Block Length L1 | 66 mm |
| W3 | 38 mm |
| L2 | 30 mm |
| Condition | Used |
| SKU | 1097122 |
| Weight | 0,20 |
