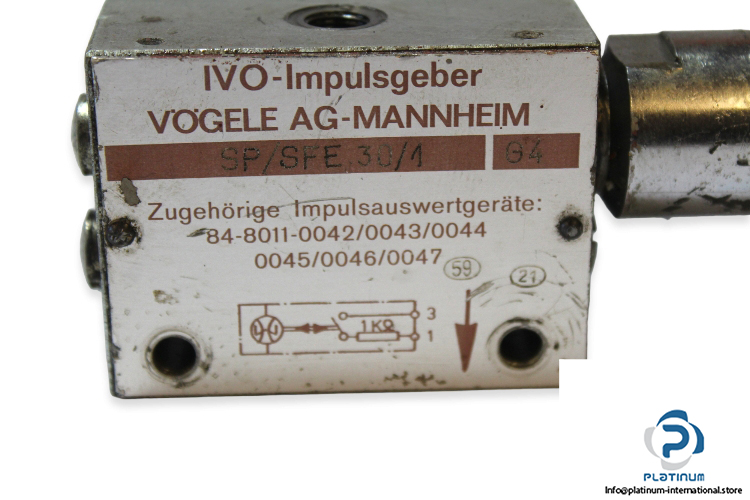

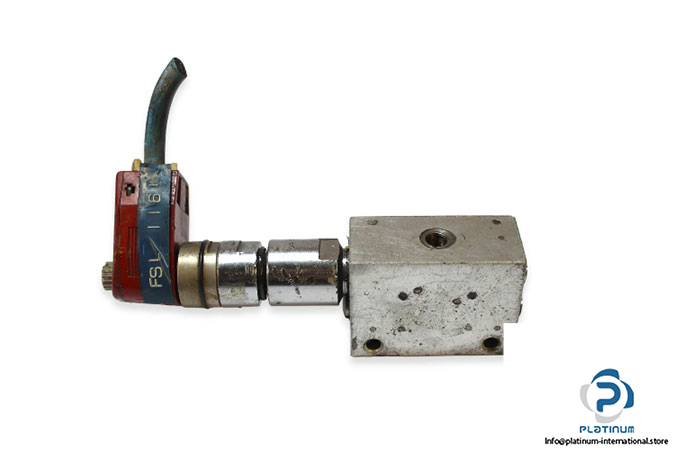

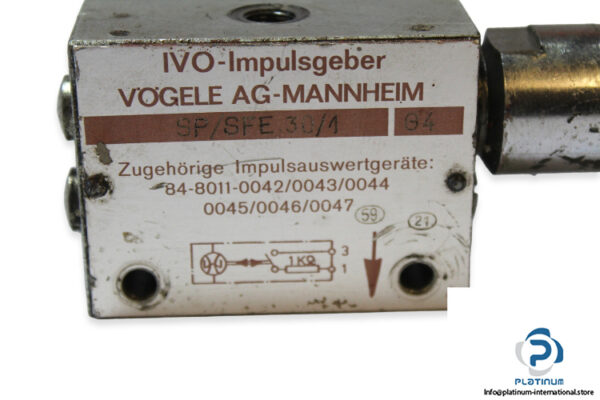

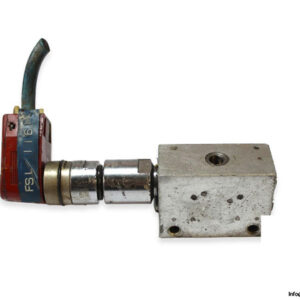

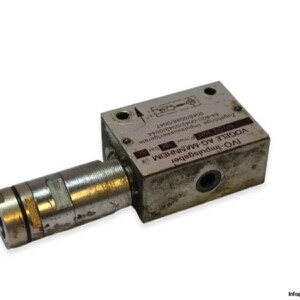

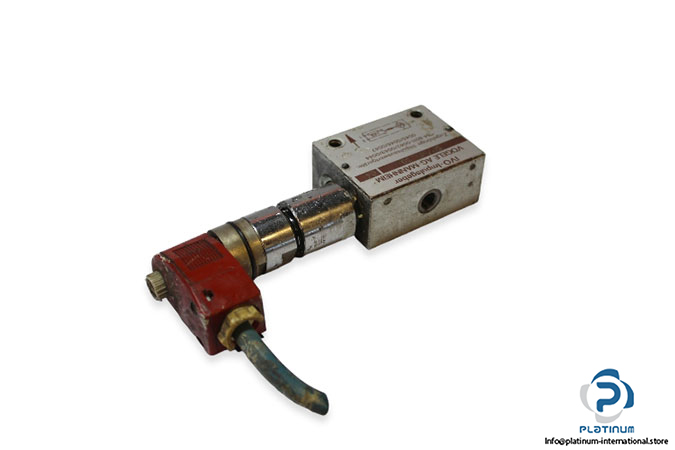

VOGEL SP/SFE 30/1 IVO IMPULSE GENERATOR
The SP/SFE 30/1 impulse generator by Vogel is designed for precise control and monitoring in progressive or multi-line lubrication systems. Engineered with robust sealing and industrial-grade materials, it provides reliable signal transmission even under high-pressure and varying temperature conditions.
Manufacturer: Vogel
Type: IVO Impulse Generator with Electric Plug
Model: SP/SFE 30/1
Associated Pulse Evaluation Devices: 84-8011-0042/0043/0044/0045/0046/0047
Technical Information
- For Use: Progressive or multi-line lubrication systems
- Flow Rate: 0.1 to 50 cm³/min
- Operating Pressure: 600 bar
- Operating Temperature: -15 to +70 °C
- Cable Diameter: 12 mm
- Protection Class: IP65
- Connection Cross-Section: 1.5 mm²
- Switching Power: 10 W for AC/DC
- Switching Voltage: 0 to 30 V
- Dimensions: 65 × 170 × 35 mm
- Lubricant: Oil (min. viscosity 12 mm²/s), Grease NLGI 1
