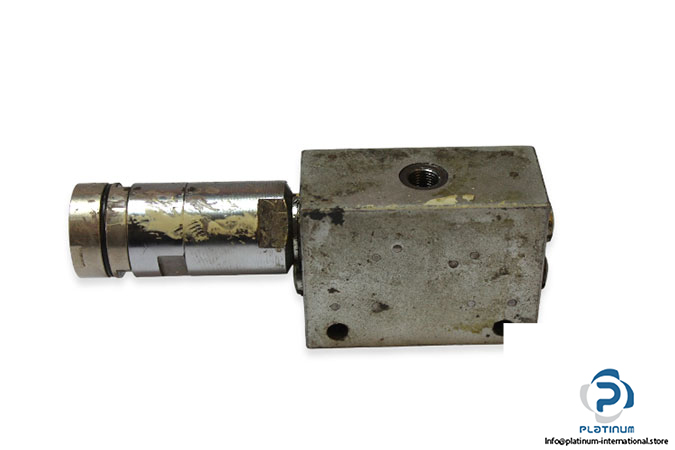

VOGEL SP/SFE 30/1 IVO IMPULSE GENERATOR
The Vogel SP/SFE 30/1 IVO Impulse Generator is engineered for integration into progressive or multi-line lubrication systems. Designed for high-pressure environments, this unit ensures reliable signal generation for pulse evaluation, suitable for both oil and grease lubrication.
Manufacturer: Vogel
Type: IVO Impulse Generator
Model: SP/SFE 30/1

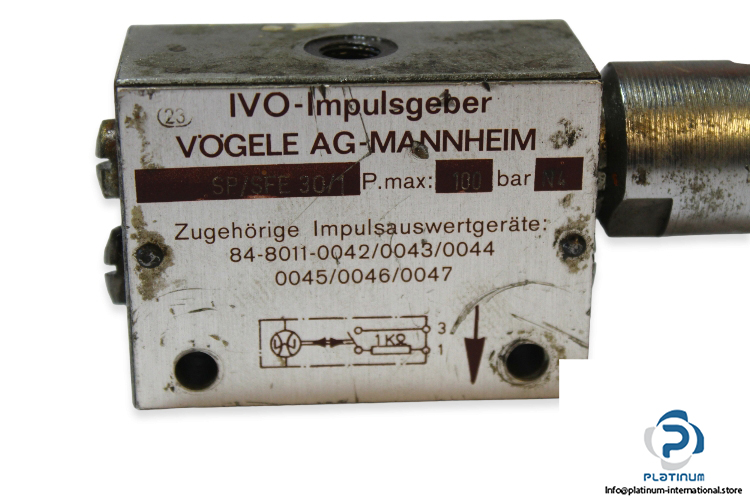

Associated Pulse Evaluation Devices: 84-8011-0042/0043/0044, 0045/0046/0047
| For Use | Progressive or multi-line lubrication systems |
| Volume / Pulse | 0.34 cm³ |
| Flow Rate | 0.1 to 50 cm³/min |
| Operating Pressure | 100 bar |
| Operating Temperature | -15 to +70 °C |
| Cable Diameter | 12 mm |
| Protection Class | IP65 |
| Connection Cross-Section | 1.5 mm² |
| Switching Power | 10 W for AC/DC |
| Switching Voltage | 0 to 30 V |
| Dimensions | 65 × 170 × 35 mm |
| Lubricant | Oil (min. viscosity 12 mm²/s), Grease (NLGI 1) |
