Vogel MFE5-B3-S3+299 Gear Pump Unit
Used
In stock1 unitReady to ship
Gear Pump Unit
A compact gear pump unit designed for single-line centralized lubrication systems, suitable for oil lubrication and equipped with a three-phase motor and integrated pressure monitoring components.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

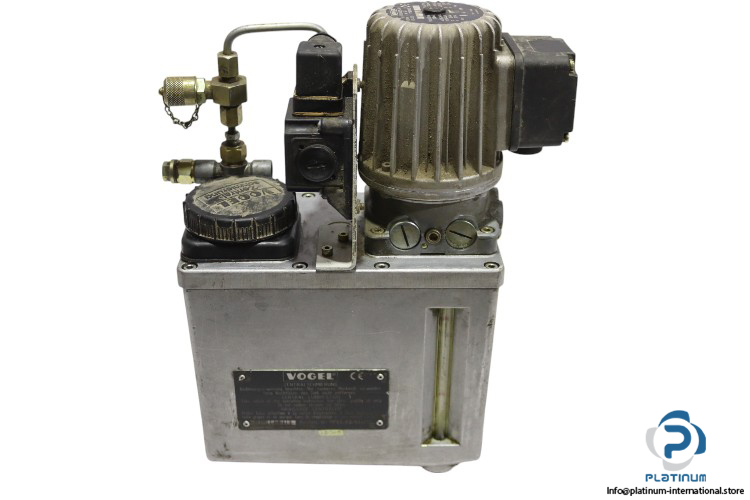

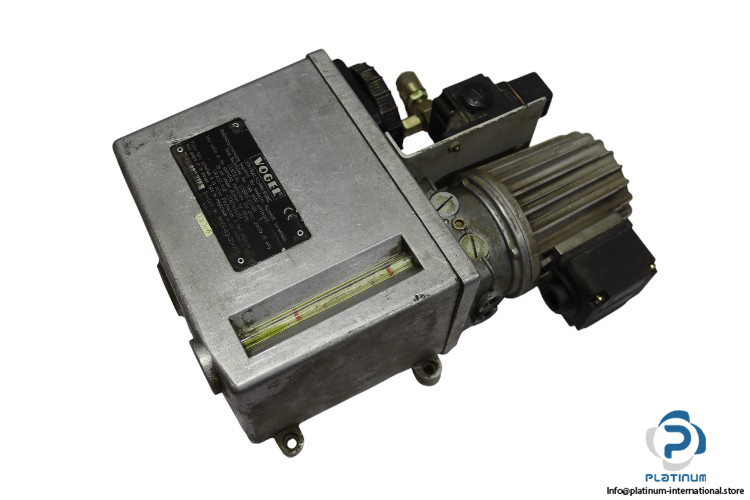

VOGEL MFE5-B3-S3+299 Gear Pump Unit
A compact and reliable gear pump unit designed for single-line centralized lubrication systems. This unit is engineered for oil lubrication applications and integrates a three-phase motor and pressure monitoring components, ensuring consistent performance in industrial lubrication systems. Manufacturer: VOGEL
Type: Gear Pump Unit
Model: MFE5-B3-S3+299

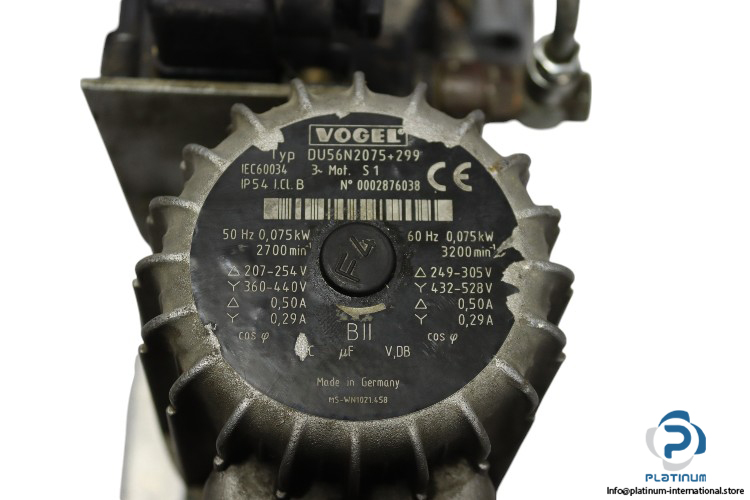

Attached Motor
Motor Ratings at 50 Hz
Motor Ratings at 60 Hz

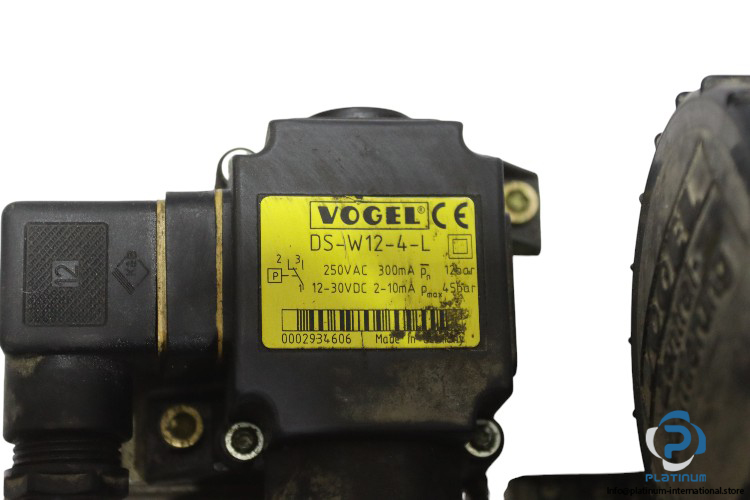

Attached Pressure Switch
| Application | Single-line centralized lubrication systems |
| Lubricant | Oil |
| Reservoir Capacity | 6 Litres |
| Fill Level Monitoring | Optional |
| Connection | G 1/4 |
| Protection Class | IP54 |
| Part No. | 0002876038 |
| Motor Type | Three-Phase Motor |
| Standard | IEC 60034 |
| Rated Frequency | 50/60 Hz |
| Rated Voltage (Star) | 360“440 V |
| Rated Voltage (Delta) | 207“254 V |
| Rated Current (Star) | 0.29 A |
| Rated Current (Delta) | 0.50 A |
| Rated Power | 0.075 kW |
| Rated Speed | 3200 min»¹ |
| Rated Voltage (Star) | 432“528 V |
| Rated Voltage (Delta) | 249“305 V |
| Rated Current (Star) | 0.29 A |
| Rated Current (Delta) | 0.50 A |
| Rated Power | 0.075 kW |
| Rated Speed | 2700 min»¹ |
| Code | 0002934606 |
| Pressure Measuring Range | 12 bar |
| Maximum Pressure | 45 bar |
| Connection | G 1/8, Threaded |
| Electrical Connection | Connection Plug |
| Supply Voltage | 250 V AC |
| Contact Type | Changeover |
| Control Voltage | 12“30 V DC |
| Maximum Operating Temperature | 60 °C |
