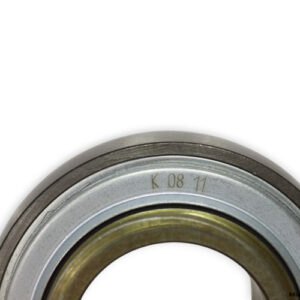

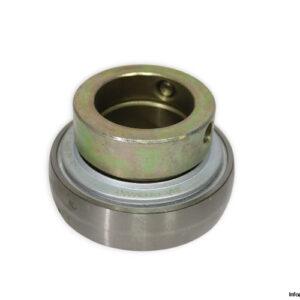

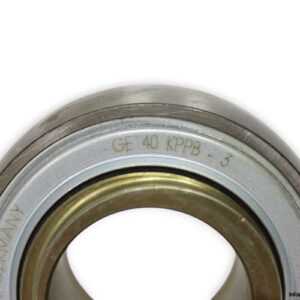

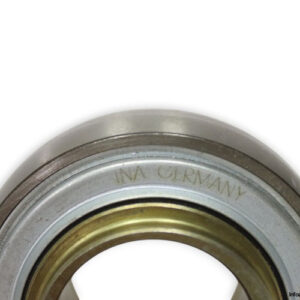

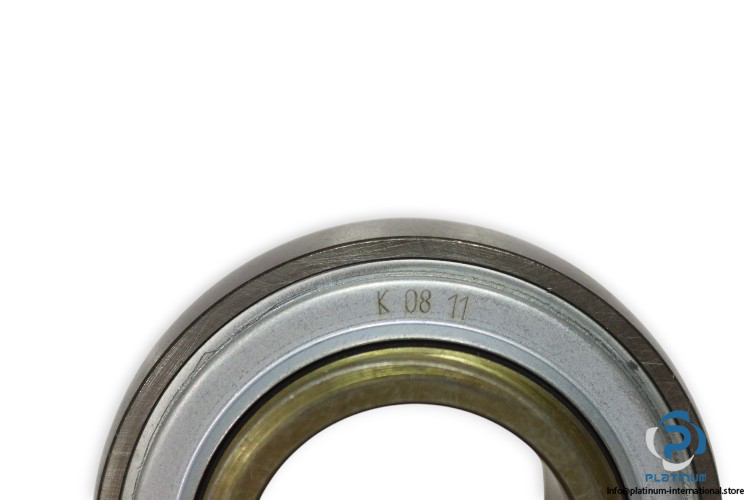

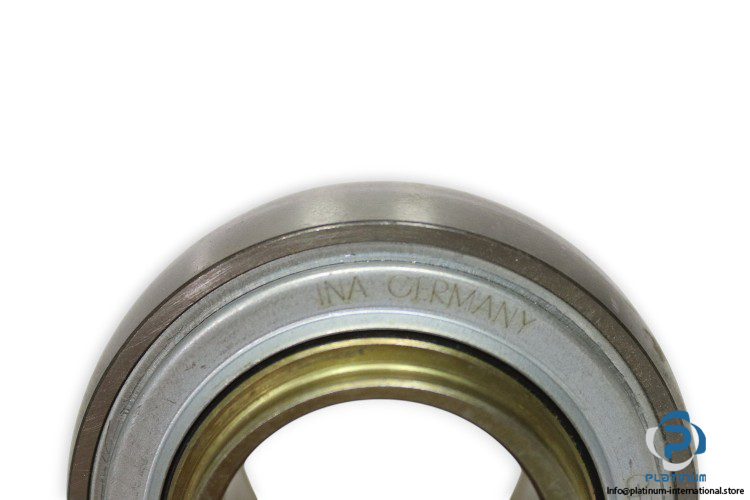

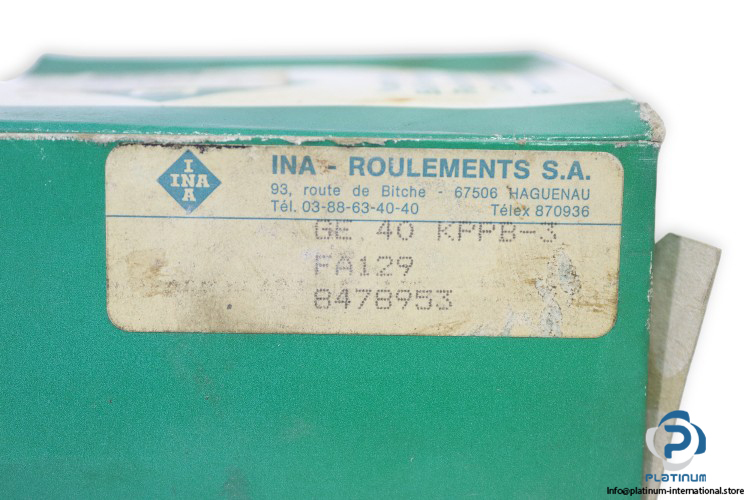

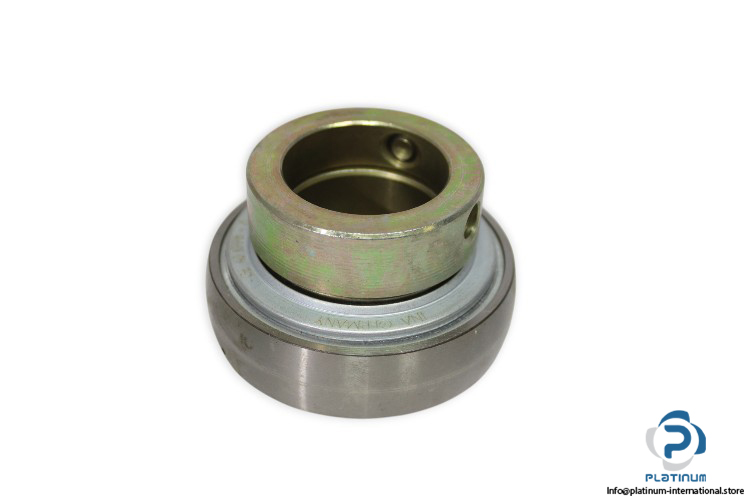

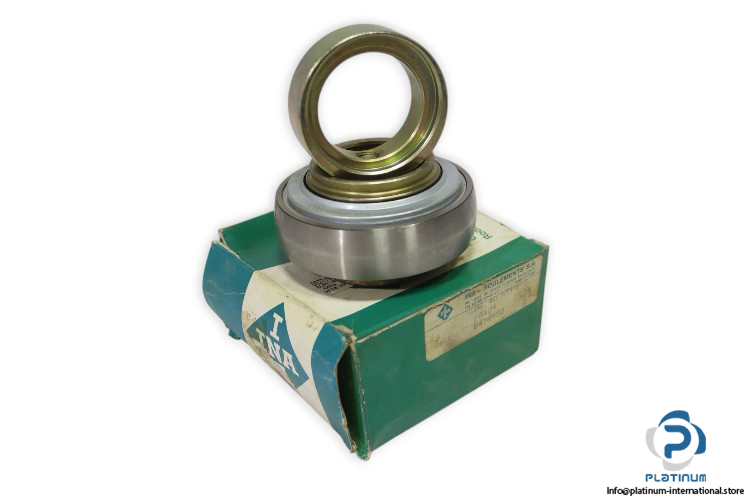

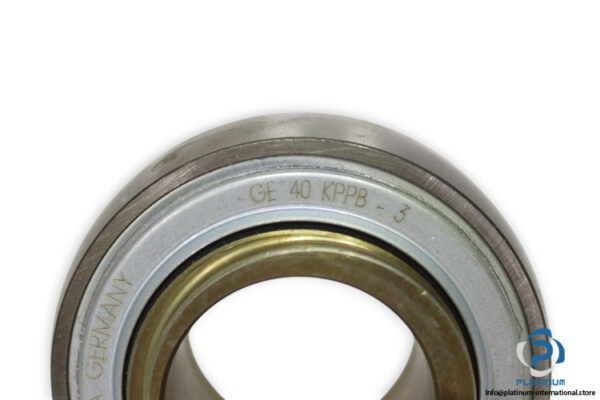

INA / Schaeffler GE.40KPPB-3 Insert Ball Bearing
The INA / Schaeffler GE.40KPPB-3 is a high-quality insert ball bearing designed for robust performance and long service life in industrial applications. It features triple-ply seals on both sides for superior protection against contaminants and excellent grease retention. This bearing offers high load capacity and precise operation, making it ideal for heavy-duty machinery and general mechanical systems.
- Manufacturer: INA / Schaeffler
- Type: Insert Ball Bearing
- Model: GE.40KPPB-3
Technical Information
- Bore Diameter (d): 40 mm
- Outside Diameter (D): 80 mm
- Width (B): 42.9 mm
- Width, Outer Ring (C): 21 mm
- Sealing Total Width (C2): 28.1 mm
- Distance Raceway (S): 21.4 mm
- Rib Diameter Inner Ring (d1): 52.3 mm
- Outside Diameter Seal (D1): 68.3 mm
- Distance to Lubrication Hole (Ca): 6.4 mm
- Outside Diameter Locking Collar / Locknut (d3): 58 mm
- Width of Flats (W): 5 mm
- Fatigue Load Limit, Radial (Cur): 840 N
- Dynamic Load Rating (C): 34,500 N
- Static Load Rating (C0): 19,800 N
- Sealing: KPP-3, triple-ply seal on both sides
